XJ6090 Stone CNC Router Machine Mini/ Mist Sprayer+flume

Jinan XYZ-Tech CNC Equipment Co., Ltd.

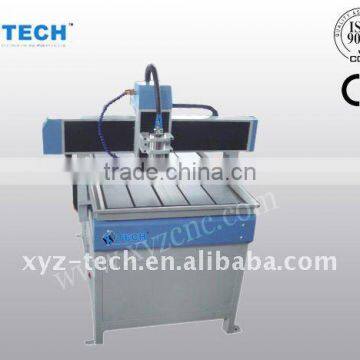

XJ6090 Stone CNC Router Machine Mini/ Mist Sprayer+flume thumbnail-1

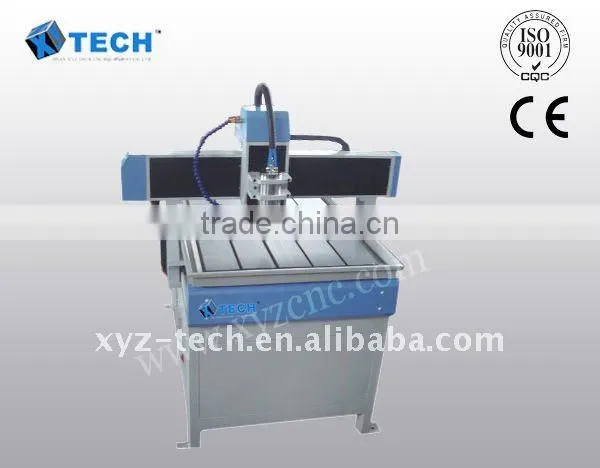

XJ6090 Stone CNC Router Machine Mini/ Mist Sprayer+flume photo-1
US$ 1,000 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
XYZ-TECH
Model Number:
XJ6090
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name XYZ-TECH
Model Number XJ6090
Rated Power 300w
Engraving Speed 9,000mm/min
Main Axle Rotational Speed 0-24000rpm
Feeding Height 110mm or higher
Milling Cutter Diameter 3.175,4mm,6mm
Application wood,metal,plastic,acrylic etc
Dimensions 600*900*80mm or longer
Weight 205kg

Specifications

XJ6090 Stone CNC Router Machine Mini/ Mist sprayer+flume
1.Solid iron cast
2.Solid aluminum gantry support
3.Mist sprayer an

XJ6090 Stone CNC Router  Machine Mini/ Mist sprayer+flume
Application:
Any metal or non-metal material can be processed, for example, iron, copper, aluminum, plastic and wood plates etc.

FEATURES:
  • Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor- type linear guide transmission.
Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
Configured 1.5kw or 2.2kw inverter-driven spindle motor cooled by water
Adopt the most advanced DSP controlling system
Easy operation, sturdy, durable, reliable performance, good price,
*Double nut ball screws for the drive automatically eliminate the gap structure.
*Water-cooled  brushless spindle motor power inverter,

Parameter:
Model: XJ6090 600X900*80mm ( Z-axis travel could be longer as required)
Spindle motor: 1.5KW or  2. 2kw inverter-driven spindle motor cooled by water
Max Motion Speed: 25,000mm/min
Max Engraving speed: 9,000mm/min
Rotation speed of spindle: 24000 RPM
Engraving tools: 3. 175/ 4 /6 mm(optional)
Format dictates: G-code
Drive: Stepper
Ball screw: Two-nut rolling ball screws from Germany
XYZ Guide rail: XYZ round shaft
Motion positioning accuracy: 0.03mm
Resolution: 0. 01mm
High Speed: synchronization of processing curves and straight lines
Massive Memory Capacity: Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease.
Quick Data Transmission: USB interface, work without computer, not occupying computer resources.
Multi-Compatibility: Be compatible with popular CAD / CAM
Software: type 3 / Artcam / Casmate / Proe / UG / Artgrave etc.
Easy Operation: Restore from power off, continuation on break points, anticipates working time, User-friendly designing
Gurantee& aftersales service:
Guarantee for one year
24 hour technical support by email or calling
User friendly english manual and Video CD for machine using and maintenance.
XJ6090 Stone CNC Router Machine Mini/ Mist sprayer+flume
