Specifications
CNC Cutting Machine1 Germany ball screw
2 section portal frame and integral cast iron frame
3 more scientific, more durable

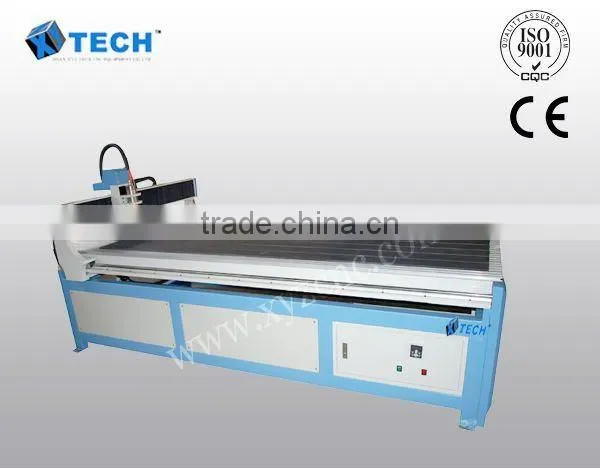

CNC Engraver ,CE Authorized Products,
this is the newest model ,with section portal frame and integral cast iron frame , more scientific to ensure ensure the parallelism ,verticality and concentricity and grestly increase the precision and speed of the engine bed.
Features:
- Integral cast-iron frame, embedded linear, much more stable and solid structure.
- Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
- Configured 1.5kw inverter-driven spindle motor cooled by water
- Adopt the most advanced DSP controlling system
- Easy operation, sturdy, durable, reliable performance, good price,
- Dust-proof ,water-proof , up-down working table ,rotary device ,servo system system are optional
Application field:

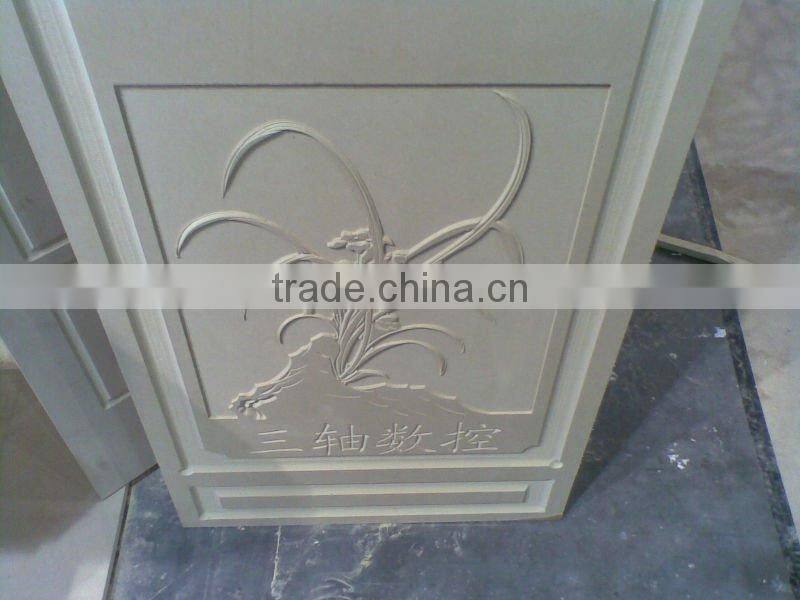

Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial, font mould, mold, sign and label etc..
Parameters:
Model |
XJ-1212 (1200x1200mm) |
Spindle motor |
1.5KW, 2. 2kw inverter-driven spindle motor cooled by water |
Engraving speed |
6000 approximately 12000mm / min |
Rotation speed of spindle |
approximately 24000 RPM |
Engraving tools |
3. 175 4 6 (optional) |
Format dictates |
G-code |
Ball screw |
Two-nut rolling ball screws from Germany |
Resolution |
0. 01mm |
High Speed |
synchronization of processing curves and straight lines can be up to speed of 12m / min |
Massive Memory Capacity |
Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease. |
Quick Data Transmission |
USB interface, work without computer, not occupying computer resources . |
Multi-Compatibility |
Be compatible with popular CAD / CAM |
Software |
type 3 / Artcam / Casmate / Proe / UG / Artgrave etc. |
