Low Price Machine Manufacturers Supply Plasma Steel Metal Cutting Machine

Low Price Machine Manufacturers Supply Plasma Steel Metal Cutting Machine photo-1
Low Price Machine Manufacturers Supply Plasma Steel Metal Cutting Machine photo-2
Low Price Machine Manufacturers Supply Plasma Steel Metal Cutting Machine photo-3
Low Price Machine Manufacturers Supply Plasma Steel Metal Cutting Machine photo-4
Low Price Machine Manufacturers Supply Plasma Steel Metal Cutting Machine photo-5
Low Price Machine Manufacturers Supply Plasma Steel Metal Cutting Machine photo-6
US$ 5,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
XYZ-TECH
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name XYZ-TECH
Model Number XJ-1325
Voltage AC380V/50HZ
Rated Power <3kw
Dimension(L*W*H) 1300X2500mm, 3.16*2.27*1.52m
Weight 1000kgs
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

 low price machine manufacturers supply plasma steel metal cutting machine

Product Description



Parameter

X,Y working area

1300*2500mm

Plasma generator

60/80/100/120/160/200A HWAYuan plasma/65/85/105/125A Hypertherm plasma generator optional

Cutting speed

0-8000mm/min

Driving system

Hiwin Square Guide Rails and Bearings, Helical Rack and Pinion on X,Y Axis

Motor and drive

Stepper motor and drive

Document transmission form

USB Interface

Working Form

Untouched Arc Striking

Working voltage

AC380V(220V,50Hz)

X, Y, Travelling Potioning Accuracy

±0.05/300mm

X, Y, Travelling Repositioning Accuracy

±0.05mm

Operation System

START control system with HC-30 Auto Torch Height Controller

Supported input

G-code

Software

Starcam software for CNC plasma

Package and Packing volume

3100*2050*1700mm in Free-fumigation wooden case

Net and Gross weight

1350KGS



Features and specialties

1.Wholly welded by thick-walled tube, with makes it solid, not out of shape.

2.10mm steel sheet will be fixed on the reasonable designed platform. In case of being destroyed

by the high intensity flame, the highprecision cast iron will be added on the platform. All the

work aims to protect the vertical steel plate. The flatness will be kept between 0-1.5mm.

3. Reasonable slopes leakage of material design, make the finished work piece and scrap

material slopes fell to both sides of the rack feet, safe and convenient.

4. The machine adopts servo motor with servo reducer and high precision rack gear, makes it

working in steady and smoothly.

5. The high precision originate from or Feimate power(optional) and high pressure adjustable arc.

6. Perfect design and good looking cutting surface make it the best suitable choice for all kinds

of thick plates.

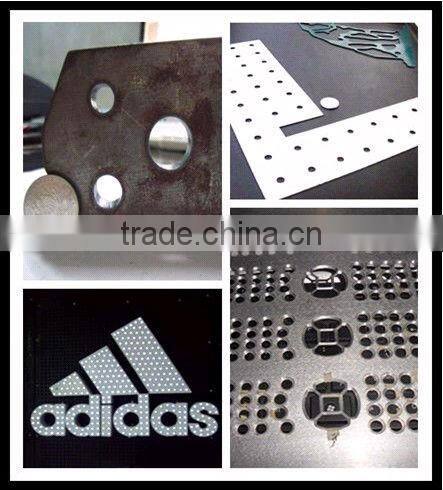

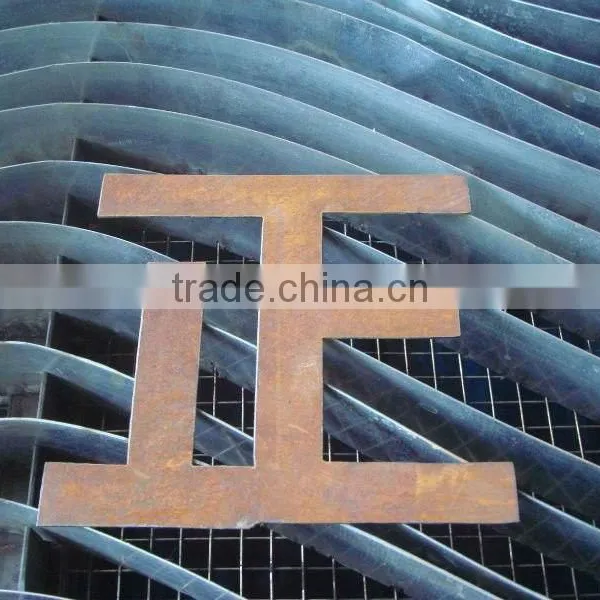

Samples

low price machine manufacturers supply plasma steel metal cutting machine

Packaging & Shipping





Our Services

A. Guarantee for one year

B. 24-hour technical support by email or calling

C. User-friendly English manual for machine using and maintaining

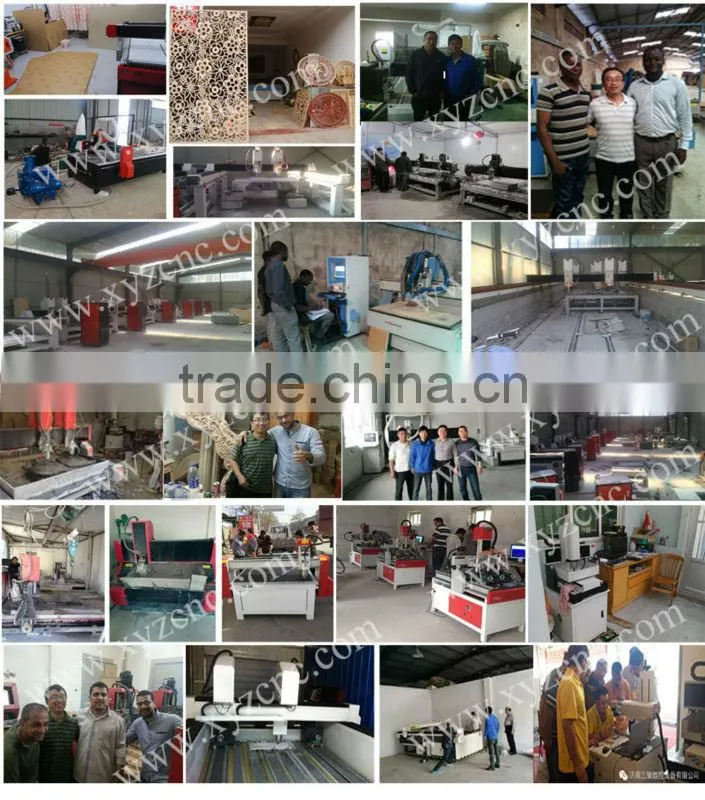

Company Information

We make the high quality advanced machines, provide the best after-sale service in China,

and also offer the most competitive price to all of the customers.

“XYZ-TECH” is known by more and more people. At present, our products have been exported

to many countries and regions such as England, Russia, Brazil, Paraguary, India, Australia, Thailand,

Singapore, Malaysia, China Taiwan, and so on.We have enjoyed the mutual benefit and will move on,

and we hope to establish a long term business relations with more and more oversea customers.



  low price machine manufacturers supply plasma steel metal cutting machine

FAQ

1) This is the first time I use this kind of machine, is it easy operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or skype.

2) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

We will give you 24hours service from phone and skype.

3) MOQ ?

Our MOQ is 1 set machine.

We could send machine to your country port directly, please tell us your port name.

There will be best shipping freight and machine price send to you.
