Jinan XYZ-Tech CNC Equipment Co., Ltd.: Shandong, China; Main products: CNC Router, Plasma Cutting Machine, Laser Engraving Machine

Home > Products > Multifunction CNC Router > 3D Cylinder Engraving and Plane Engraving Double Table 4 Axis Cnc Router

3D Cylinder Engraving and Plane Engraving Double Table 4 Axis Cnc Router

FOB Price

US$ 5,000 - 8,000 / Set

1 Set(Min. Order)

Port china port qindao tianjin shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Shandong, China	Brand Name	XYZ-TECH
Model Number	XJ1325	Voltage	220V/380V 50/60HZ
Power(W)	9.0KW	Dimension(LWH)	350022801800mm
Weight	2000kg	Certification	CE&ISO&BV
Warranty	2 Years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

3D Cylinder engraving and Plane engraving Double table 4 axis cnc router

We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,

plasma cutting machine and cutter plotter, with 16 years production and sales experience

in this field and 12 year export and service experinece for overseas’ buyers.

Product Description

-4pcs*1.5kw water cooling spindle
-1300*2500*100mm Plane engraving
-4pcs* 30cm of diameter rotary axis engraving
-Table can be disassembled, dual-purpose CNC router

-Stone machine Heavy duty lathe bed

Features of cnc wood router:

1). Most economical, most cost-effective
2). metal and nonmetal laser cutting machine.
3). The machine have characteristics : a low investment cost, low operating cost, low maintenance cost .
4). Equidistance optical transmission structure,and Optional metal non-contact servo configuration ,low cost for you to process many materials.
5). The device uses a dual drive configuration imported ball screw and linear guide portfolio, strong stability, high precision, all the core component parts to use and reliable international brands, international brands lasers; optical path fully enclosed, safe and strong;
6). Advanced control software, The unique and independent powerful exhaust system ; this device meet the large-format processing and also suit a majority of enterprises,it improve enterprise efficiency and economic benefits.

7). Max motion/working speed can reach 50m/30m/min
8). Two-motor drive system ensures quick, even, stable operation
9). Highly accurate gears allow for engraving characters as small as 1.5mm
10). The subdivision, stepper motor, and the high power main shaft make the
    machine more efficient 5) The vacuum cleaning system offers a  clean working environment and better quality
11). USB ensures high speed and efficiency
12). The unique calculating system realizes speedy, accurate, curvy operation.

Application of cnc wood router:

1). Nonmetal industries: acrylic products, logo signs, electronics, furniture, toys, flooring, advertising display, gifts, models, industrial panel.
2). Metal cutting industry: sheet metal structure, high and low voltage electrical cabinet making, hardware, tools, advertising signs, metal crafts, decorating, automotive, petrochemical, medical, mechanical parts, electrical meter parts, saw blades, spring-chip and other industries.
3). Metal materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, gold, silver, copper, titanium and other metal plates;
4). Non-metallic materials: acrylic, wood, plastic panels.

Technical specification of cnc wood router:

Model		XJ1325
Working Area		13002500300mm
Working Table		T-slot&PVC table
Framework		Heavy duty lathe bed
Spindle Motor		*4pcs 1.5kw water cooling spindle (2.2kw option)**
Rotary axis		*4pcs 30cm diameter**
Rotating Speed		2,4000rpm
Working Mode		Stepper motor (Servo system option)
Guide Rails		Square linear guide rails for X,Y,Z Axis
Drive Mechanism		Rack Gear for X,Y axis,Z axis ball screw transmission
Repositioning Accuracy		± 0.0254mm
Max Motion Speed		50,000mm/min
Max Engraving Speed		25,000mm/min
Engraving Tools		ER11 collect (Ø12.7mm, Ø6mm)
Dictate Format		G code,uoo,mmg,plt,nc
Interface		USB
Flash Memory		128M
Operating Voltage		220V/380V 50/60HZ
Control System		NC Studio (DSP off-line controller option)
Support Software		Type3/ArtCAM/UcanCAM optional
Net Weight		1800kgs
Gross Weight		2000kgs
Packing Size		320205155cm
Packaging		Standard Plywood Case for Export
Delivery Time		7-15 Working Days
Payment Terms		T/T
Machine Color		Red&white,Red&Black, Blue&white
Optional Parts :(Z axis tool sensor for free,below choose according to your need)
Optional Parts	Vacuum table&pump(5.5kw/7.5kw)
	Dust collector
	DSP off-line controller
	Rotary device dia.100/200mm
	Lubrication system (Manual or Auto)

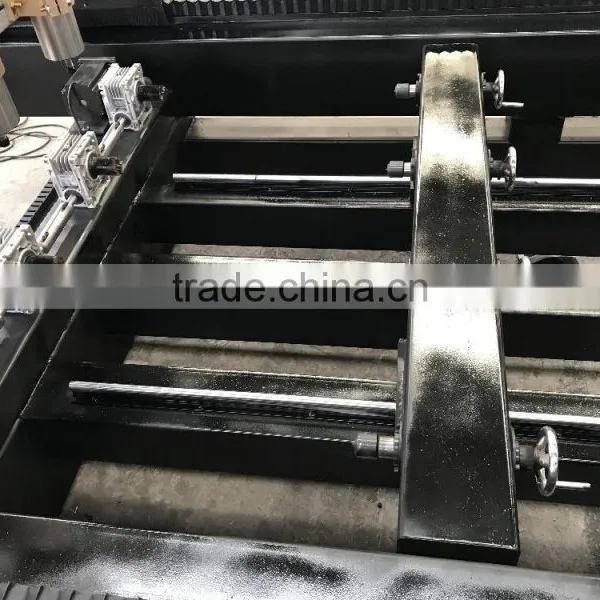

Sample picture:

Packaging & Shipping

Company Information

Our factory:

We started to produce Mechanical and Laser Engraving Machine in 1994.

Nearly 20 years rich experience in producing saling and service ensures you high quality machine

and perfect service.

Our Export Percentage up to 81%~90%.

OEM Service Offered Design Service Offered Buyer Label Offered .

Our Services

Guarantee & Aftersales Service:

1.Guarantee for one year

2.24-hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.

payment

A:T/T:30% T/T deposite,70% before shippment.
This is the most convinent payment terms for international trade.

B: Escrow of alibaba. It is a third party payment terms.
1) You pay money to alibaba.
2) We prepare your machine production.
3) After your production,we would tell you timely,then you click the button"agree to ship".
4) We ship it.
5) After dispatch,we show documents to Alibaba,Alibaba would ask your agreements for money r elease to our company.
6) After your agreement,Alibaba would pay your money to us.
Your money is safe in alibaba before your agreement of money release.And During this process,alibaba stuff would contact you and us..

FAQ

Questions and answer:

Q1.how to get the most suitable machine and best price

please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2: Do you have the manual of machine.

Yes,we have

Q3.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q4.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.

Q5.How about your guarantee period?

one year and during the time,if you have any questions ,we will solve it for free.

If you want to know more machine details or prices or videos,

please don't hesitate to contact me.
