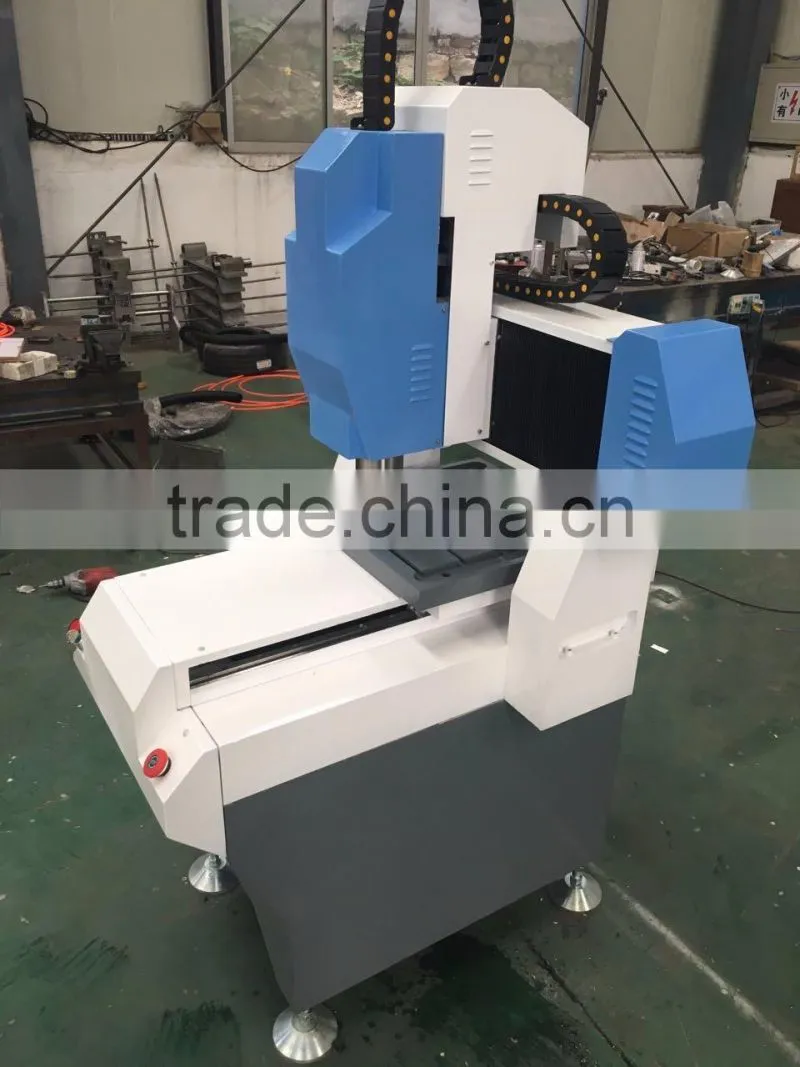

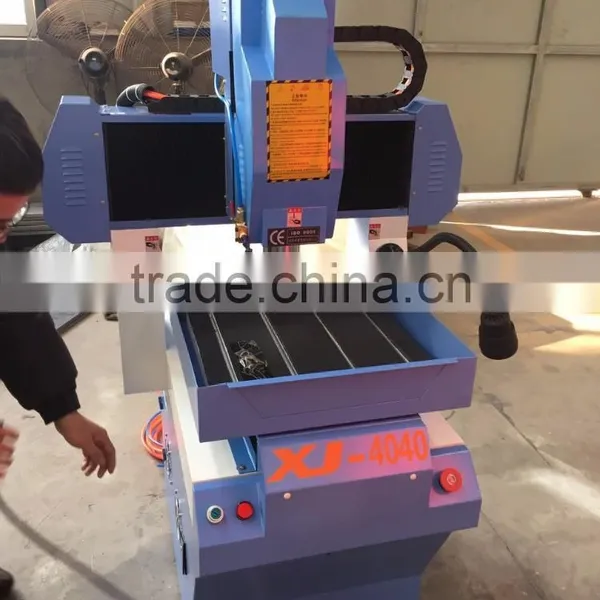

2017 TOP ONE High precision small stone marble copper aluminum CNC Router
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,
plasma cutting machine and cutter plotter, with 16 years production and sales experience
in this field and 11 year export and service experinece for overseas’ buyers.
1. Aluminum cast wholly frame,double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.2.High power water cooling brudless motor,more forceful cutting capability,wear well.
3.High speed driver and stepper motor could enhance easy maintenance.
4.Advanced in CNC industry,break-point memory for 10pcs,reducing material waste.
5.High compatibility,applicable for CNC soft ware:Type3,Artcam,Castmate,Pore,Wentai,variable CAD/CAM etc.It is easily to process relief sculpture,shadow carving,three dimension characters in fancy style etc.
Technical specification of cnc wood router:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
400x400x100mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
4 |
Lathe Structure |
Cast iron lathe bed |
5 |
X, Y, Z Structure |
HIWIN Square rail |
6 |
X, Y, Z transmission |
TBI Ball Screw |
7 |
Max.Consume power |
3.0Kw |
8 |
Max.Motion Speed |
0-1500mm/min |
9 |
Max.Working Speed |
0-8000mm/min |
10 |
Spindle Power Motor |
1.5kw water-cooling spindle |
11 |
Spindle Speed |
0-24000RPM |
12 |
Working Mode |
Stepper Motor |
13 |
Command |
G code, *uoo, *mmg, *plt,*nc |
14 |
Collet |
ER11 |
15 |
Resolution |
<0.01mm |
16 |
Software |
Type3/Ucancam V9/Artcam |
17 |
Control system |
NC studio or DSP offline |
18 |
Operating System |
DSP System |
19 |
Interface |
USB |
20 |
Flash Memory |
128M |
21 |
Working Voltage |
AC220V, 50/60Hz |
22 |
Running circumstance |
Temperature: 0°C~45°CRelative humidity: 30%~75% |
23 |
Packing Size |
1.5x1.2x1.8m |
24 |
Net Weight |
700KG |
25 |
Gross Weight |
800KG |
All parameters above subject to change without prior notice | ||
Packing picture:

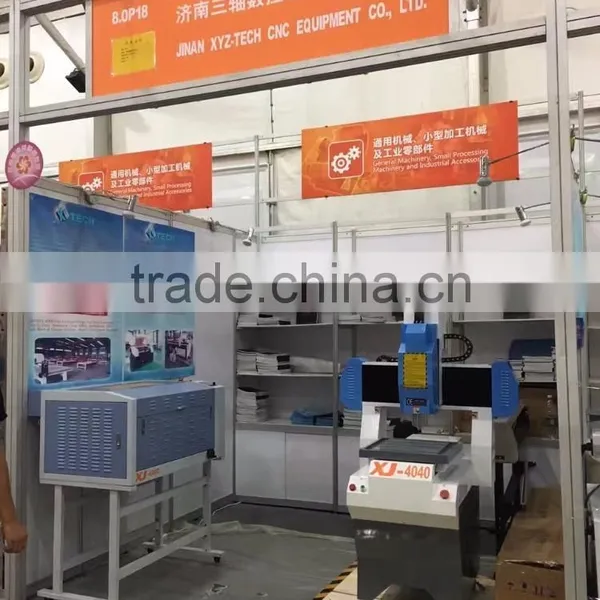

Our factory:
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
