multi-step atc woodworking machine cnc router for wooden mdf cabinet door
XYZTECH CO.,LTD.was established in 1994 as manufacturer of cnc router ,laser engraving machine and laser cutting machine,with 16 years production and sales experience in this field and 9 year
export and service experience for overseas’ buyers.
Feature
1.We can make this machine with 2 /3/4 spindle as your detail demand.
2.This is the 3-spindle machine, each spindle with different tools, so if you will finish your products after 3 times tool change , using this machine will save the time for tool change.

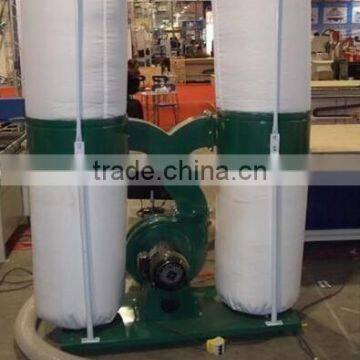

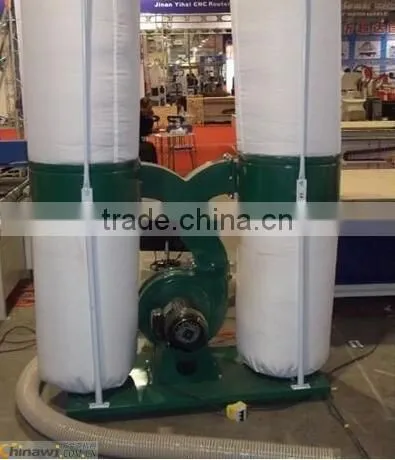

3.Dust collector.

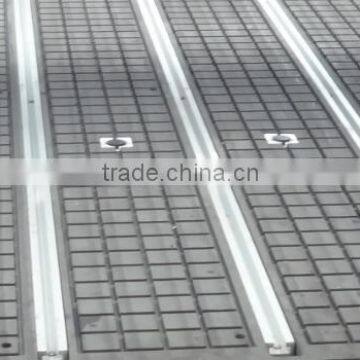

4.Vacuum table.
5.Restoring form power off and saving from break point.
Application
Woodworking industry:wooden furniture ,door ,cabinet door,chair and so on.
Musical Instrument Industry:Three dimensional surface can be carved musical instruments ,shape cutting.
Material:plastic,aluminum,copper,acrylic ,wood ,MDF and etc.
Parameter
| Model | XJ1325 |
| Working area | 1300*2500*200MM |
| Table structure | Vacuum table with T-slot together working table |
| Machine accuracy | <0.05/300mm |
| Max air moving speed | 50,000mm/min |
| Max working speed | 25,000mm/min |
| Spindle power | 3.5-4.5-3.5kw HQD air cooling spindle |
| Spindle speed | 0-18000PRM |
| Transmission | X,Y rack gear, z ball screw |
| Guide rail | Taiwan HIWIN Square linear rail |
| Driver | Chuangwei Drivers |
| Motors | Chuangwei CW860 Servo motor |
| Inverter | FULING inverter |
| Cleaning system | 2.2kw one bag dust collector |
| Vacuum system | 5.5kw circulating water type vacuum pump |
Voltage | 380v 50 60HZ,3 phrase |
| Command code | G code |
| Compatible Software | TYPE3/JDpaint |
| Control system | NCstudio53c5 controller system |
| Oiling system Automatic | Yes |
We never lie to our customers.
We always thinking one thing: what should we do so that problems can be avoided.
All products have CE. 9year gold supplier on alibaba
