1325 cnc gantry drilling milling cutter engraver wood acrylic MDF multi spindle cnc router
XYZTECH CO.,LTD.was established in 2005 as manufacturer of cnc router ,laser cutting engraving machine,plasma cutting machine and cutter plotter with 11 years production and sales experiencein this field and 10 year export and service experience
for overseas’ buyers.
Feature

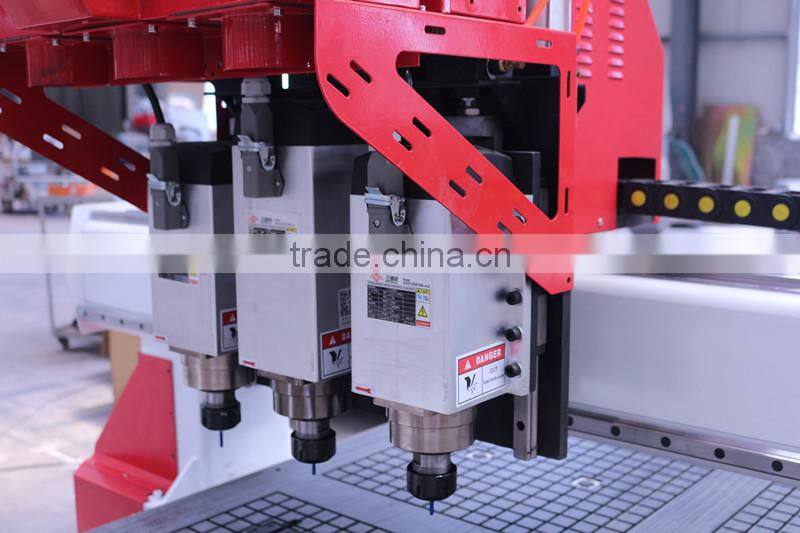

1.We can make this machine with 2 /3/4 spindle as your detail demand.
2.This is the 3-spindle machine, each spindle with different tools, using this machine will save the time for tool change.
3. The distance between spindles can be adjusted according to the working pieces being processed
3. It is possible to start any one of the heads only
5. Spindle power is selected according to customer’s requirements
6. Rotary attachment is optional, which enable the machine to engrave on column work pieces like table leg
Application
Woodworking industry:wooden furniture ,door ,cabinet door,chair and so on.
Musical Instrument Industry:Three dimensional surface can be carved musical instruments ,shape cutting.
Material:plastic,aluminum,copper,acrylic ,wood ,MDF and etc.
Parameter
| Model | XJ1325 |
| Working area | 1300*2500*200MM |
| Table structure | Vacuum table with T-slot together working table |
| Lathe structure | welded steel thick tube |
| Machine accuracy | <0.05/300mm |
| Max air moving speed | 50,000mm/min |
| Max working speed | 25,000mm/min |
| Spindle power | 3.5-4.5-3.5kw HQD air cooling spindle |
| Spindle speed | 0-18000PRM |
| Transmission | X,Y rack gear, z ball screw |
| Guide rail | Taiwan HIWIN Square linear rail |
| Driver | Chuangwei Servo Drivers |
| Motors | Chuangwei CW860 Servo motor |
| Inverter | FULING inverter |
| Cleaning system | 2.2kw one bag dust collector |
| Vacuum system | 5.5kw circulating water type vacuum pump |
Voltage | 380v 50 60HZ,3 phrase |
| Command code | G code |
| Compatible Software | TYPE3/JDpaint |
| Control system | NCstudio53c5 controller system |
| Oiling system Automatic | Yes |
Detail
welded steel thick tube
HQD air cooling spindle
Dust collector
Sample:
We never lie to our customers.
We always thinking one thing: what should we do so that problems can be avoided.
All products have CE. 9year gold supplier on alibaba
