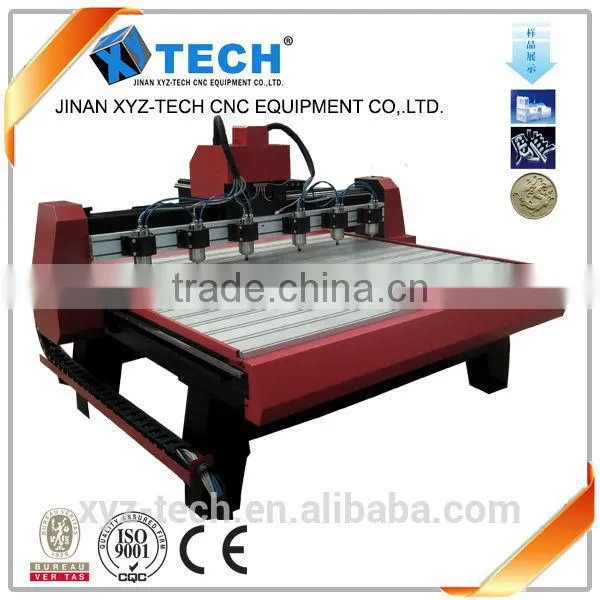

Wood Germany Multi Head Foam Cutting Cnc Router Sculpture Wood Carving Cnc Router Machine

Wood Germany Multi Head Foam Cutting Cnc Router Sculpture Wood Carving Cnc Router Machine thumbnail-1
Wood Germany Multi Head Foam Cutting Cnc Router Sculpture Wood Carving Cnc Router Machine thumbnail-2
Wood Germany Multi Head Foam Cutting Cnc Router Sculpture Wood Carving Cnc Router Machine photo-1
Wood Germany Multi Head Foam Cutting Cnc Router Sculpture Wood Carving Cnc Router Machine photo-2
US$ 2,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan XYZ-Tech CNC Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china port qindao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name XYZ-TECH
Model Number XJ1218 ATC cnc router
Voltage 220V/380V 50/60HZ
Power(W) 9.0kw
Dimension(L*W*H) 3250*1850*1790mm
Weight 1450KG
Certification BV&ISO&CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

cnc wireless router configuration table top shopbot cnc router for sale 3d cnc router




Technical specification of cnc wood router:



NO.

Description

Parameter

1

X,Y,Z Working Area

1200x1200x100mm

1200x1800*100mm

1200x2400x100mm

2

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z repositioning Positioning Accuracy

±0.05mm

4

Lathe Structure

Cast Iron

5

X, Y,Z Structure

Round rails

6

X,Y,Z Transmission

Ball Screw

7

Max. Consume Power

3.5Kw

8

Max. Motion Speed

0-6000mm/min

9

Max. Working Speed

0-3000mm/min

10

Spindle Power Motor

1.5kw water-cooling spindle

11

Spindle Speed

0-24000RPM

12

Drive Mode

Stepper Motor

13

Collet

ER11

14

Command

G Code, *uoo, *mmg, *plt,*nc

15

Control system

NC Studio or DSP control

16

Interface

USB

17

Flash Memory

128M

18

Resolution

<0.01mm

19

Software

Type3/Ucancam/Artcam

20

Working Voltage

AC220V/380V, 50/60Hz

21

Running circumstance

Temperature: 0℃~45℃

Relative humidity: 30%~75%

22

Packing Size

1820x1860x1550mm

2200x1900x2000mm

3140x2130x1520mm

23

Net Weight

370KG

400KG

560KG

24

Gross Weight

420KG

460KG

700KG

All parameters above subject to change without prior notice





Guarantee & Aftersales Service of cnc wood router:

Guarantee for one year

24-hour technical support by email or calling

User-friendly English manual and Video CD for machine using and maintaining

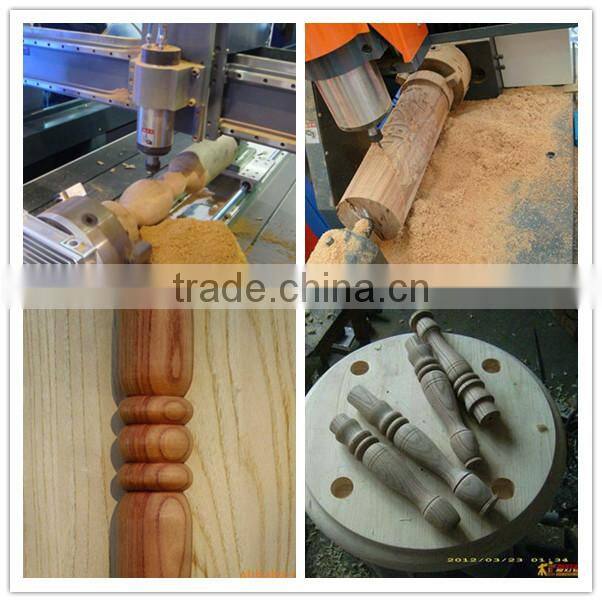

Sample picture:

wood germany multi head foam cutting cnc router sculpture wood carving cnc router machinewood germany multi head foam cutting cnc router sculpture wood carving cnc router machine





Packing picture:

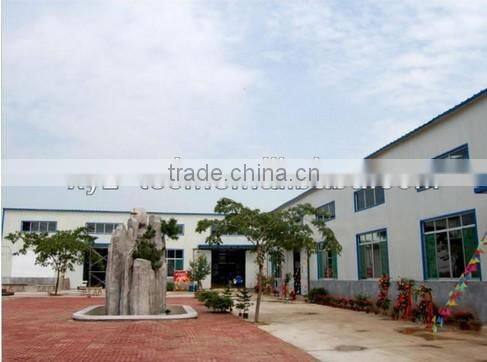

Our factory:



We started to produce Mechanical and Laser Engraving Machine in 1994.



Nearly 20 years rich experience in producing saling and service ensures you high quality machine



and perfect service.



Our Export Percentage up to 81%~90%.



OEM Service Offered   Design Service Offered   Buyer Label Offered .

wood germany multi head foam cutting cnc router sculpture wood carving cnc router machine







Guarantee & Aftersales Service:



1.Guarantee for one year



2.24-hour technical support by email or calling



3.User-friendly English manual for machine using and maintaining



4.Free technician training for large customers.







Questions and answer:



Q1.how to get the most suitable machine and best price



please tell the  material you want to working on ?



 How to working on it ? Engraving ? Cutting ? Or other ?



What’s the MAX size of these material ?( length ? Width ? Thickness ?)



Q2: Do you have the manual of machine.



Yes,we have



Q3.If we donot know how to use the machine,can you teach us?



Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.



Q4.How about your after-sales service?



we offer you 24 hours service phone,skype or MSN.



Q5.How about your guarantee period?



one year and during the time,if you have  any questions ,we will solve it for free.
