Multi Spindle Engraving Machine Cnc Router Double Heads Best Price Wood Door Making Machine Cnc Router Machine

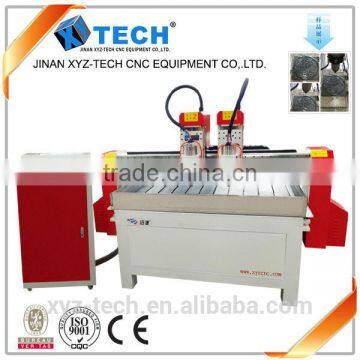

Multi Spindle Engraving Machine Cnc Router Double Heads Best Price Wood Door Making Machine Cnc Router Machine photo-1
Multi Spindle Engraving Machine Cnc Router Double Heads Best Price Wood Door Making Machine Cnc Router Machine photo-2
Multi Spindle Engraving Machine Cnc Router Double Heads Best Price Wood Door Making Machine Cnc Router Machine photo-3

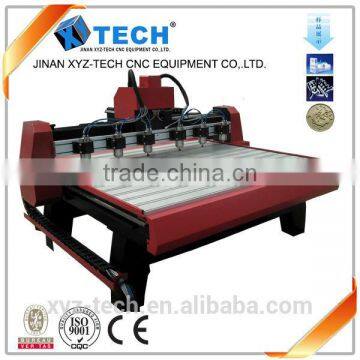

Multi Spindle Engraving Machine Cnc Router Double Heads Best Price Wood Door Making Machine Cnc Router Machine photo-4
US$ 200 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
china port qindao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name XYZ-TECH
Model Number XJ1325 ATC cnc router
Voltage 220V/380V 50/60HZ
Power(W) 9.0kw
Dimension(L*W*H) 3350*1950*1990mm
Weight 1450KG
Certification BV&ISO&CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

China jinan wood stair wood door sculpture engraving cutting wood carving cnc router machine

We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,

plasma cutting machine and cutter plotter, with 16 years production and sales experience

in this field and 10 year export and service experinece for overseas’ buyers.

Product Description

 cnc woodworking machinery Features and specialties:

1) Intergrated optimized design and high quality alumium alloy frame, which ensure solid and warp-proof.
2) Unspace ballscrew using Germany technology, aligning with high power driving motor and imported coupling, that make movement stable and work precise in a long time.
3) High power non-brushing motor, N-CVT, power saving, lower noise, strong cutting capability,which ensure a batch process for a long time.
4) Restoring function enable the machine stop running automatically while power off, and automatically restart to work when power on, and also can store the break point from which for later operation to start,with the function of anticipating working time, auto tool sensor, the roating speed and processing depth could be adjusted optionally.

5) Double spindles:work more quickly, Two times the work efficiency



cnc woodworking machinery price Applicable Materials

Wood, acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum

Technical specification of cnc router:

Model

XJ1224

XJ1325

Working Area

1200*2400*150mm

1300*2500*200mm

Working Table

T-slot&PVC table

Framework

Thick Steel pipe welding

Heavy duty lathe bed

Spindle Motor

3kw water cooling spindle (4.5/5.5/6kw option)

Rotating Speed

2,4000rpm

Working Mode

Stepper motor (Servo system option)

Guide Rails

Square linear guide rails for X,Y,Z Axis

Drive Mechanism

Rack Gear for X,Y axis,Z axis ball screw transmission

Repositioning Accuracy

± 0.0254mm

Max Motion Speed

50,000mm/min

Max Engraving Speed

25,000mm/min

Engraving Tools

ER20 collect (Ø12.7mm, Ø6mm)

Dictate Format

G code,*uoo,*mmg,*plt,*nc

Interface

USB

Flash Memory

128M

Operating Voltage

220V/380V 50/60HZ

Control System

NC Studio (DSP off-line controller option)

Support Software

Type3/ArtCAM/UcanCAM optional

Net Weight

600kgs

Gross Weight

700kgs

Packing Size

320*205*155cm

Packaging

Standard Plywood Case for Export

Delivery Time

7-15 Working Days

Payment Terms

T/T

Machine Color

Red&white,Red&Black, Blue&white

Optional Parts    :(Z axis tool sensor for free,below choose according to your need)





Optional Parts



Vacuum table&pump(5.5kw/7.5kw)

Dust collector

DSP off-line controller

Rotary device dia.100/200mm

Lubrication system (Manual or Auto)

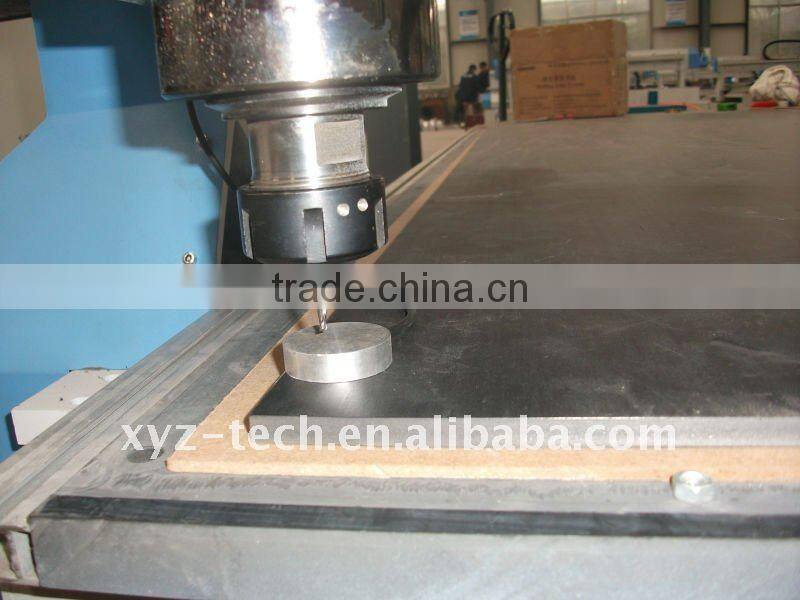

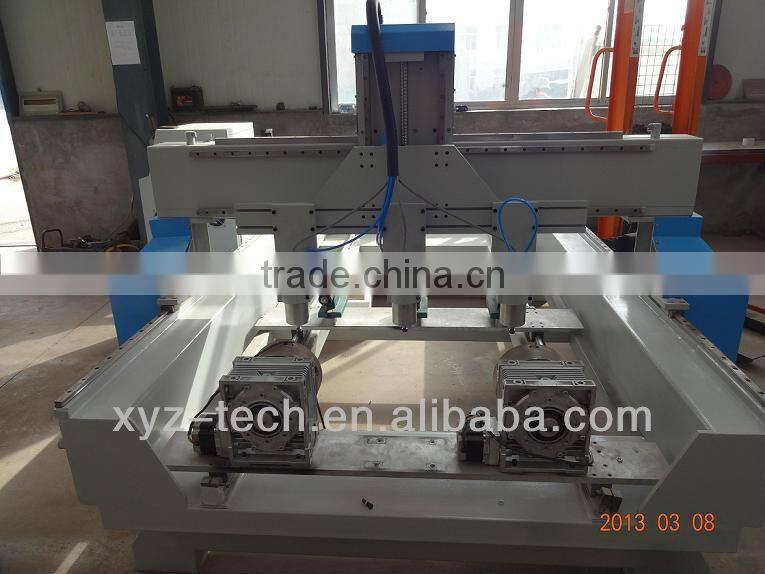

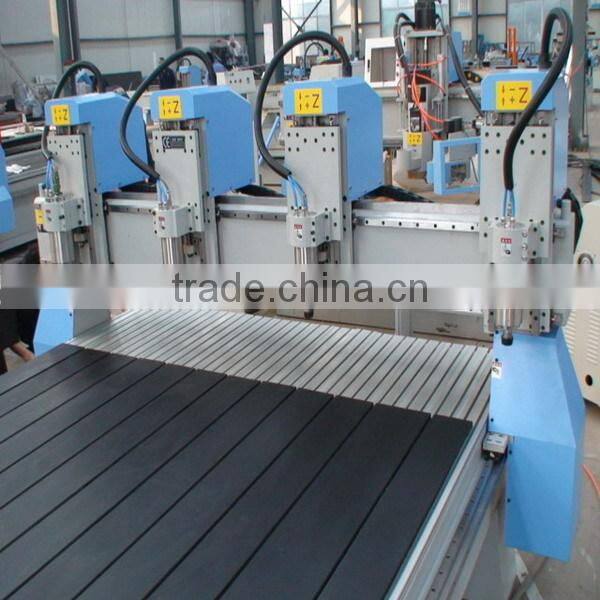

Sample picture:













Packaging & Shipping

 Packing picture:



Company Information

 Our factory:

We started to produce Mechanical and Laser Engraving Machine in 1994.

Nearly 20 years rich experience in producing saling and service ensures you high quality machine

and perfect service.

Our Export Percentage up to 81%~90%.

OEM Service Offered   Design Service Offered   Buyer Label Offered .







Our Services

 Guarantee & Aftersales Service:

1.Guarantee for one year

2.24-hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.



FAQ



 Questions and answer:

Q1.how to get the most suitable machine and best price

please tell the  material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)



Q2: Do you have the manual of machine.

Yes,we have



Q3.If we donot know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.



Q4.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.



Q5.How about your guarantee period?

one year and during the time,if you have  any questions ,we will solve it for free.
