Specifications
1.Factory supply directly,best price2.machine with T- structure bed,3kw water cooled spindle,DSP or NCStudio controller system
Hight quality cnc engraving machine (Equip 2~10 spindles)

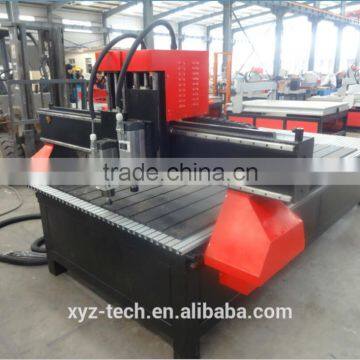

Machine clearly picture:
Machine specification list:
Model: | XYZ-1325 |
Structure: | Heavy T-structure machine bed |
Table: | PVC With t slot |
XYZ working size: | 1300*2500*200mm |
XYZ transmission: | XY axis is rack and pinion,Z axis Ball Screw |
XYZ guide rail: | Famous Taiwan Hiwin Line Square guide way |
Max.Speed: | 60m/min |
Max.Working speed: | 50m/min |
Spindle: | 3.5kw air cooling spindle,speed :24000rpm/min |
Collets: | ER20 |
Inverter: | Well known Fuling 3.7kw |
Motor: | Step motor |
Driver: | Leadshine860 |
Controller system: | 3axis DSP controller system(ncstudio for optional) |
Voltage: | 380v/220v 50hz 3 phase/single phase |
Software: | Artcam/ucancam/type3 |
Router bits: | 15pcs for free |
Machine advantage:
1.Heavy duty body.Casted structure.
3.XYZ guide rail use 20mm HIWIN linear square guide rail, it is more stable and has longer life than the normal round one or hinese one.
4.High-performance driven motor to ensure the machine’s high speed and accuracy
5. Z axis uses 25mm high precision ball screw and can avoid spindle suddenly up and down.
6.CE and iso certification, quality guarantee
7.Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
8. Equipmentped with 2 to 10 heads; the machine one time can complete the wokings done by several machines,to save cost and improve theworking efficiency.
9.the distance between heads can be adjusted according to the working pieces being processed, it is possible to start any one of the heads only

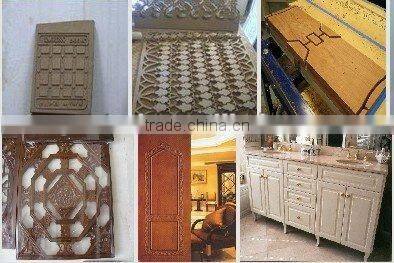

Machine working sample:
Inner package: strech film
Outside Package: Free fumigation wooden case for export
Shipping: by ship from QINGDAO to Your port.
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service. Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
Gurantee:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
CE Certificate:
ISO Certificate:
If we donot know how to use the machine,can you teach us?
Yes,we will ,In general ,we have detailed machine manual, if you still can't use machine, you come to China to our factory,we will offer you free training until you can use machine freely.
And if you are busy ,we will have the special engineer to your country,but you need to bear some feelike tickets and hotel and meal.
