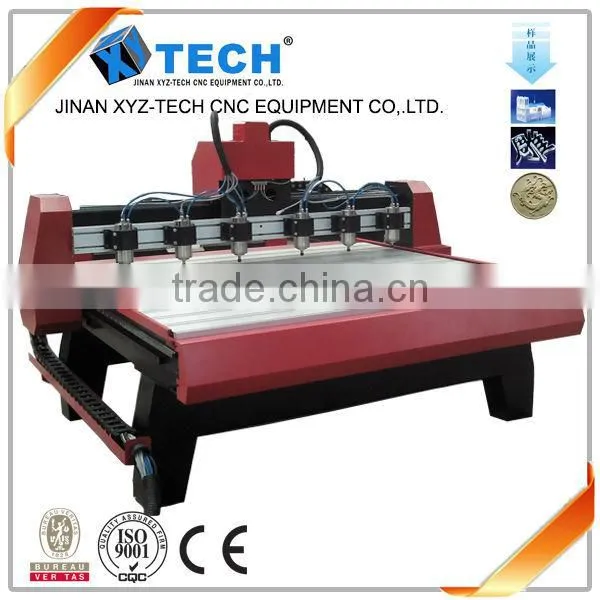

1800*2500*200mm multi-spindle/multi-heads Wood CNC Router Machine for batch production
- Qingdao/Shanghai/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Italy hot sale multi-spindles cnc machine for wood(2~10 spindles)
-
XJ3636 CNC jade and metal cutting router with CE
-
Stone machine/stone engraving machine
-
1318 three spindles wood cnc router
-
china good quality multi-spindle cnc router machine 1615 1625 with 6 spindles
-
XJ1218D 6 axis cnc router machine
Product Details
Condition | New | CNC or Not | CNC | |
Place of Origin | Shandong, China | Brand Name | XYZ-TECH | |
Model Number | XJ1825 | Voltage | AC220V/380V/ 50HZ | |
Power(W) | up to the configuration | Dimension(L*W*H) | 3.15*2.05*1.5m | |
Weight | 1200KGS | Certification | CE/ISO Certificate | |
Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1800*2500*200mm multi-spindles/multi-heads wood cnc router machine for batch production
Advantage!!!
Six heads can be processed at the same time ,also can be used separately, compared with the one , six heads will greatly increase the efficiency;Use of the breakpoint memory, guaranteed in the accident (blackout) or the next day, to continue processing.
cnc router wood features:

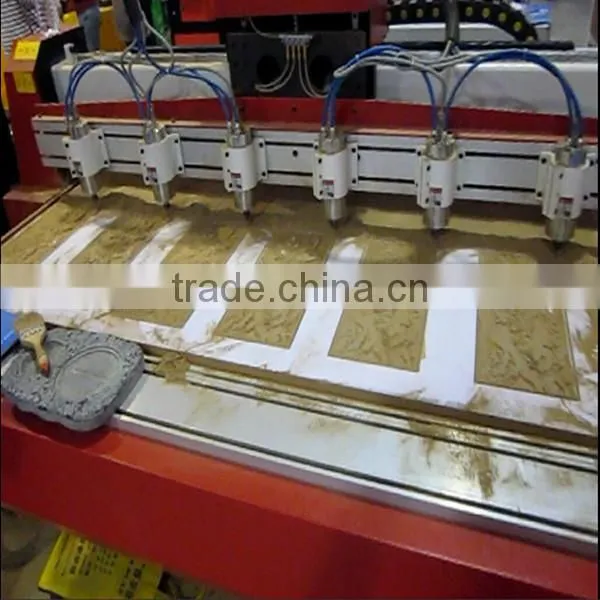

1.The heads can work synchronously, process six exact same products, more effective
2.Lathe body welded by seamless steel,with Vibratory Stress Relief,difficult to deform
3. X,Y,Z axes transmission method is rack and pinon,it`s rapid and effective
4. Excellent compatibility. It will be compatible with most software such as TYPE3/Artcam/ Castmate/UG/Powermille etc.
5. gantry can be moved , it is able to process a large number of little-size products
T-slot machine table,machine includes a heavy-duty aluminum T-slot profile in multiple locations across the table surface.This T-slot accepts industry standard M8 T-nuts.
Assembled with linear square guide rail & dual-nut anti-gap rod ball screw
The XY drives include a precision gearbox which is directly coupled to the servo motor and pinion.This eliminates belt stretch inacuuracies assuring high-speed machining while the system positions the spindle accurately.
Technical parameters:
Machine body | Whole weld steel tube |
Working area | 1800mm*2500mm*200mm |
Spindle Power | 6*1.5kw water-cooling spindles |
Spindle Rotating speed | 0-24000rpm/min |
Guideway | X,Y,Z Linear guide |
Drive mode | Rack driving |
Max. Feeding height | 200mm |
Max. Speed | 34000mm/min |
Working speed | 0-20000mm/min |
Mechanical precision | 0.01mm |
Software | type 3 software, Artcut software, Artcam software |
Control system | Ncstudio/DSP/Mach3 |
Table structure | Vacuum and T-Slot/Aluminum table |
Work voltage | AC220V/380V/50HZ |
Our workshop: We started to produce Mechanical and Laser Engraving Machine in 1994. Nearly 20 years rich experience in producing saling and service ensures you high quality machine and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label offered.
We have business relationship with Maersk Sealand, one of the best shipping company in the world. Land, sea and air transportation covering the world to ensure you get your parcel timely.
We have R&D Production Department, Quality Control Department, and Sales &Services Department to offer you top quality machine, perfect after-sales service.
According to your requirement,we will recommend the best suitable machine for you:
1.What is your Max.size of your processing materials?
2.What kind of material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.
According to your sample,we will recommend the best suitable machine for you.
If you have any question or need, please feel free to tell me
Working Procedure:
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with the machine, you can ship your old part to us. We maintain it for you then post it to you.
If it cannot be maintained then we will post a new one to you. You only bare the shipping cost to us.
Without 12 months, if something is wrong with the machine, you have to pay for spare parts’ agent cost & the shipping cost.
1, We offer life-long technical support by call, email
2, Me & Our technician can give you remote guide online (Skype or MSN) if you have any questions
3, We can record videos of operating the machine
4, Free training course in our factory
5, Engineer available to service machinery overseas
6, Machine will be adjusted before it is delivered , operation disk/CD was included.
Key point:
All the parts of machine can do some changes to meet your requirements.Please kindly tell us your engraving or cutting materials and size.Then we can quickly check and recommend to you the right machine and right working area.
