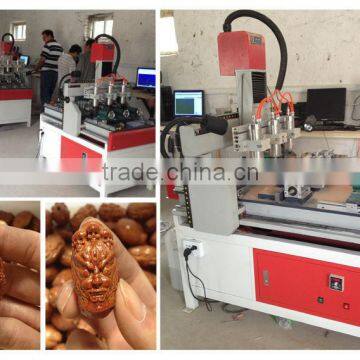

Enrutador Mini Wood Lathe Cnc Routers Engraving Machine 6090 Price
- Qingdao Shanghai
- T/T
You May Like
-
Cnc Router Wood Stone Aluminum KC6090 Cnc Router Jinan Working Area 600*900
-
XJ6090 Smart Carving Stone Router Stone Cnc Engraving Machine
-
Mini CNC Router Metal Cutting Machine
-
XJ6090 Cnc Router for Wood Aluminium Metal Carving With Water Tank
-
Stone CNC Routers New Used Wood Foam Parts Processing
-
CNC Routers From XYZ-Tech | Customized for Any CNC Router Project
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | XYZ-TECH | |
| Model Number | XJ6090 | Voltage | 220V/380V/110V | |
| Power(W) | 1.5KW | Dimension(L*W*H) | 1.52*1.22*1.24M | |
| Weight | 500KG | Certification | CE/ISO9001/BV | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
enrutador mini wood lathe cnc routers engraving machine 6090 price
| Features |
1.6090 is aunique CNC router designed for the three dimensional cameo engraving of the classical padauk
furniture, with fast speed and high accuracy, and it can meet the all the engraving needs .
2.Three-axis are covered to keep the dust away. With gantry-moving, castled lathe bed, the machine is sturdy
and durable.
3.It is equipped with the world’s leading DSP controlling system (option: NC studio), which could memorize
the breakpoint if it happens accident so that to guarantee to process in the other day.
4.This machine adopts the ball screw produced in German, original nut, imported linear guide rail and 1.5KW
water cooling spindle.
| Parameters |
NO. | Description | Parameter cnc router 6090 |
1 | X,Y,Z Working Area | 600x900x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
4 | Lathe Structure | cast iron |
5 | X, Y Structure | Orignal Taiwan Hiwin Linear rails and Ball Screw |
6 | Z Structure | Ball Screw |
7 | Max.Speed | 0-15000mm/min |
8 | Max.Working Speed | 0-10000mm/min |
8 | Spindle Power Motor | 1.5Kw spindle |
10 | Spindle Speed | 0-24000RPM |
11 | Working Mode | Stepper |
12 | Working Voltage | AC220V/50/60Hz |
13 | Command | G code, *uoo, *mmg, *plt |
14 | Operating System | DSP control system |
15 | Collet | ER11 |
16 | X,Y Working Delicacy | <0.01mm |
17 | Software | Type3 software, Wentai software, Artcam software |
| Application Materials |
Engrave and cut on Acrylic sheet, ABS double color sheet,
PVC foam sheet, wooden sheet, PCB Aluminum seet ,brass,steel,stone
| Samples |
| Our service |
1.One year quality guaranty, the machine with main parts shall be changed free of charge
when if any problem during the warranty period.
2. Life time maintenance free of charge.
3. Free training course at our plant.
4. 18 hours on line service each day, free technical support.
5. Machine has been adjusted before delivery
| Company information |
| FAQ |
1) What payment you accept?
1,T/T inadvance 2.western union 3 . Trade Assurance
2) I did not imported before , how should i do ?
You only need pay to us , we will arrange all the things to you and teach you how to do .we will
prepare all the documents to you , you don't need worry , because we know what you need .
3) Do You Arrange the ship For us?
Yes ,for FOB or CIF price, we will arrange shipment for you.
4) How about the documents after shipment?
We‘ ll send all original documents to you by DHL, for example :the Packing List, Commercial
Invoice, B/L, and other certificates as required by clients.
Looking at the customized cnc router 6090:
1).How to get the most suitable machine and best price ?
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
2). Do you have the manual of machine ?
Yes,we have by English
3). If we donot know how to use the machine,can you teach us ?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And
if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
4). How about your after-sales service ?
we offer you 24 hours service by phone,skype or MSN.
5). How about your guarantee period ?
One year and during the time.
If you have any questions ,we will solve it for free forever.
6). Personal contact ?
Whatsapp:008618765893695
Skype:2945996115 @qq.com
