Stone CNC Routers New Used Wood Foam Parts processing
1. Main Introduction of Stone CNC Routers New Used Wood Foam Parts processing:

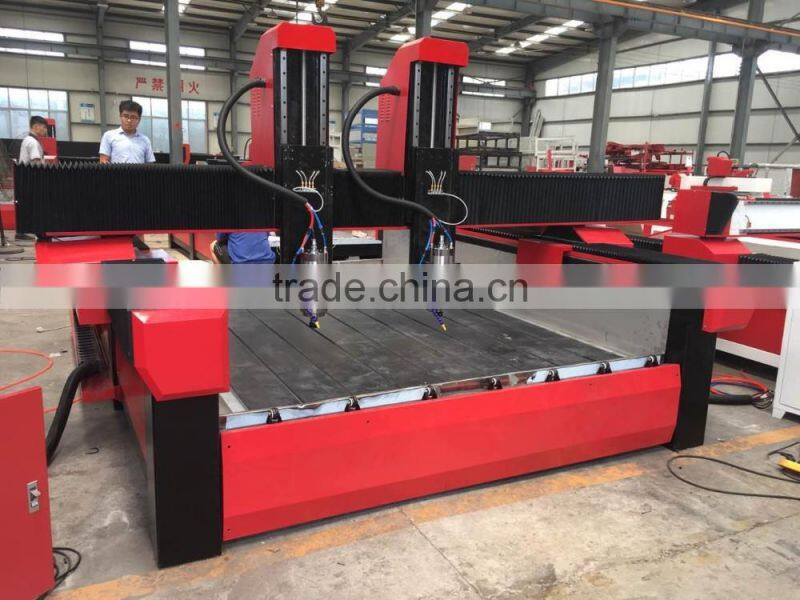

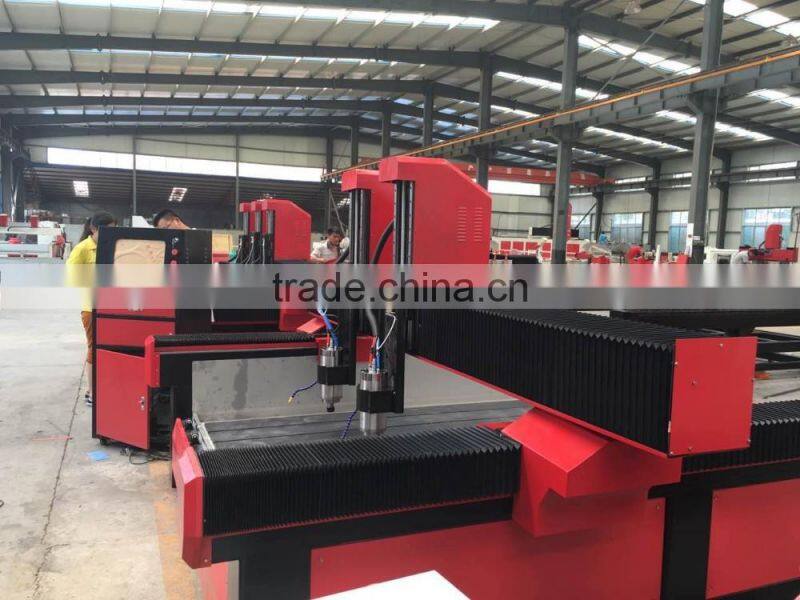

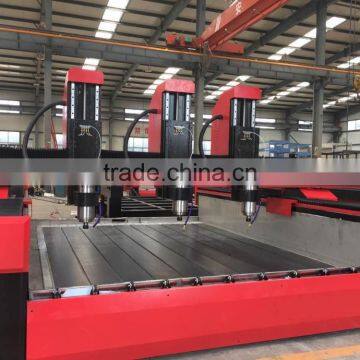

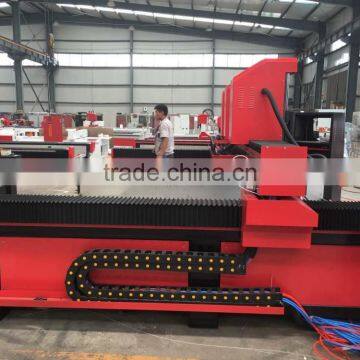

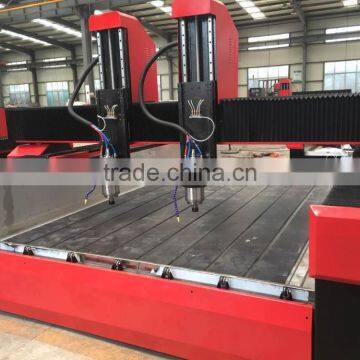

The two heads stone cnc router machine is mailnly used for cutting and engraving stone and wood,plastic and so on.
The two heads stone cnc router machine can do work at the same time do one similar pattern which you need.
The two heads stone cnc router machine can save lots processing time.
2. Top components of Stone CNC Routers New Used Wood Foam Parts processing:
1.water cooling spindle , big strength, long life, and low noise.
2.Popular NC studio controller, easy operation and convenient by PC computer.
3.Two separate heads, much bigger strength than one head, it’s suitable for wood doors, windows, stone, marble, granite, wood, metal.
4.HIWIN linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.
3. Technical Parameter of Stone CNC Routers New Used Wood Foam Parts processing:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1400mmx3000mmx500mm |
2 | Table Size | 3400mm*2000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02/300 |
4 | X,Y,Z Repositioning Accuracy | ±0.0254mm |
5 | Table Surface | T-slot Combined |
6 | Frame | Welded Structure |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
9 | Max. Power Consumption | 4.0Kw (Without spindle) |
10 | Max. Rapid Travel Rate | 42000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 5.5 KW water Cooling Spindles*2 sets |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Leadshine Sevor Motor |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Ncstudio System |
18 | Computer Interface | USB |
19 | Flash Memory | 512M(U Disk) |
20 | Collet | ER32 |
21 | X,Y Resolution | <0.03mm |
22 | Software Compatibility | JDPaint, Type3 Software (Option: Artcam software) |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 3750mmX2250mmX2100mm |
26 | N.W. | 1700KG |
27 | G.W. | 2100KG |

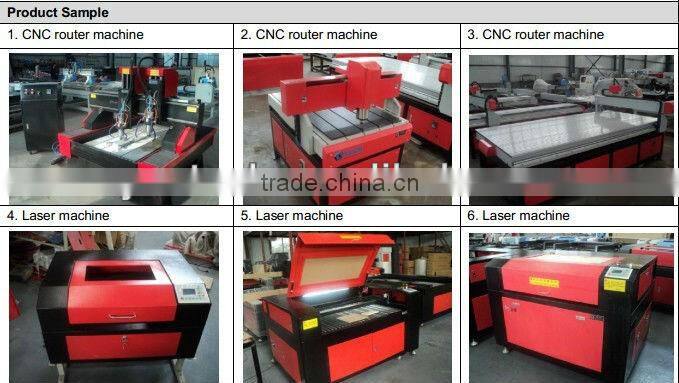

4. Samples for Your Reference of Stone CNC Routers New Used Wood Foam Parts processing:
1.We will provide the user a CD to study the machine installation and commissioning of English.
2.Our technicists can give user online guide.
3.The user can by call or email us any problems at any time.
4.One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Our factory:
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
1).How to get the most suitable machine and best price ?
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
2). Do you have the manual of machine ?
Yes,we have by English
3). If we donot know how to use the machine,can you teach us ?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And
if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
4). How about your after-sales service ?
we offer you 24 hours service by phone,skype or MSN.
5). How about your guarantee period ?
One year and during the time.
If you have any questions ,we will solve it for free forever.
6). Personal contact ?
Whatsapp:008618765893695
Skype:2945996115 @qq.com
