Hot Sale Wood Mini Cnc Router XJ6090 Cnc Wood Engraving Machine Price With Mach3 Control System

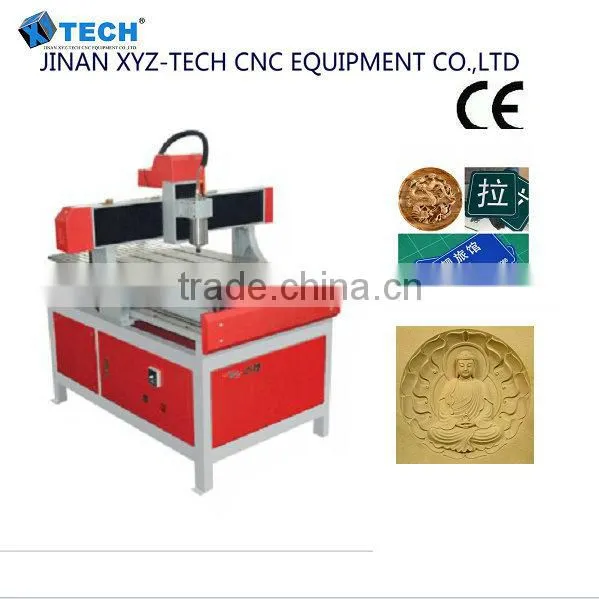

Hot Sale Wood Mini Cnc Router XJ6090 Cnc Wood Engraving Machine Price With Mach3 Control System photo-1
Hot Sale Wood Mini Cnc Router XJ6090 Cnc Wood Engraving Machine Price With Mach3 Control System photo-2
Hot Sale Wood Mini Cnc Router XJ6090 Cnc Wood Engraving Machine Price With Mach3 Control System photo-3
Hot Sale Wood Mini Cnc Router XJ6090 Cnc Wood Engraving Machine Price With Mach3 Control System photo-4
Hot Sale Wood Mini Cnc Router XJ6090 Cnc Wood Engraving Machine Price With Mach3 Control System photo-5
Hot Sale Wood Mini Cnc Router XJ6090 Cnc Wood Engraving Machine Price With Mach3 Control System photo-6
US$ 1,800 - 2,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name XYZ-TECH
Model Number XJ6090
Voltage 220V/380V/110V
Power(W) 1.5KW
Dimension(L*W*H) 1.52*1.22*1.24M
Weight 500KG
Certification CE/ISO9001/BV
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

hot sale wood mini cnc router XJ6090 cnc wood engraving machine price with mach3 control system

hot sale wood mini cnc router XJ6090 cnc wood engraving machine price with mach3 control system





Features



1.6090 is aunique CNC router designed for the three dimensional cameo engraving of the classical padauk

   furniture, with fast speed and high accuracy, and it can meet the all the engraving needs .



2.Three-axis are covered to keep the dust away. With gantry-moving, castled lathe bed, the machine is sturdy

  and durable.



3.It is equipped with the world’s leading DSP controlling system (option: NC studio), which could memorize

   the breakpoint if it happens accident so that to guarantee to process in the other day.



4.This machine adopts the ball screw produced in German, original nut, imported linear guide rail and 1.5KW

   water cooling spindle.





Parameters



NO.

Description

Parameter cnc router 6090

1

X,Y,Z Working Area

600x900x100mm

2

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z repositioning Positioning Accuracy

±0.05mm

4

Lathe Structure

cast iron

5

X, Y Structure

Shaft Linear Bearings and Ball Screw

6

Z Structure

Ball Screw

7

Max.Speed

0-15000mm/min

8

Max.Working Speed

0-10000mm/min

8

Spindle Power Motor

1.5Kw spindle

10

Spindle Speed

0-24000RPM

11

Working Mode

Stepper

12

Working Voltage

AC220V/50/60Hz

13

Command

G code, *uoo, *mmg, *plt

14

Operating System

DSP control system

15

Collet

ER11

16

X,Y Working Delicacy

<0.01mm

17

Software

Type3 software, Wentai software, Artcam software





Application Materials



Engrave and cut on Acrylic sheet, ABS double color sheet,

PVC foam sheet, wooden sheet, PCB Aluminum seet ,brass,steel,stone



Samples







hot sale wood mini cnc router XJ6090 cnc wood engraving machine price with mach3 control system





hot sale wood mini cnc router XJ6090 cnc wood engraving machine price with mach3 control system



Our service

1.One year quality guaranty, the machine with main parts shall be changed free of charge

    when if any problem during the warranty period.
2. Life time maintenance free of charge.

3. Free training course at our plant.

4. 18 hours on line service each day, free technical support.
 5. Machine has been adjusted before delivery



Company information










FAQ



1)  What payment you accept?

    1,T/T inadvance   2.western union  3 . Trade Assurance

2)  I did not imported before , how should i do ?

    You only need pay to us , we will arrange all the things to you and teach you how to do .we will

     prepare all the documents to you , you don't need worry , because we know what you need .

3)  Do You Arrange the ship For us?

    Yes ,for FOB or CIF price, we will arrange shipment for you.

4)  How about the documents after shipment?

    We‘ ll send all original documents to you by DHL, for example :the  Packing List, Commercial

    Invoice, B/L, and other certificates as required by clients.



Looking at the customized cnc router 6090:



hot sale wood mini cnc router XJ6090 cnc wood engraving machine price with mach3 control systemhot sale wood mini cnc router XJ6090 cnc wood engraving machine price with mach3 control system

FAQ

1).How to get the most suitable machine and best price ?

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)



2). Do you have the manual of machine ?

Yes,we have by English



3). If we donot know how to use the machine,can you teach us ?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And

if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.



4). How about your after-sales service ?

we offer you 24 hours service by phone,skype or MSN.



5). How about your guarantee period ?

One year and during the time.

If you have  any questions ,we will solve it for free forever.



6). Personal contact ?

Whatsapp:008618765893695

Skype:2945996115 @qq.com
