cnc router machine XJ1325 for wood furniture working with cheap price
1. Main Introduction of cnc router machine XJ1325 for wood furniture working with cheap price
| Industry | Products |
| Furniture Industry |
1) doors 2) cabinets 3) tables 4) chairs |
| Advertising Industry |
1) signage(road, door, office) 2) Logo 3) Badges 4) display board 5) meeting sign board 6) billboard |
| Artwork and Decoration |
1)wood crafts 2)gift box 3)jewelry box |
2. Top components of cnc router machine XJ1325 for wood furniture working with cheap price
♦ Overall seamless Big steel tube structure. After tempering treatment, reliving of internal pressure, make the structure has good rigidty and durability, not easy to deform, which ensure the high working precision and long working life.
♦ Top-quality world famous brand components, to make the machine high-precision and high-efficiency.
♦ Easy and safe operation and low maintenance cost. Free training in our factory will be offered. Less time and less money will be cost on the maintance because of the top quality of the machines.
♦ Many optional configuration. According to your requirement, different configurations will be offered.
3. Technical Parameter of cnc router machine XJ1325 for wood furniture working with cheap price
| No. | Description | Parametrs |
| 1 | X,Y,Z Working Area: | 1300*2500*300mm& 2500 length *200 diameter |
| 2 | Table Size: | 1450*2940mm |
| 3 | X,Y,Z Traveling Positioning Accuracy: | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03 mm |
| 5 | Table Surface: | T-slot and rotary |
| 6 | Frame: | Steel Tube Welded Structure |
| 7 | X,Y Structure: | Rack and Pinion Drive, Hiwin Rails Linear Bearings |
| 8 | Z Structure: | Hiwin Rails Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption: | 4.2kw(without spindle) |
| 10 | Max. Rapid Travel Rate: | 35,000mm/min |
| 11 | Max. Working Speed: | 25,000mm/min |
| 12 | Spindle Power: | 3.0KW water cooling spindle |
| 13 | Spindle Speed: | 0-24000 RPM |
| 14 | Drive Motors: | stepper moror and driver |
| 15 | Working Voltage: | AC380V, 50/60Hz, 3PH (Option:220V) |
| 16 | Command Language: | G Code |
| 17 | Operating System: |
Ncstudio (Options: / DSP System Mach3 PC Software) |
| 18 | Computer Interface: | USB |
| 19 | Flash Memory: | 128M (U Disk) |
| 20 | Collet: | ER25 |
| 21 | X,Y Resolution: | < 0.03mm |
| 22 | Software Compatibility: | Type3/ Ucancame V9 software (Option: Artcam Software) |
| 23 | Running Environment Temperature: | 0°-45° |
| 24 | Packing Size: | 5100x2300x2200mm |
| 25 | N.W.: | 1800kg |
| 26 | G.W.: | 2100kg |
| 27 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System | ||
| Dust Collector | ||
| Vacuum Pump | ||
| Mist-cooling System | ||
| Delta/ 750W Panasonic Servo Motor |

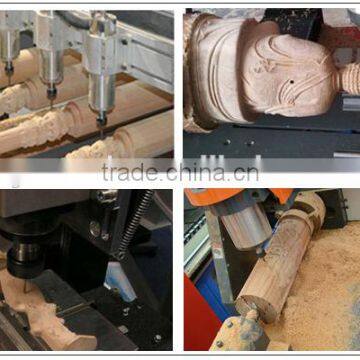

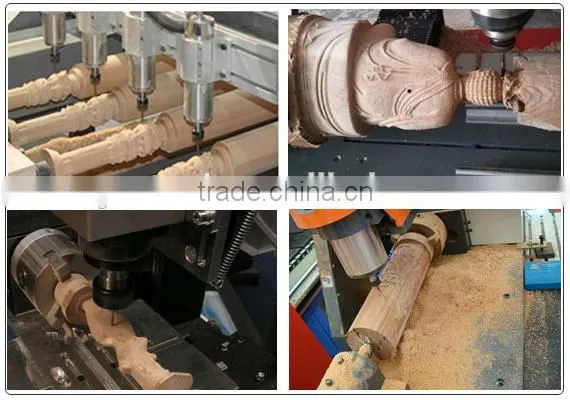

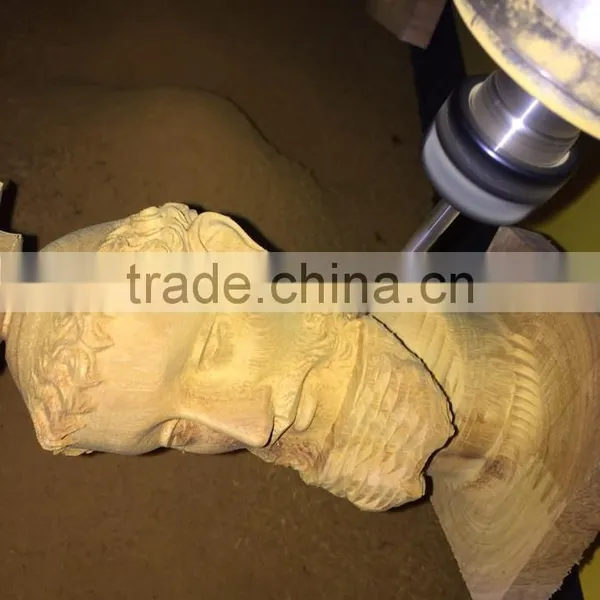

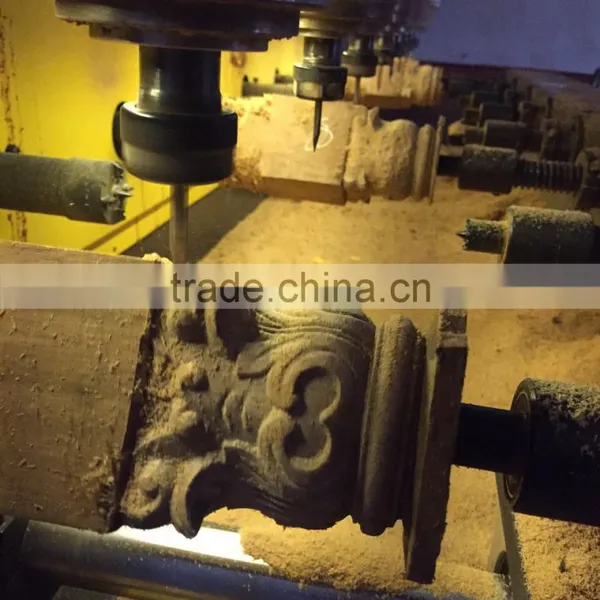

4. Samples for Your Reference of cnc router machine XJ1325 for wood furniture working with cheap price
1.We will provide the user a CD to study the machine installation and commissioning.
2.Our technicists can give user online guide.
3.The user can by call or email us any problems at any time.
4.One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
Our company was established in 1994,we are manufacture and specilized in laser engraving and cutting machine,cnc router,plasma cutting machine and cutting plotter.
From 2007,we have expanded our bussiness to worldwide.In the past 12 years,so many clients all over the world cooperated with us and built a good business realtions.We have much experiece on our after-sale problems.
Whatsapp:008618765893695
Skype:2945996115 @qq.com
1) What payment you accept?
1.T/T inadvance 2.western union 3 . Trade Assurance
2) I did not imported before , how should i do ?
You only need pay to us , we will arrange all the things to you and teach you how to do .we will
prepare all the documents to you , you don't need worry , because we know what you need .
3) Do You Arrange the ship For us?
Yes ,for FOB or CIF price, we will arrange shipment for you.
4) How about the documents after shipment?
We‘ ll send all original documents to you by DHL, for example :the Packing List, Commercial
Invoice, B/L, and other certificates as required by clients.
5) Whatsapp:008618765893695
Skype:2945996115 @qq.com
