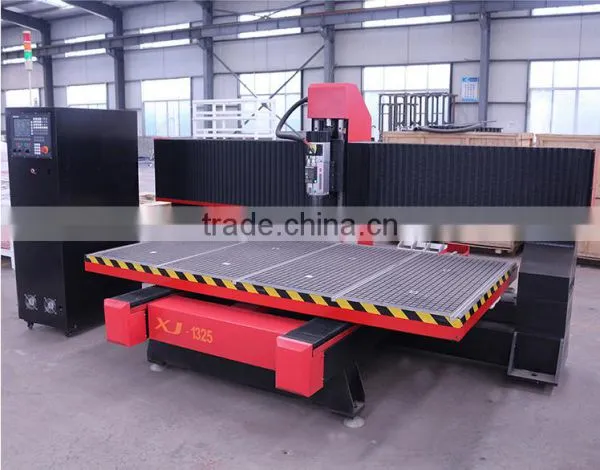

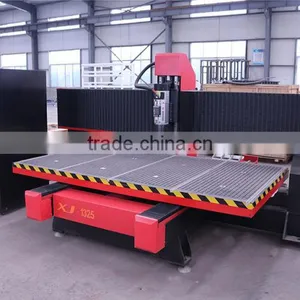

Japan Yaskawa servo motor with 25mm HIWN square rail working table move atc cnc router
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine, plasma cutting
machine and cutter plotter, with 16 years production and sales experience in this field and 11 years export
and service experinece for overseas’ buyers.
Technical specification of cnc wood router:
| Working Area | 1,300 x2,500 x 200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy: | ±0.03mm/300mm |
| Table Surface | Vacuum and T-slot Combined |
| vacuum pump | 5.5kw Circulating water type vacuum pump |
| Frame | Heavy Duty Structure |
| X, Y Structure | 25mm Hiwin Rail Linear Bearings and Ball Screw |
| Z Structure | 25mm Hiwin Rail Linear Bearings and Ball Screw |
| Max. Power Consumption | (Without Spindle) 4.5Kw |
| Spindle Power | 9.0KW HSD ari cooling spindle |
| Spindle Speed | 0-18000RPM/min |
| Drive Motors | Yaskawa 850w Servo motors |
| Tools | 6 tools ATC change |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Command Language | G Code |
| Operating System | NK260(Recommend)/LNC control system/Taiwan or SYNTEC EMBED_CNC Control System |
| Computer Interface | USB / Ethernet |
| Flash Memory | 512M |
| Collet | ER32 |
| X,Y Resolution | <0.03mm |
| Software Compatibility | Type3/Artcam/Alphacam |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Multifunction parts | boring unit & cutting saw |
| Resolution | 0.025mm |
| Guide | Linear 25mm square rail |
| Max. speed | 60,000mm/min |
| Max. cutting speed | 30,000mm/min |
| Inverter power | 11kw FULING |
| Command code | HPGL, G code |
| Collet | ISO30-12.7mm,6mm,3.175mm |
| Oil lubrication system | with ATC oil system |
| Dust collector system | 3.0kw two bags |
| auto tool changer | without line |
| Gross weight | 4.6t |
| Deliver time | 15 days |
Guarantee & Aftersales Service of cnc wood router:
Guarantee for one year
24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining

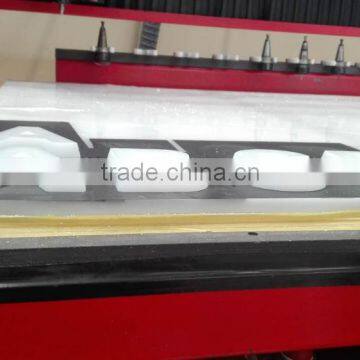

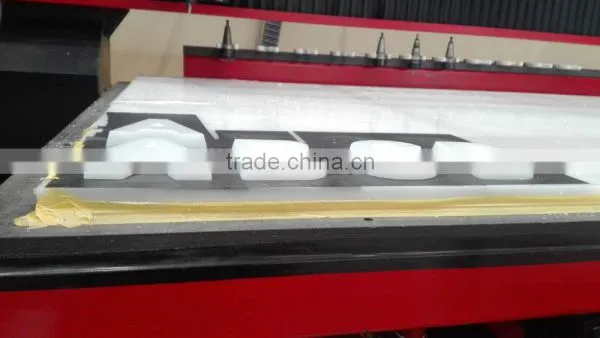

Sample picture:
Packing picture:
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.

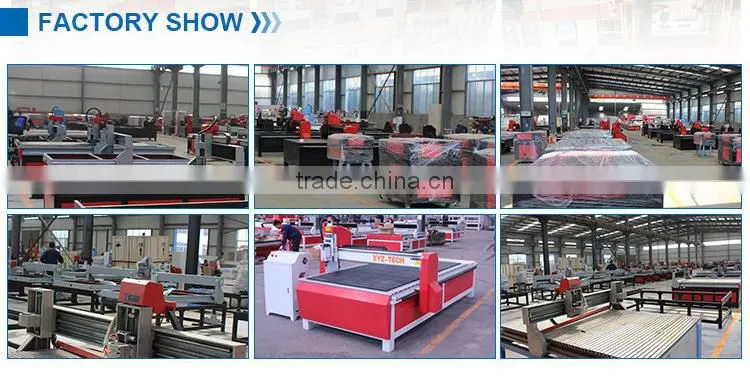

Welcome to visit our factory!!!
