1300*2500*200mm ATC with 6 tools change wood stair woodworking cnc router
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine, plasma cutting
machine and cutter plotter, with 16 years production and sales experience in this field and 11 years export
and service experinece for overseas’ buyers.
Applications of cnc wood router:
a) Furniture processing industry
b) Decoration
c) Wooden art crafts
d) Wood furniture engraving
Features and specialties:
1.Italy HSD ATC Spindle optional optioanl
2.Working table:1300*2500mm
3.Maximum working height:200mm
4.Travailing speed:60m/min,working speed:30m/min
5.Hat type ATC,Tool magazine capacity of 6 tools,Tool change time of 14-18 seconds.
6.Maximum spindle speed:24000rpm/min
7.Suited for complex machining.Designed for machining various parts in small quantities.
8.Provides processing full sheet of panel without additional sawing operation.Also suitable for sample machining.
9.With vacuum system,Germany Becker vacuum pump.
10.Driveling by double servo motors can make sure high speed, precision and lower noise.Syntec control system
11.Adopting PMI Ball Screw in X,Y and Z axis, ensure higher accuracy and speed, so improving stability of working.
12.Be compatible with CAD/CAM software like Type3,ArtCam,Wentai,Castmate,etc.
Technical specification of cnc wood router:
| Model | XJ1325 ATC woodworking cnc machine |
|
| Working Area | 1300×2500×200mm |
|

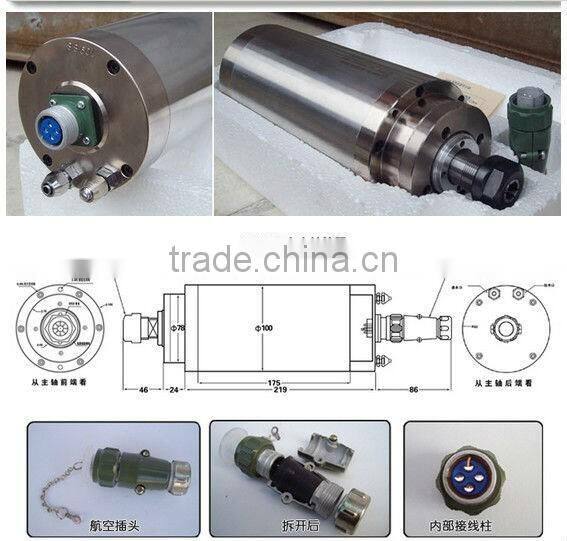

| Spindle Motor | 6.0kw water-cooling spindle | |
| Working Mode | Servo motor made in China(Yaskawa and Panasonic for optional) |
|
| Control System | DSP off-line control panel with USB interface(128MB) or PCIMC control system | |
| Drive Mechanism | Gear-wheel on x,y axis | |

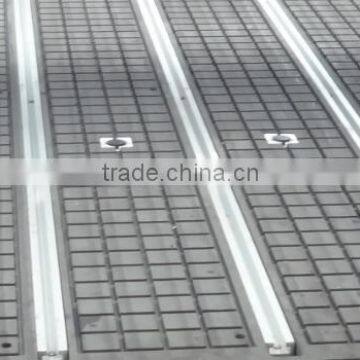

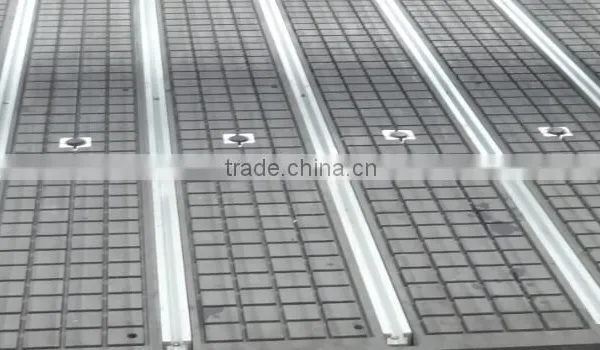

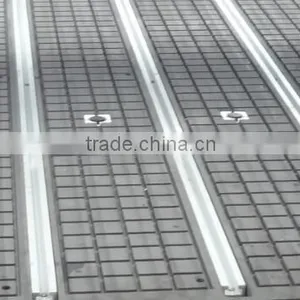

| Table Surface | Vacuum table |
|
| Frame | wholly steel structure | |
| Motion Positioning Accuracy | ± 0.03/300mm | |
| Repositioning Accuracy | ± 0.05mm | |
| Max Motion Speed | 50,000mm/min | |
| Max Engraving Speed | 30,000mm/min | |
| Rotating Speed of Spindle | 2,4000rpm/min | |
| Z-axis setting | Auto Z origin tool high sensor | |
| Dictate Formate | G code, *.u00, *.mmg, *.plt | |
| Operating Voltage | 3phase 380v |
|
| Software | Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software | |
| Packing Size | 3350×1950×1990mm | |
| Lubrication System | Oil lubrication system | |
| Net weight/ Gross Weight | 1227kg/ 1240kg | |
| Noise Level | Racing | LAeep dB(A)72±1 |
| Engraving | LAeep dB(A)80±2 | |
| Engraving Peak | LAeep dB(C)95 | |
| Optional Parts | Dust Collecting System | |
| Vacuum Table with Air Pump (For XJ-1224,1325) | ||
| Mist Sprayer and flume | ||
| Rotary device with Dia80mm/100mm/200mm | ||
| DSP System w/Portable Control Pad (128MB) | ||
Guarantee & Aftersales Service of cnc wood router:
Guarantee for one year
24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining

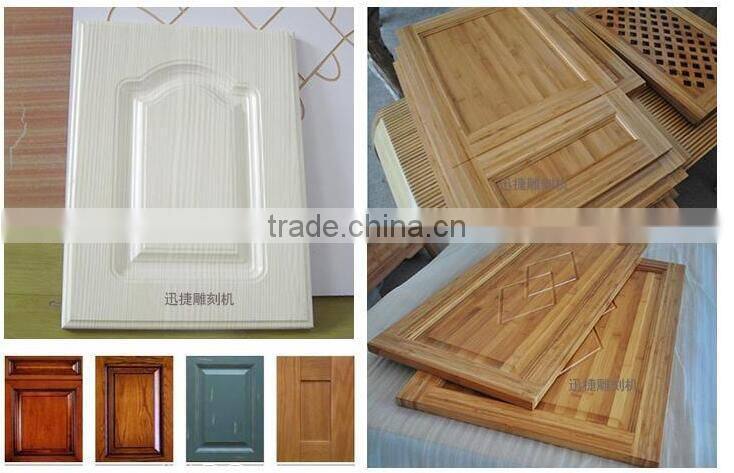

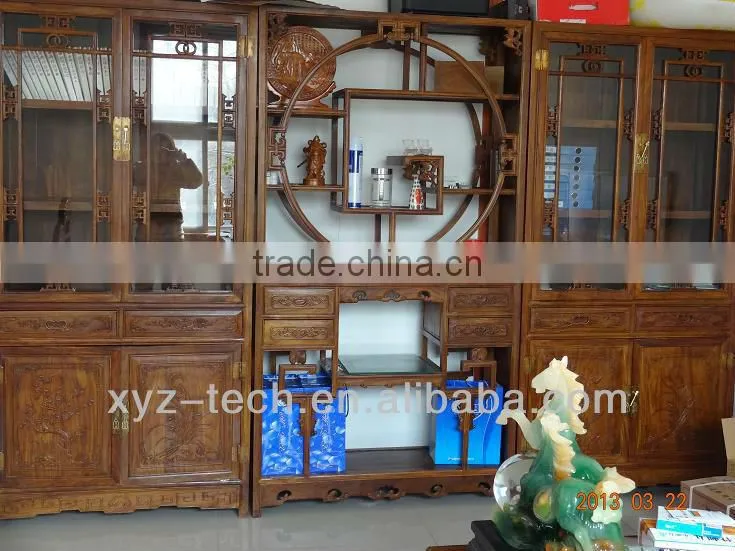

Sample picture:
Packing picture:
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .

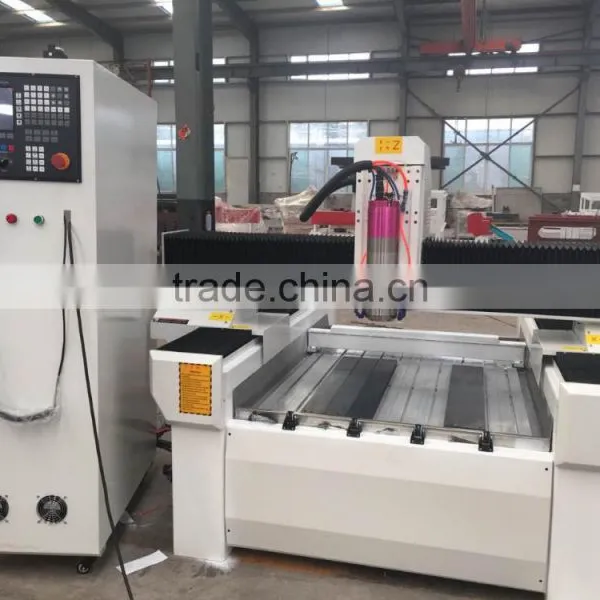

Our factory:
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
Welcome to visit our factory!!!
