Oil Heating Roller Heat Transfer Press Machine for Sublimation Fabric,garment

Oil Heating Roller Heat Transfer Press Machine for Sublimation Fabric,garment photo-1
Oil Heating Roller Heat Transfer Press Machine for Sublimation Fabric,garment photo-2

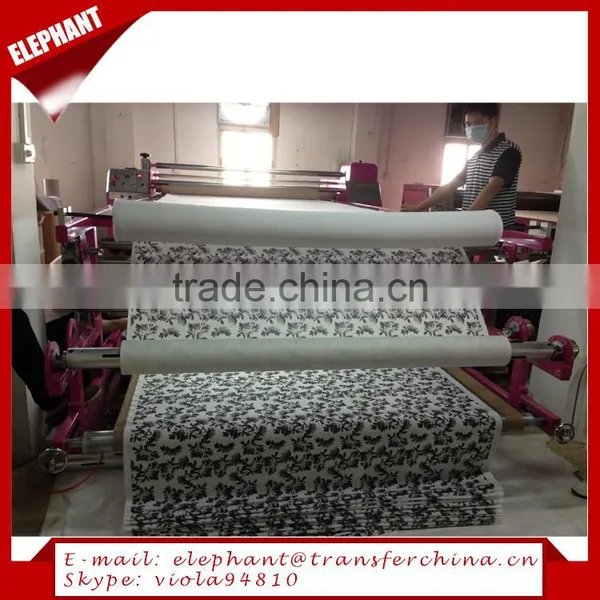

Oil Heating Roller Heat Transfer Press Machine for Sublimation Fabric,garment photo-3
Oil Heating Roller Heat Transfer Press Machine for Sublimation Fabric,garment photo-4
US$ 9,230 - 9,540 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, sublimation printer
Brand Name:
DBX-roll heat press machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Guanghzou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, sublimation printer
Brand Name DBX-roll heat press machine
Model Number roll heat press machine
Usage Cloths Printer, Paper Printer
Automatic Grade Automatic
Voltage 220 V or 380 V
Gross Power 24KW
Dimensions(L*W*H) 248*137*310cm
Weight 1700 KG
Certification CE Cercificate
After-sales Service Provided Engineers available to service machinery overseas

    Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garment



Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garment

Product Description

Specification:

Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garment

There is external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.

- Aligning Blanket Automatically
- Detecting Temperature on the Surface
- Filling Oil Drum to 100% Full (Saving 30% Power)
- Controlling Temperature Precisely (Controllable Silicon Solid State Relay)
- Minimizing Maintenance Effort (Slip Ring)
- At Least 70% Blanket Coverage
- Blanket Tension Controlled by Piston
- Fabric/Transfer Paper/Tissue Paper Tension Controlled by Compressed Air
- Daily Power On/off

Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garment

Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garment

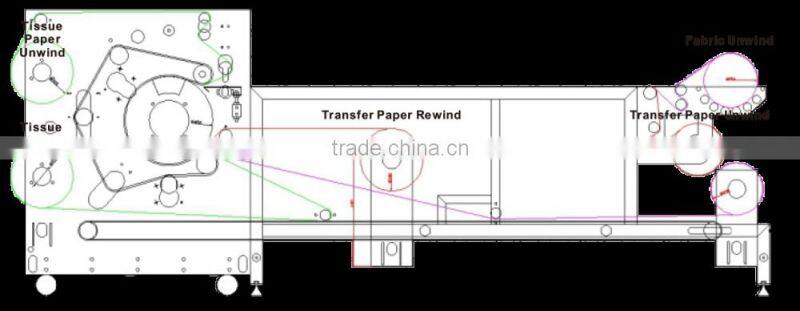

Roller heat press Machine details:

Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garment

Application:

Its suitable for sublimation transfer T-shirt, large banners, flags, non-woven fabrics, apparel   fabrics, blankets, towels, mouse pads, scarves and other products in the piece,

especially the roll fabrics need to continuous print.

Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garment

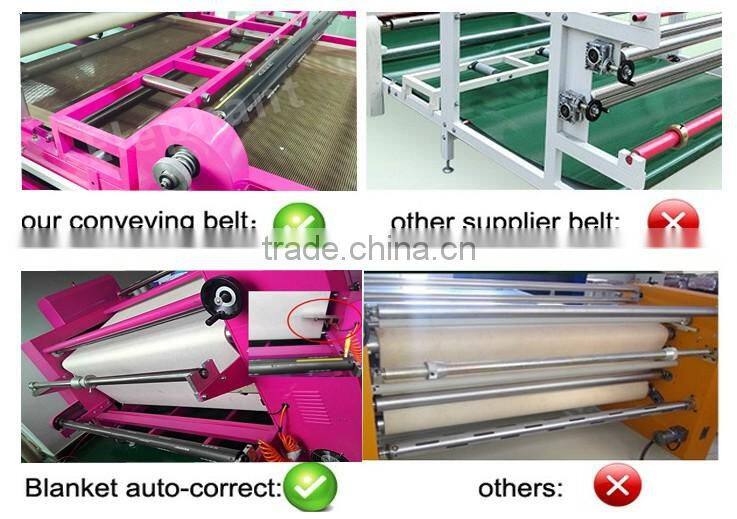

Our Advantage:

Oil heating Roller Heat Transfer Press Machine for sublimation fabric,garmentOil heating Roller Heat Transfer Press Machine for sublimation fabric,garment

>>>GET THE LATEST PRICE & CATALOGUE

Related Products



Quality Control on Finished Machine:

All heat press machines are strictly tested under the following procedures before shipping out.



1) Turn on the heat press machine, let it heating up to 220 degree Celsius;



2) Use black transfer paper test print fabrics.



Machine Warranty:



1) One-year warranty on entire press & parts.



2) Free lifetime technical support on all heat presses.




We provide two kinds of products and services:



1.  We have our own brand,currently the sales region covers 28 countries and regions around the world. We specialize in this field for more than 10 years, with the strength of market, with good quality and pretty competitive price.



2.  We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.





1.how wide is the machine?

1.2M width, 1.7M width machine; 1.9M width machine , can be customized.



2. how about the speed ?

150-200m/h



3.does the Press rolls the Fabric once it is printed or you have to roll it on a different

Machine?

it can roll fabric after heat press, but we suggest you can roll it on other machine - roll yard machine to collect fabric  as attachment, coz when finished printed , the fabric still has temperature about 90-150, if Roll the printed fabric, the pattern become shape by pulled, and  color,fabric will affect , more important if  stretch fabric, we still advice to keep the stretch fabric in 5/6hours after finished printing then roll it , or one night ,the color will more  perfect.



4.are you able to print on dark Fabrics? if so how dark and on what contents? can it print

 on stretch goods?this press machine can press light color fabric,not dark fabric but can print on stretch fabric



5.how many yards or meters per hour?

150-200 meters per hours, depend on the fabric and the transfer speed.



6. do you supply Paper and ink and Parts?Prices per gallon Prices per Paper yards ?

 we also offer paper and ink! We provide one-stop services!



7. How we keep the maintance of this roll heat transfer machine? how competitive are you with your prices compare to your competition ? how long will it take ?

we can arrange our technicist to set up the machine and teach you to maintenance and train how to use that machine! the printer and press machine delivery time is 15-20days!



8.does it do stretch lycre and nylon and what colors?stretch polyester lycra fabric,Satin,curtain etc,but not suitable for nylon, need light color fabric, better of white color fabric!by the way,coz the printer can print any color,and press machine can press any pattern color on white color,so do not need other color fabric to press!



9:Do you have any video to show how to work?

1./watch?v=wzluTGp2jW8

2./watch?v=j0ZrH0MOT1E&feature=youtu.be

3./watch?v=eBmIQxRPewk
