Bed sheet curtain printing roll heat press machine
- 1000 Set / Sets per Month
- Guanghzou
- Credit Card
You May Like
-
sublimation roll to roll heat transfer printing machine price
-
Roller Sublimation Roll Fabric Heat Press Transfer Machine / Roll For Calender Sublimation Oil Press Machine
-
Automatic Heat Transfer Press Roller Machine With 50cm diameter of the cilinder
-
1.2m 1.7m 1.9m size roller sublimation heat press machine
-
Rotary Oil Drum Roller Sublimation Transfer Printing Machine For Textile
-
Multi Purpose Roller Fabric Sublimation Heat Transfer Machine For Soccer Jersey
Product Details
| Condition | New | Plate Type | Other, sublimation printer | |
| Brand Name | DBX-roll heat press machine | Model Number | roll heat press machine | |
| Usage | Cloths Printer, Paper Printer | Automatic Grade | Automatic | |
| Voltage | 220 V or 380 V | Gross Power | 24KW | |
| Dimensions(L*W*H) | 248*137*310cm | Weight | 1700 KG | |
| Certification | CE Cercificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

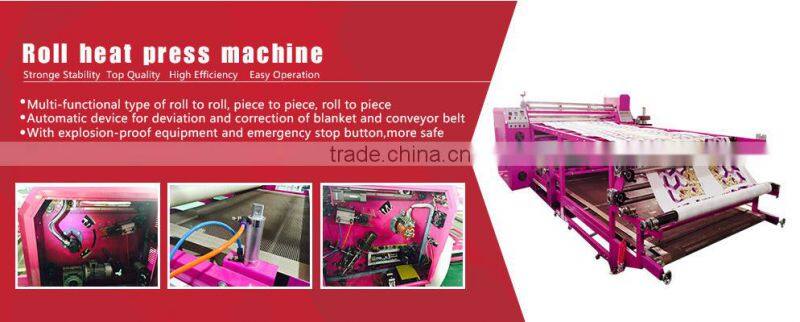

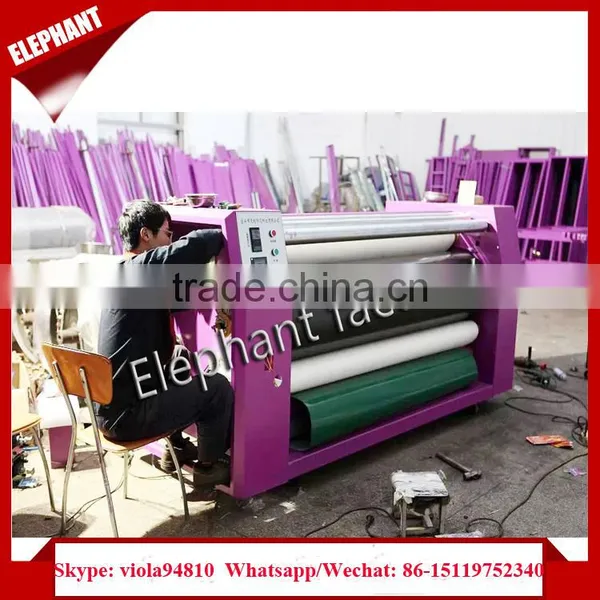

Bed sheet curtain printing roll heat press machine
Specification:
| Item Name: | Roll heat press Machine |
| Width: | 120cm,170cm,320cm etc |
| Temperature range: | 0-399 |
| Time Range: | 0-999sec |
| Printing Speed: | 150~200m/h |
| Control panel screen size: | 27cm*35cm |
| Work table size approx : | 175cm*270cm |
| Power: | 12-15KW |
| Heating: | Oil heating |
| Noise level: | < 30 dB |
| weight: | 1500KG |
| Power supply: | 380v or 220v/50hz |
| Dimensions: | 248*137*310cm |
| Diameter of roller: | 500/600mm |
| Size of woolen blanket: | 1700mm |
| Cartridge heater Ø approx: | 220 V or 380 V, 3 phase |
| Used: | roll and sheet textile |
| Place of production: | China |
features
- Blanket use imported raw materials
- Using 100% seamless tube platen
- Adopting the precision 10 cm thick steel plate production
- Partial jump each seiko lathe
- Full automatic control, high quality digital display

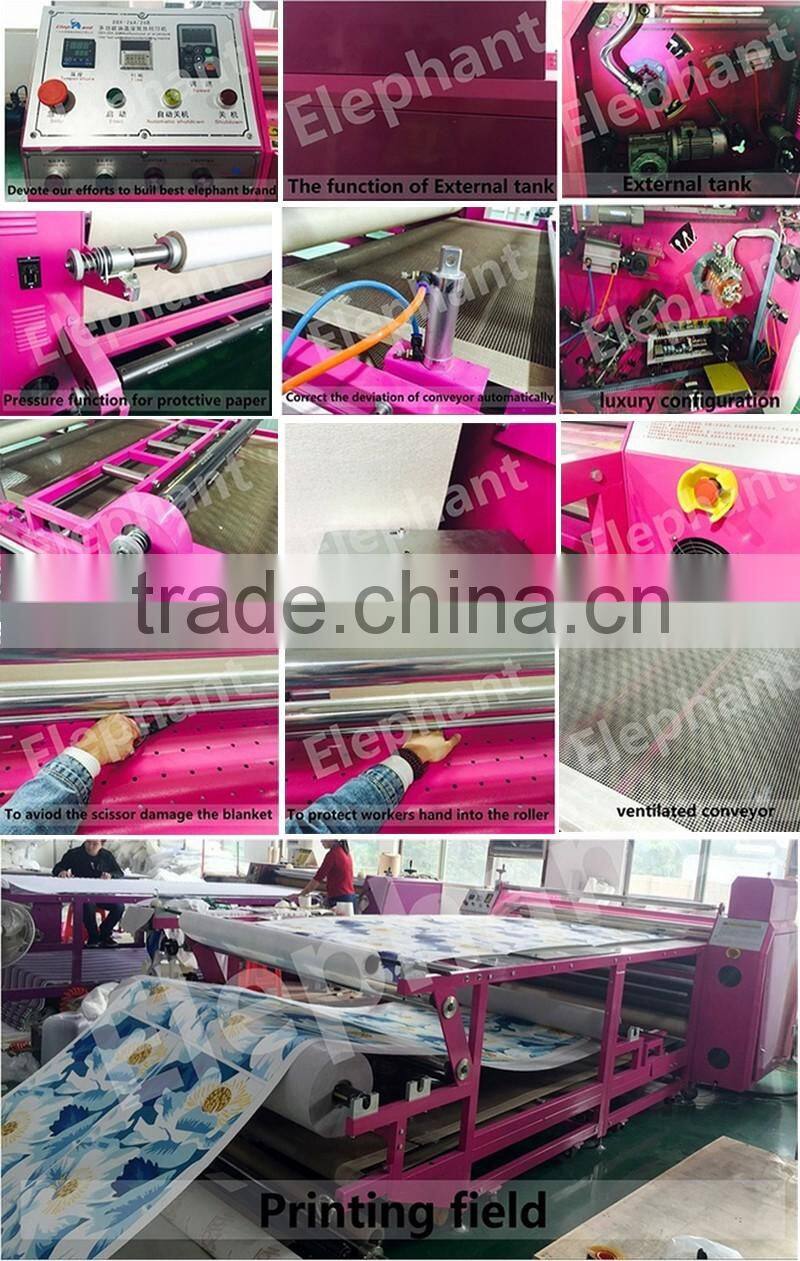

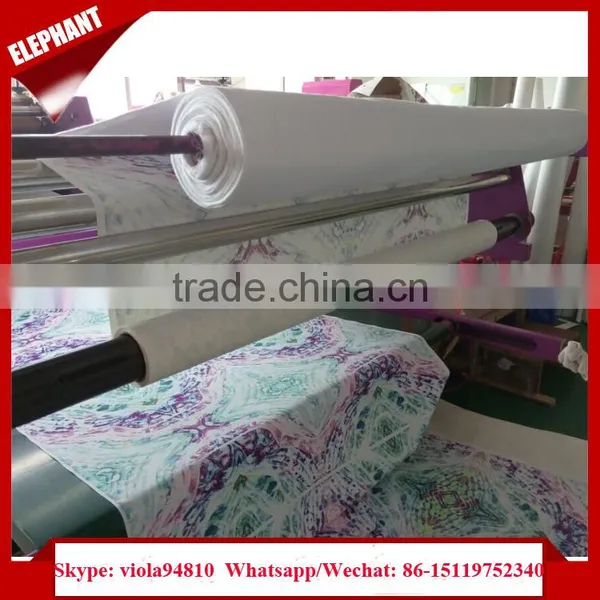

Roller heat press Machine details:
Roll heat press machine video:
1./watch?v=wzluTGp2jW8
2./watch?v=j0ZrH0MOT1E&feature=youtu.be
3./watch?v=eBmIQxRPewk
Express & Payment
Order operation
Guangzhou Elephant Digital Technology CO.,LTD
Established in 2004, our factory had passed Audit report of SGS & ROHS Certification approval.
We are Original Epson, Mutoh and Mimaki Sublimation printer Agent, sublimation printer with high quality and competitive price. Also we are the one of four Korea Inktec sublimation ink Agent in China.
In the heat transfer business, we accumulate many years rich experience and win manysupport and faith from old and new customers. We hope to establish good relationship with creative doubleins and strengthen mutual cooperation.
1.how wide is the machine?
1.2M width, 1.7M width machine; 1.9M width machine , can be customized.
2. how about the speed ?
150-200m/h
3.does the Press rolls the Fabric once it is printed or you have to roll it on a different
Machine?
it can roll fabric after heat press, but we suggest you can roll it on other machine - roll yard machine to collect fabric as attachment, coz when finished printed , the fabric still has temperature about 90-150, if Roll the printed fabric, the pattern become shape by pulled, and color,fabric will affect , more important if stretch fabric, we still advice to keep the stretch fabric in 5/6hours after finished printing then roll it , or one night ,the color will more perfect.
4.are you able to print on dark Fabrics? if so how dark and on what contents? can it print
on stretch goods?this press machine can press light color fabric,not dark fabric but can print on stretch fabric
5.how many yards or meters per hour?
150-200 meters per hours, depend on the fabric and the transfer speed.
6. do you supply Paper and ink and Parts?Prices per gallon Prices per Paper yards ?

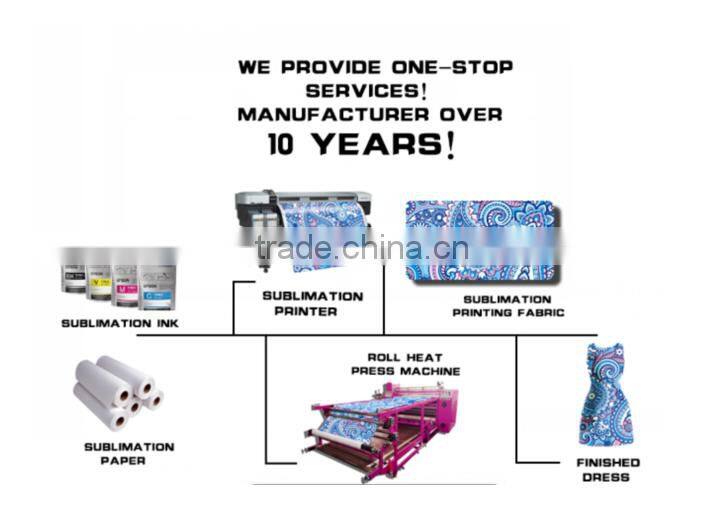

we also offer paper and ink! We provide one-stop services!
7.do you have representatives in U S A ?
we have not representatives in USA,but we sale those machine all over the world!
8. How we keep the maintance of this roll heat transfer machine? how competitive are you
with your prices compare to your competition ? how long will it take ?
we can arrange our technicist to set up the machine and teach you to maintenance and train how to
use that machine! the printer and press machine delivery time is 15-20days!
9.does it do stretch lycre and nylon and what colors?stretch polyester lycra fabric,Satin,curtain etc,but not suitable for nylon, need light color fabric, better
of white color fabric!
by the way,coz the printer can print any color,and press machine can press any pattern color on white color,so do not need other color fabric to press!
