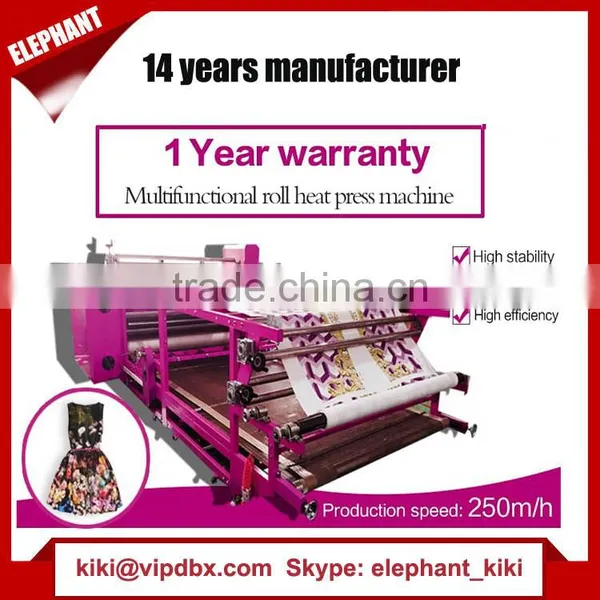

3.2 roll to roll heat press machine oil heating rotary heat press
- 20 Piece / Pieces per Month
- guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Diagraph/ALLEN CODING 40/25c HOT FOIL CODER
- Diagraph/ALLEN CODING 50/30 SUPER COMPACT HOT FOIL CODER
- dongguan low price color image printe,badge flag printer,plate transfer,Tshirt label printer,digital degisn LOGO transfer
- dongguan low price plate transfer,color image printe,badge flag printer,Tshirt label printer,digital degisn LOGO transfer
- factory cheap price ,badge flag printer,Tshirt label printer,digital degisn LOGO transfer,plate transfer,color image printe
- factory cheap price Tshirt label printer,digital degisn LOGO transfer,plate transfer,color image printe,flag printer
Product Details
Condition: | New | Plate Type: | Other, heat transfer machine | Place of Origin: | Guangdong, China |
Brand Name: | DBX heat transfer machine | Model Number: | CDBXHTM002 | Usage: | Cloths Printer, Label Printer, Paper Printer, Other, Cloths Printer, Label Printer, Paper Printer, heat transfer machine |
Automatic Grade: | Automatic | Voltage: | 380V or 220V | Gross Power: | 12 KW |
Dimensions(L*W*H): | 2.1M*3.4M*1.4M | Weight: | 1500KG, 1500KG roller heat transfer machine | Certification: | ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

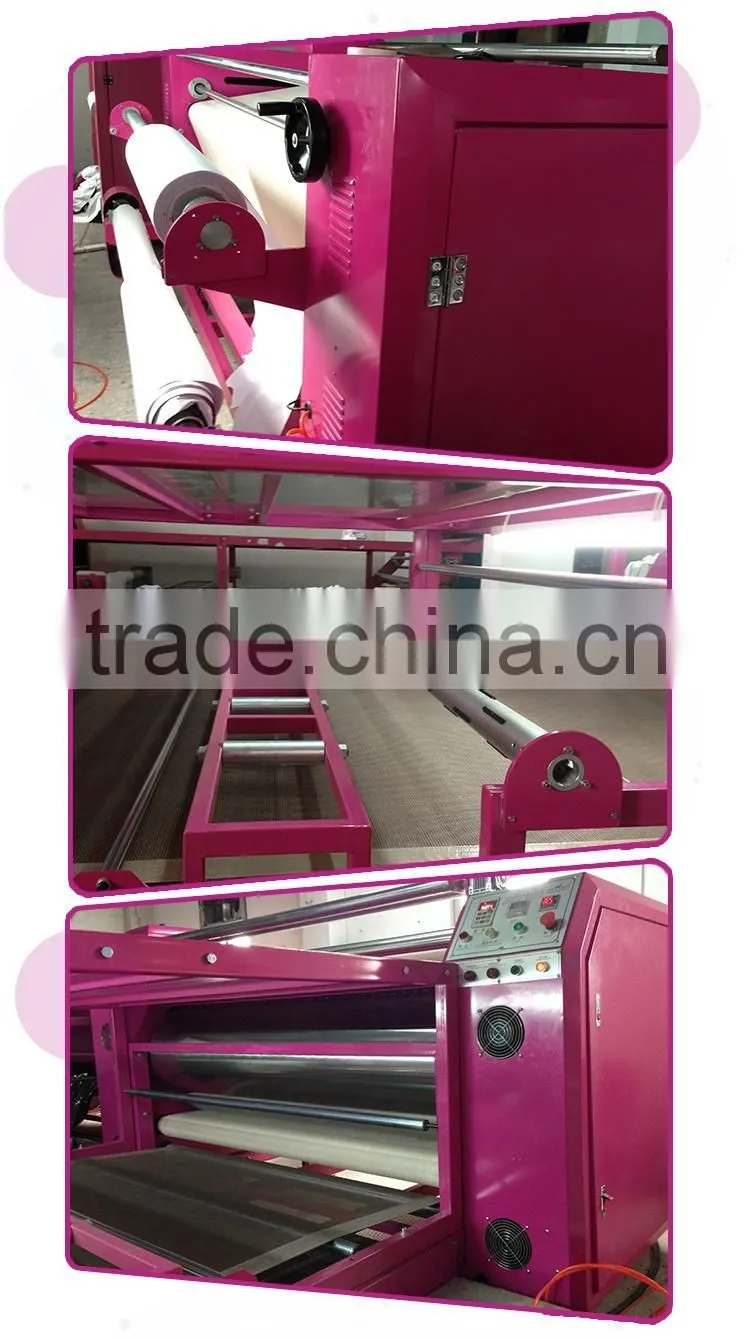

3.2 roll to roll heat press machine oil heating rotary heat press
Manufacturer and professional in Sublimaiton printing for over 10 years!
1.Continuous speed adjustment system
2. speed: 150-200meters/h
3. heat transfer printing machine and heat transfer paper printing machine
4.Energy:380v or 220v
5.Air pressure
6.Oil heating
Data Sheet | ||||
Model | DBX-1200B | DBX-1700B | DBX-1900B | DBX-3200B |
Heating Media | Oil, 100% full | |||
Voltage | 3 phase, 240V/380V | |||
Power | 15kw | 21kw | 27kw | 40kw |
Number of heating elements | 21 or 24 | |||
Diameter of Drum | 420mm (Available in 600mm/800mm) | |||
Transfer Speed | Transfer paper :2m/min-offset paper :3m /min | |||
Max Temp. | 260 degree | |||
Transfer Width | 120cm | 160cm | 185cm | 320cm |
Felt Width | 130cm | 178cm | 198cm | 335cm |

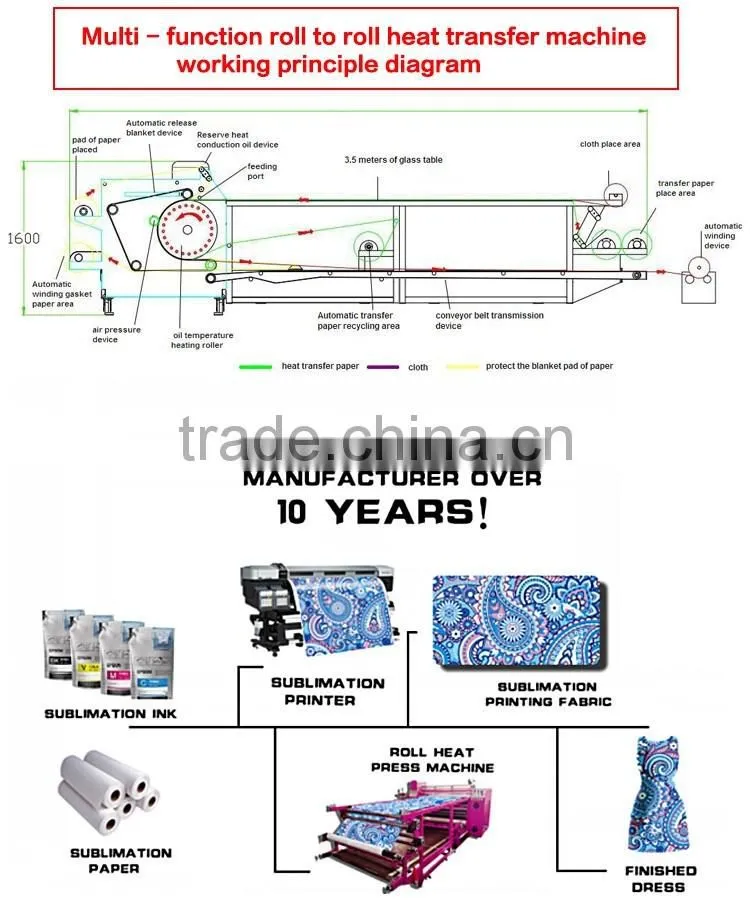

Process Path | Deeding in through top drum | |||
Function of Roll-to-roll | yes | |||
Function of piece-by-piece | yes | |||
Number of feeding rollers | 3 | |||
Number of collecting Rollers | 3 | |||

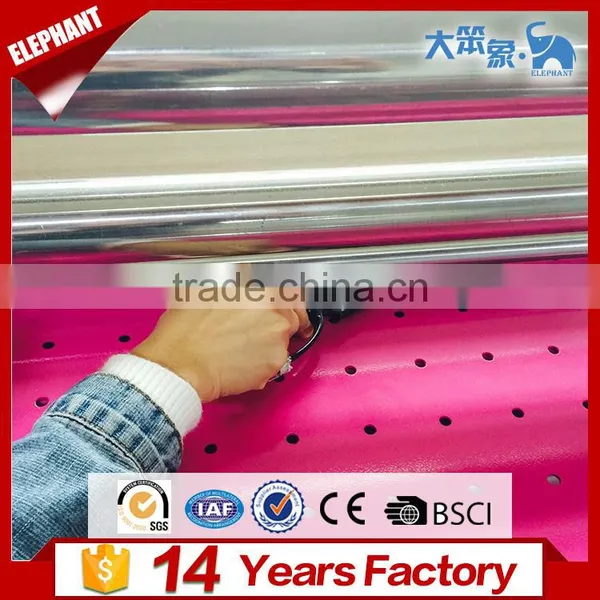

Work table | Yes,no glass | |||
Transfer Pressure Bar | Without including | |||
Machine Weight | 1800kg | 2100kg | 2400kg | 3200kg |
Working table size | 1200x3500mm | 1700x3500mm | 2200x3500mm | 3200x3000mm |
1.7m Large format garment roller sublimation heat transfer press printing machine

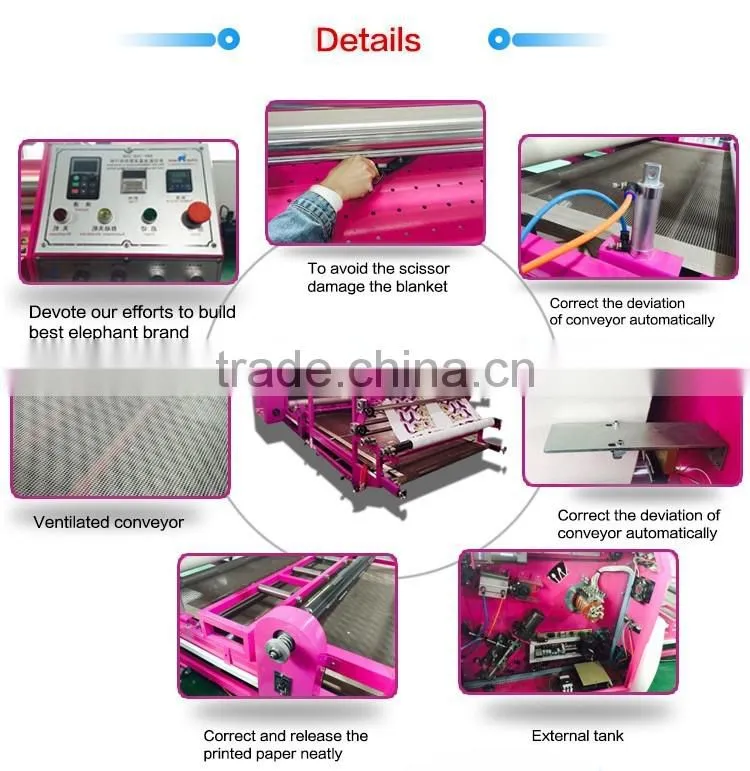

2. Having automatic device for deviation and correction of blanket and conveyor belt
3. Having the function to avoid the scissor damaging the blanket
4. The Blanket can be off the heat drum competely for 8cm distance. No need to cool down the
5. Machine has explosion-proof equipment and emergency stop button,more safe.
6. Having the outer oil tank which is more easy to fill in the oil and more safe
7. With breathable conveyor belt which make fabric heat dissipating faster and prevent color
8. With updated air expanding equipment for sublimation paper, finished paper and tissue paper.
More detail :
1.The most advanced technology and imported units arew adopted by machine controlling
system with automatic positioning , accuracy together with security ,electronic constant
temperature controlling wtih high accuracy, long service life and other features.
2.Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and
stable temperature.
3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is
convenient for operation ith swiftness and high reliablity.
4. Equipped with continuous speed adjustment system,you can adjust printing speed as you
need ,The roller was heating up with oil and temperature heating system.
5. Roller heat transfer Digital t shirt printing machine, one year warranty.
We provide two kinds of products and services:
1. We have our own brand,currently the sales region covers 28 countries and regions around the world. We specialize in this field for more than 10 years, with the strength of market, with good quality and pretty competitive price.
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
1. Q:What’s the width of your roll heat press machine?
A:120cm, 170cm, 190cm, 220cm, 260cm, 320cm etc.
2. Q: What’s the roller diameter?
A:420mm, 500mm, 600mm etc.
3. Q: How about the speed ?
A:420mm: 100-150m/h, 500mm: 150-200m/h, 600mm: 180-250m/h.
4. Q:Blankets and conveyor belt can automatic correction or not?
A:Yes, blankets and conveyor belt can automatic correction
5. Q: Power consumption?
A:420mm: 18-22KW/H, 500mm: 20-25KW/H, 600mm: 28-30KW/H
6. Q: How long need to change the blanket?
A:Heating blanket can use for 2-3 years
7. Q: Which kind of fabric can work for sublimation?
A:better 100%polyester, or polyester mixed fabric, such as poly/cotton, poly/lycra, satin, chiffon, etc. please note: the
polyester composition should be over 60% and the fabric color better white color or light color.
8. Q: Do you have representatives in U S A ?
A:we have not representatives in USA,but we sale those machine all over the world! And we have customers there, you
can come there to check our machines.
