1.7M Roll to Roll Heat Press Printing Printer Machine
US$ 8,000 - 138,000
/ Set
1 Set(Min. Order)
- guangzhou
- T/T Credit Card
You May Like
-
1.7M Automatic Oval Screen Roller Heat Press Printing Printer Machine
-
Oil Heating Roller Heat Press Transfer Machine Controller Presser for Fabric
-
Heat Roller Roll to Roll Transfer Press Printing Machine for Fabric
-
Gunangzhou factory manufacture 1.7M Roller Heat Transfer Printer Press Machine
-
Big Roller to Roll Heat Transfer Press Printing Machine Controller
-
Big Roller Roll to Roll Sublimation Heat Transfer Machine
Product Details
| Condition | New | Plate Type | Other, roll heat press transfer machine | |
| Place of Origin | Guangdong, China | Brand Name | DBX -roll heat press transfer machine | |
| Model Number | DBX-roll heat press transfer machine | Usage | Other, roll heat press transfer machine | |
| Automatic Grade | Automatic | Voltage | 380V/220V | |

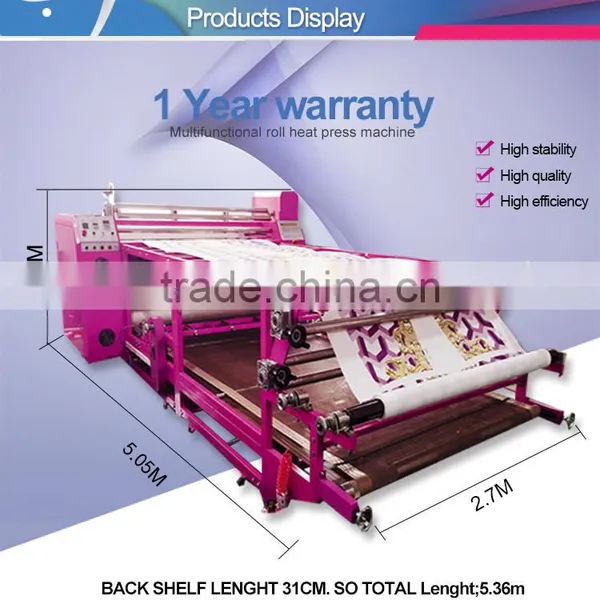

| Gross Power | 12-15KW | Dimensions(L*W*H) | 2800*1300*1600mm | |
| Weight | 1600kg | Certification | CE Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

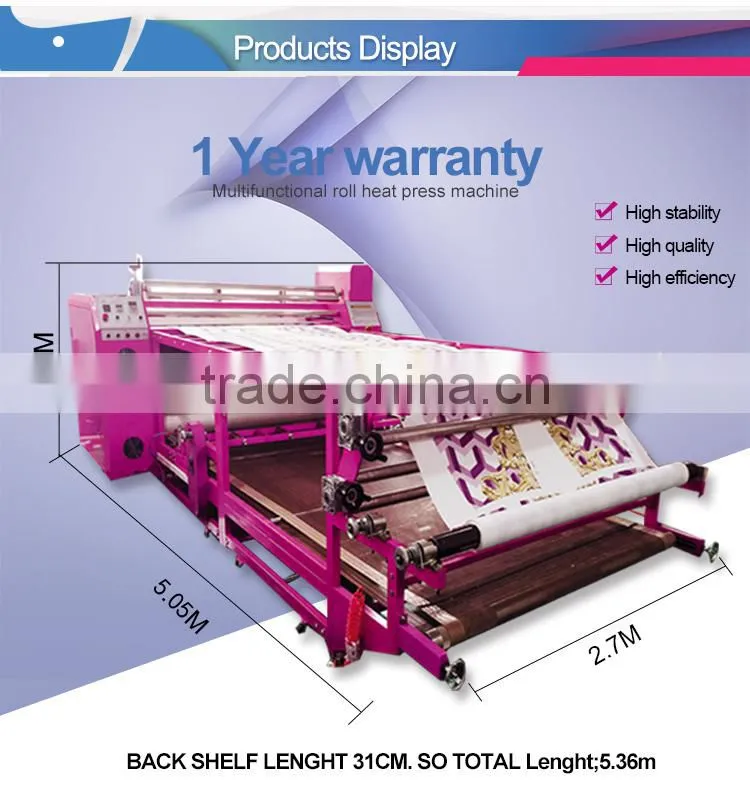

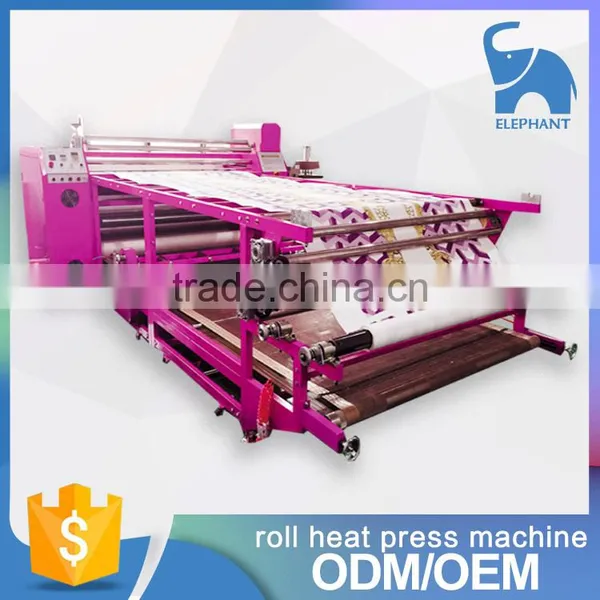

1.7M Roll to Roll Heat Press Printing Printer Machine
Product Description
Rotary Heat Press 100% Full Oil Drum Elephant-B model is now available.
There is external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.

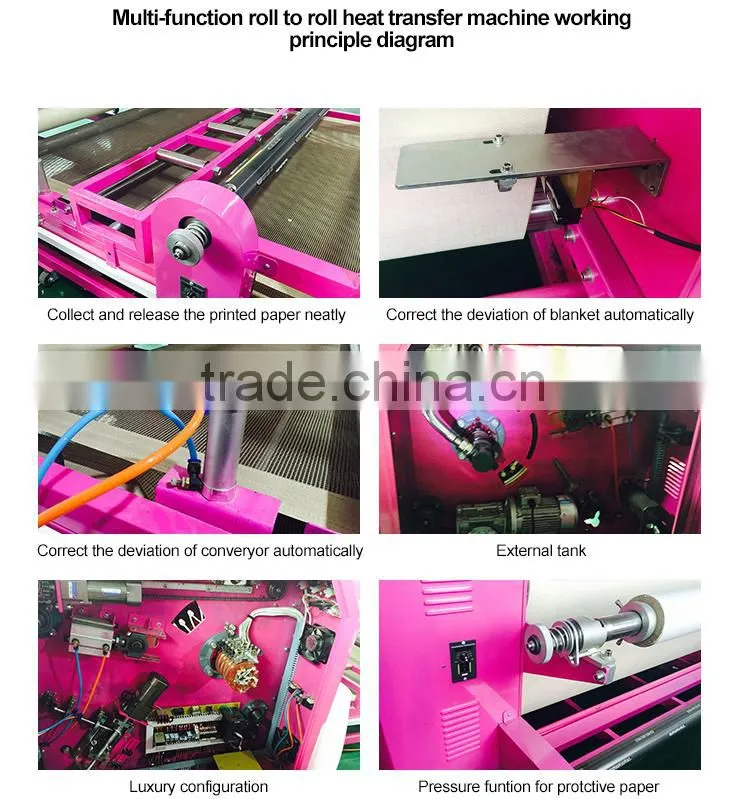

- Aligning Blanket Automatically
- Detecting Temperature on the Surface
- Filling Oil Drum to 100% Full (Saving 30% Power)
- Controlling Temperature Precisely (Controllable Silicon Solid State Relay)
- Minimizing Maintenance Effort (Slip Ring)
- At Least 70% Blanket Coverage
- Blanket Tension Controlled by Piston
- Fabric/Transfer Paper/Tissue Paper Tension Controlled by Compressed Air

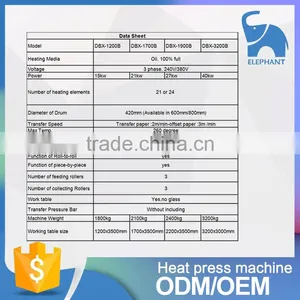

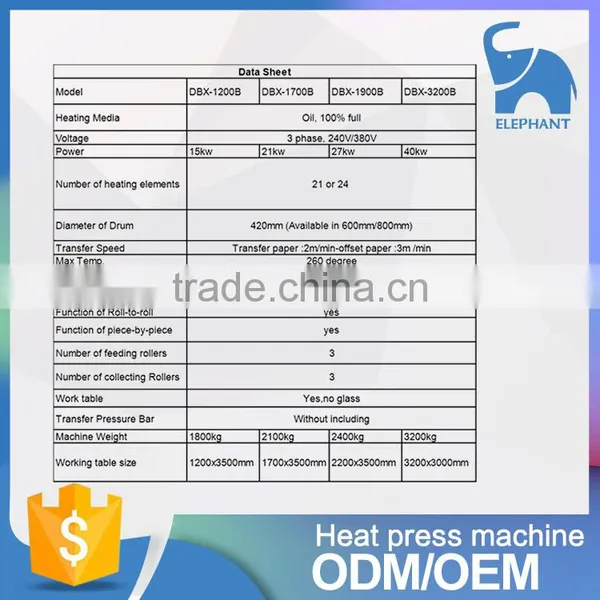

| Data Sheet | ||||
| Model | DBX-1200B | DBX-1700B | DBX-1900B | DBX-3200B |
| Heating Media | Oil, 100% full | |||
| Voltage | 3 phase, 240V/380V | |||
| Power | 15kw | 21kw | 27kw | 40kw |
| Number of heating elements | 21 or 24 | |||
| Diameter of Drum | 420mm (Available in 600mm/800mm) | |||
| Transfer Speed | Transfer paper :2m/min-offset paper :3m /min | |||
| Max Temp. | 260 degree | |||
| Transfer Width | 120cm | 160cm | 185cm | 320cm |
| Felt Width | 130cm | 178cm | 198cm | 335cm |
| Process Path | Deeding in through top drum | |||
| Function of Roll-to-roll | yes | |||
| Function of piece-by-piece | yes | |||
| Number of feeding rollers | 3 | |||
| Number of collecting Rollers | 3 | |||
| Work table | Yes,no glass | |||
| Transfer Pressure Bar | Without including | |||
| Machine Weight | 1800kg | 2100kg | 2400kg | 3200kg |
| Working table size | 1200x3500mm | 1700x3500mm | 2200x3500mm | 3200x3000mm |
Why Choose elephant roll heat press machine?
- ·Long service life, save your cost.
- ·One year warranty
- ·Best digital technology support - avoid problems during production.
- ·High speed at 250-300 Meters/hour - Improve production efficiency.
Features of Elephant New Model Roll Heat Press Machine:
1.Prevent workers hand into the cylinder (when they are working)
2.Having automatic device for deviation and correction of blanket and conveyor belt

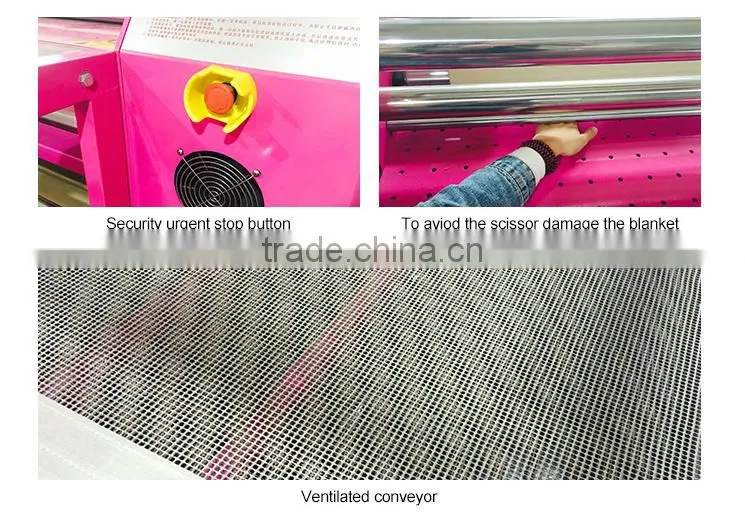

3.Having the function to avoid the scissor damaging the blanket
4.The Blanket can be off the heat drum competely for 8cm distance. No need to cool down the
blanket when you want to stop the machine which saves energy, it can also prevent the blanket
burn out when power off suddenly.
5.Machine has explosion-proof equipment and emergency stop button,more safe.
6.having the outer oil tank which is more easy to fill in the oil and more safe
7. With breathable conveyor belt which make fabric heat dissipating faster and prevent color ghosting
8.With updated air expanding equipment for sublimation paper, finished paper and tissue paper.
6.having the outer oil tank which is more easy to fill in the oil and more safe
7. With breathable conveyor belt which make fabric heat dissipating faster and prevent color ghosting
8.With updated air expanding equipment for sublimation paper, finished paper and tissue paper.
