Large Working Platen 3d Vacuum Sublimation Machine

Large working platen 3d vacuum sublimation machine
1.Easy operaration
2.Fast Printing Process
3.Large working platen
4.Accurate Digital Control

Model: 3D Vacuum Sublimation Press machine
					the working area		450 × 500mm
					Input voltage		220V/110V/50HZ
					Gross Power		3800W
					Automatic Grade		Automatic
					Color & Page		Full color
					Heat platen size		50*48cm
					Usage		3D Curved heat press
					temperature range		0 ~ 399 °C
					the warm-up time		15 ~ 30min
					vacuum pressure		(-0.1)KPa
					weight		180kg
					Dimensions(W*D*H)		1320*1000*1100mm
					Packaging Details:		carton and wooden package

3D Vacuum Sublimation Press machine is suitable for the entire 3D surface or irregular surface forming full-color thermal transfer process,IT has a pneumatic drive pump built in that generates a vacuum environment for the heat transfer process, which benefits the sublimation heat transfer printing quanlity and saving more time and work and increasing market competitiveness.it scope of application such as Phone case, flat panel,mouse housing,advertising, logo signs, gifts,pre-coated metal plates,stone, ceramic glass, wood and so on.It is ideal equipment to improve production efficiency and quality.
         Vacuumsub 3D sublimation heat press machine brings you more possibilities of printing with curved or multiple-surfaces sublimation blanks.

Efficiency

-Easy operation

There is no need to pull or push handles. Simply place the printing objects between the vacuum film and the platen, then turn on the operation buttons, pressure will generated by pneumatic drive and will be evenly transferred to the surfaces of the 3D printing objects

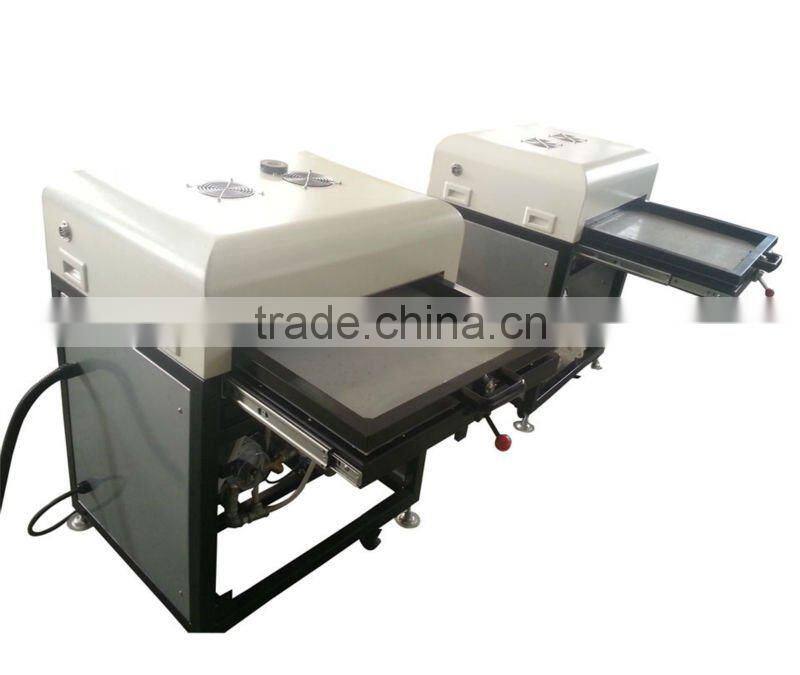

-Dual work platen saves your valuable time and labors, Fast Printing Process
The Vacuumsub 3D sublimation heat press machine is built with dual working platens, you can prepare sublimation blanks with one platen when the other one is working, this construction saves your time when dealing with batch production.

-Large working platen

The size of the working platen is up to 45 x 50cm, it allows more products to be produced for one time.

- Accurate Digital Control

Digital controlling and monitoring system lets you know the exact temperature of the 3D printing objects.

General Operation:

Setting

-Set heating time and temperature accordingly

Preheating

-Pre-heat the machine for approximate 15-30 minutes to reach to the expected temperature

Heating

-Place the printing substrates on the loading platern then cover the vacuum film on to it

-Exhaust air

-Slightly adjust the position of the printing substrate by hand to eliminate the air gaps

-Push the load platern into the machine,heating start automatically

Finishing

-Pull out the load platen

-Remove the printing substrate

-Cool down the substrate accordingly

Safty

Electric

-This machine contains high voltage elements.To prevent electric shock, do not open the machine cover when the machine is on and in use. Additionally, do not open the drive or control devices even if the power is off when the power cord is plugged in.

-Make sure the machine is power off for 10 minutes and use a multi-meter to determine if the voltage has dispatched before conducting any wiring adjustments or inspection.

-Ensured the machine is grounded.

-Make sure wiring and other machine inspections are conducted by qualified technicians.

-Any contact surface of human body should be completely dry to avoid electric shock when operating the machine.

Fire

-The internal temperature of the running machine is higher than 150°C, please make sure keep all flammable materials away from the machine

-In the event of a machine failure disconnect the power supply,manually remove the material loading pallet to avoid potential fire risk

-A machine perator must be present when machine is turned on.

Notice

-Please use proper lifting tools to move the machine

-Do not stack,tilt or invert machine crate

-Do not expose the machine to rain or moisture

-Do not turn on or operate the machine if it is damaged,missing component, or incorrectly confugured

-Do not cover the upper cooling fan

More important:

Please Make Sure Wearing A heat resistant Glove During the about operartion to prevent frombeing hurt by the machine.
