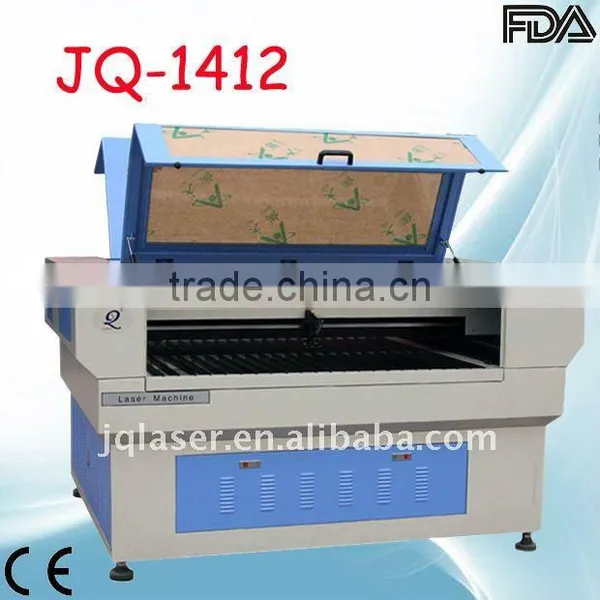

JQ-1412 Laser Cutting Machine
1. Technical Parameters
Laser Engraving Machine Technical Specifications | |
Item / Model | JQ-1412 |
Cutting area | 1400mm x 1200mm |
Laser power | 150w (Reci brand laser tube) |
Laser type | CO2 sealed laser tube,water-cooled,10.6um |
Cutting speed | 0-60000mm/min |
Laser Output | 1-100%software setting |
Resetting positioning accuracy | ≤±0.01mm |
Power supply | 110V~120V / 220V~240V, 50~60Hz |
Operating temperature | 0 - 45°C |
Operating humidity | 5 - 95% |
Min. shaping character | English 1.0mm x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | Tajima,CorelDraw, PhotoShop, AutoCAD |
Driving system | 3-phase stepper motors |
Cooling mode | Water-cooling and protection system, CW-6000 water chiller |
Equipment Dimensions | 1960 x 1500 x 1120mm |
Weight: | 550kg |
Optional Spare Parts | Up-down lifting table, honeycomb table, red light pointer |
Recommended Spare Parts | Laser Tube, Lens and Mirrors |
150w Reci brand laser tube, able to cut most non-metals.

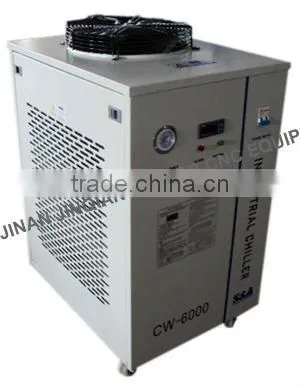

Water chiller CW-6000 (refrigerating output: 2,400W) cools and protects the lasertube, ensures good laser beam quality and stability.
Other advanced accessories (like linear ral made in Taiwan, lens and mirrors imported from Singapore, etc) improve the machine precision and performance.
2. Applicable materials
die board, plywood, sponge, foam, various woods, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials,etc.
3. Applicable industries
die cutting, advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry,etc.

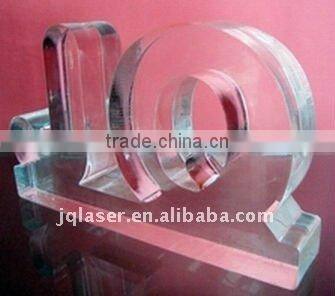

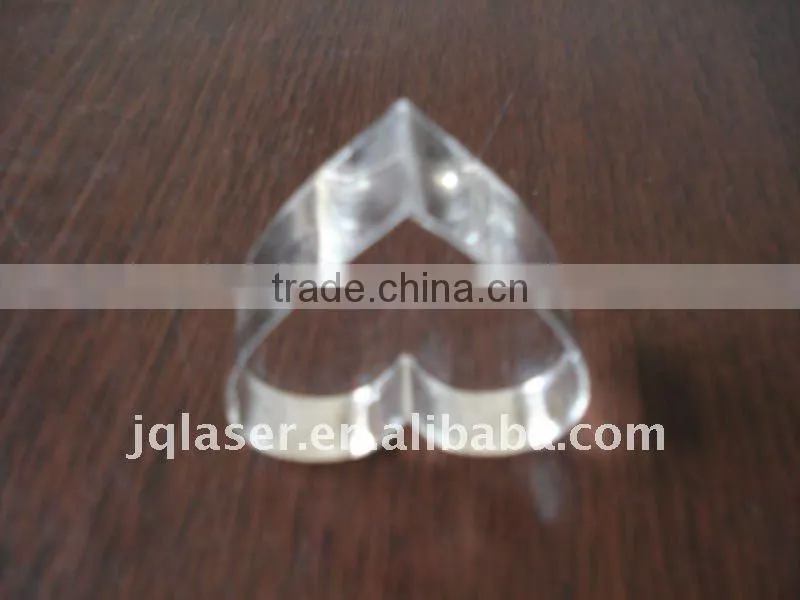

4. Samples
