fiber laser metal pipe laser cutting machine 1000w
- 300 Set / Sets per Month
- Qingdao/Shanghai/Ningbao
- T/T Credit Card
- metal cabinet laser cutting metal machines for sale
- new high precised fiber laser cutting machine 500w
- kitchenware mass volume cutting fiber laser machine
- economic fiber laser metal tube laser cutting machine
- fiber laser metal tube cutting machine for sports equipment
- fiber laser metal tube cutting machine for electric bike
Product Details
Condition: | New | Laser Type: | Fiber Laser | Applicable Material: | Metal |
Cutting Thickness: | 0.2-10mm | Cutting Area: | diameter 200mm | Cutting Speed: | 0-40M/MIN |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Cypcut |
Graphic Format Supported: | AI, DWG, DXF, PLT | Place of Origin: | Shandong, China | Brand Name: | JQ |
Model Number: | QG6020 | Certification: | CE, Other, CE, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
plywood package
Product Description

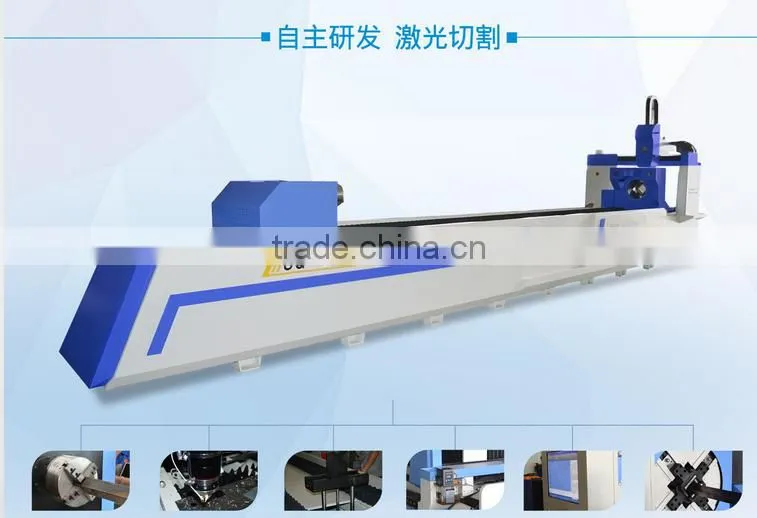

fiber laser metal pipe laser cutting machine 1000w
Jinan JinQiang Laser CNC Equipment Co.,Ltd, located in the beautiful Spring City Jinan, was established in 2004. It is one of the most influential specialized manufacturers and suppliers of laser equipment in China.
With powerful R&D strength, being market-oriented, many years of experiment and practice, JQ LASER has developed a new advanced solid laser cutting system with large format and gantry structure.

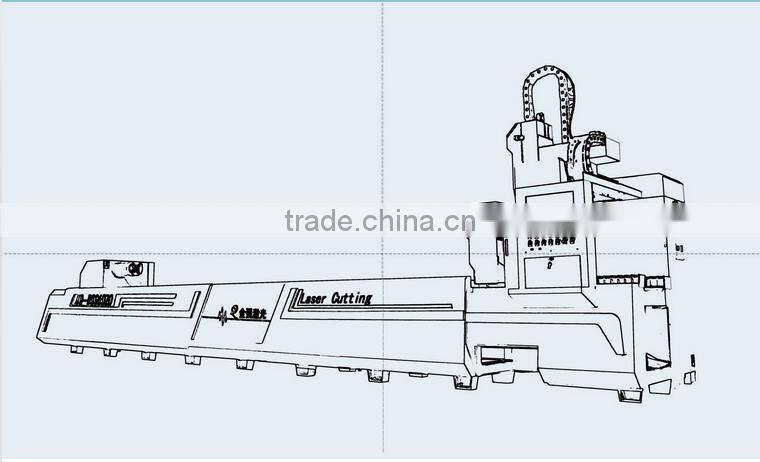

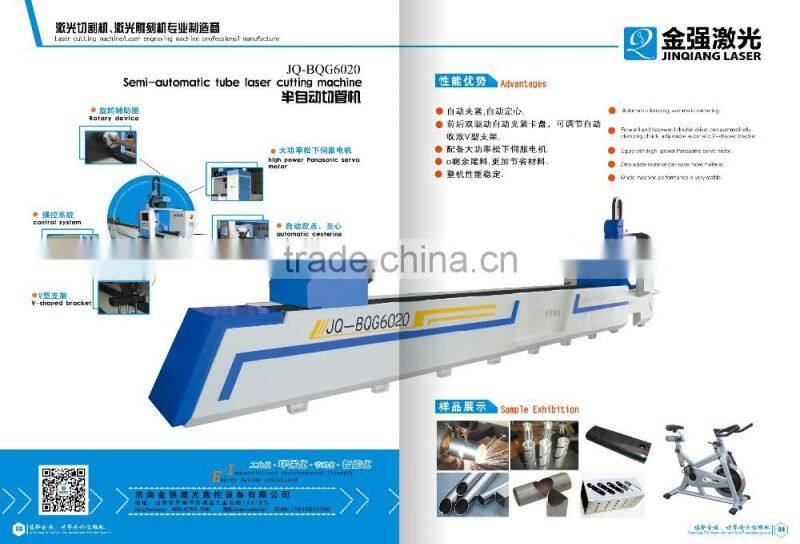

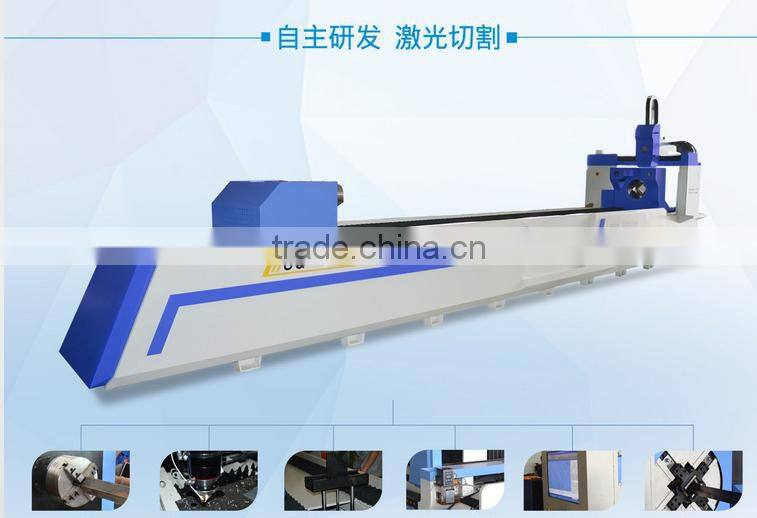

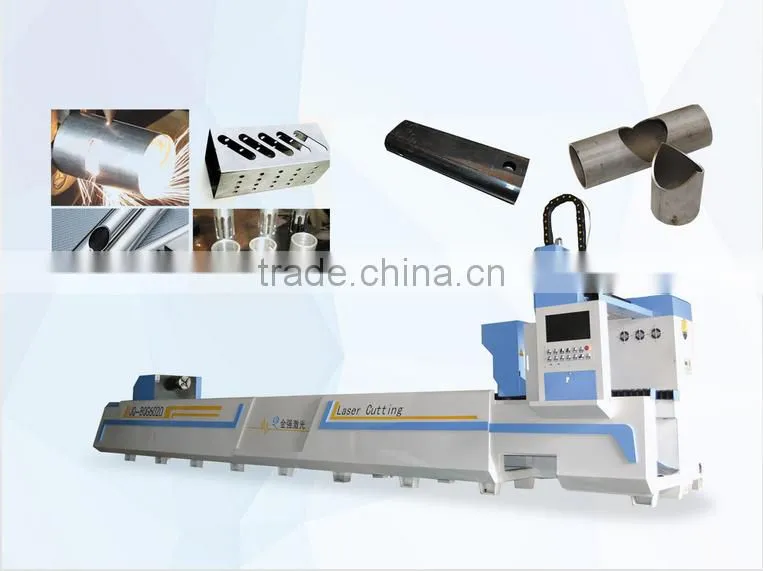

JQ-QG6020 is independently researched by JQ LASER. Machine is equipped with intersecting curve cutting and arbitrary angle bevel cutting function; it is mainly used for cutting pipe, tube and oval tube. Characteristic of JQ-QG is high-efficiency and high-precision. Suitable industry like: sport equipment, tube industry, medical equipment, etc.
Advantage of Fiber laser cutting machine:
1. automatic clamping, automaatic centering

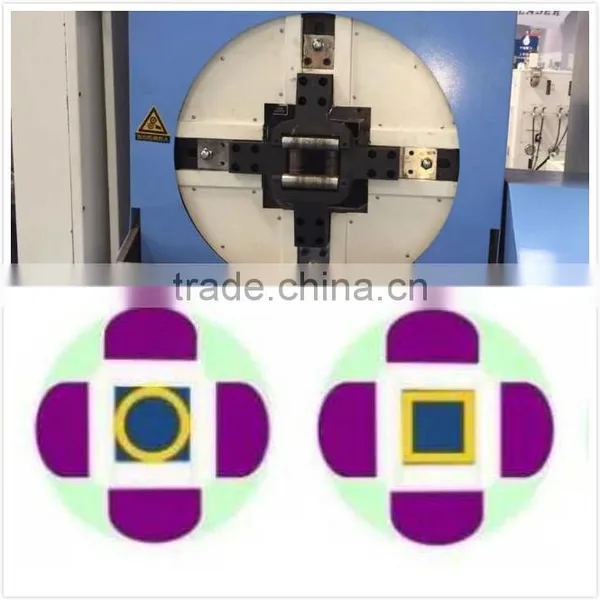

2. forward and backward double driver can automatically clamping chuck, adjusable automatic V-shaped bracket
3. equip with high power panasoic servo motor
4. Zero waste materials can save more cost
5. whole machine performance is very stable
6. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
Technological parameters:
Model | JQ-QG6020 |
Max. cutting length | 6m |
Laser generator | Raycus brand 1000-watt fiber laser |
Max. cutting diameter | 200mm |
Cutting thickness | 0.2mm-6mm steel/ 0.2-10mm stainless steel |
Laser wavelength | 1080nm |
Rated power | 10-100% |
Water chiller | Hanli |
X, Y-axis repeat location accuracy | 0.01mm |
X, Y-axis fast moving speed | 30M/min |
Min cutting line width | 0.02mm |
Max. cutting speed | 12M/min |
Applicable materials
Applicable to fast cutting on plate or tube in metal, mainly for cutting on SS, carbon steel, Manganese steel, galvanized plate, alloy plate, rare metal.
Applicable industries
Widely used in Aerospace navigation, kitchen applicance, electic control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processig
CE standard exported wood case package
Warranty and after-sales service
1. Two years guarantee of the whole machine.
2. CE and FDA certificate,the machines are produced according to standard.
3. We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve.
4. 24 hours internet service by sending emails and Videos,communicating online or calling.Door to door technical group service. English software, user manual and detailed Videos CD.
FAQ
1. Q:Are you a factory or trading company?
A: We are a factory
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai .
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q:How can I get some samples?
A: We are honored to offer you samples.

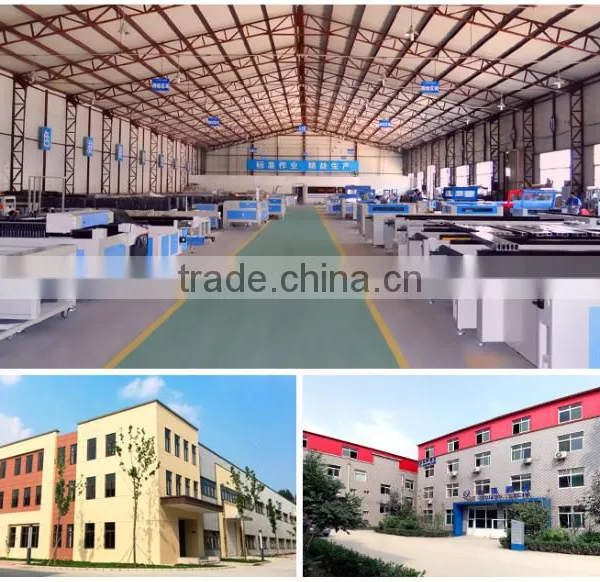

Company Profile

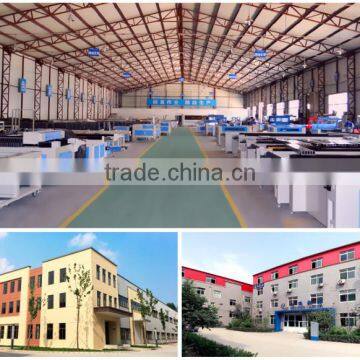

Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world.
Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day.
Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system.
We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information.
Selecting JQ laser the world will become yours !
