2mm Metal Laser Cutting Machine Wood Cutting Machine
- Qingdao
- T/T Credit Card
You May Like
-
Good Quality Metal Non-metal Laser Cutting Machine for Sale
-
Big Size CNC Glass Laser Cutting Machine With 1500mm*3000mm
-
Jq-1325 Double Heads Laser Cutter Machine
-
Metal and Non-metal Mixed Laser Cutting Machine 1325
-
Picture Frames Laser Cutting Machine
-
Laser Cutter Equipment Co2 for Wood Acrylic Laser Machine
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Cutting Thickness | 30mm | |
| Cutting Area | 1300*2500 | Cutting Speed | 0-30000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | leetro6565 | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | JQ laser | |
| Model Number | JQ-1325 | Certification | CE, SGS, Other, CE, SGS, FDA | |
| After-sales Service Provided | Engineers available to service machinery overseas |
plywood case in container
Product Description

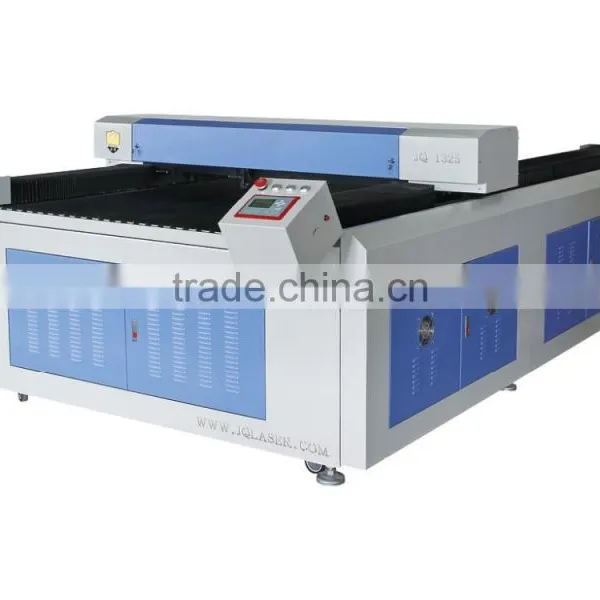

2mm metal laser cutting machine wood cutting machine
Product Features
1.Configure higher power laser tube.
2.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision.
Product Parameter
Machine Model | JQ1325 glass laser engraving machine |
Working Size | 1300mm*2500mm 51in*98in (L*W) |
Laser Power | 80W/100W/150W |
Laser Type | CO2 sealed high quality, water-cooling |
Driving System | Stepper motor |
Cutting Speed | 0-40000mm/min (0-1575 inch/min) |
Engraving Speed | 0-70000Mm/min (0-2756 inch/min) |
Resetting Position Accuracy | ≤±0.01 |
Power Supply | 220V/50Hz, 110V/60Hz, |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min. Shaping Character | English 1.0*1.0mm |
Operating System | PCI OR USB (DSP 6535) |
Graphic Format Supported | BMP, PLT, AI, DST, DXF |
Software Supported | Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension | 3350*2150*1250mm 131*84*49in |
Packing Dimension | 3450*2250*1350mm 134*87*52inch |
Net Weight | 1100kgs |
Applicable Industries
Garments sampling,large width tailoring,leather industry,shoemaking decoration,furnture,advertisement,packing and printing,molding and art craft industries,etc.
Applicable Materials
Non-metal materials such as Fabrics,leather,paper,acrylic,glass,films and
canvas,etc.
Guarantee and after-sale service
1)two years guarantee for whole machine except of laser tube and lens
2)24 hours technical support by e-mail, calling or door-to-door service
3)English software, user manual and detailed Videos CD
Samples
