Chinese Laser Cutting machine for wooden crafts
- 500 Set / Sets per Month
- qingdao
- T/T Credit Card
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Acrylic, MDF, Paper, Plywood, Wood |
Cutting Thickness: | 20mm | Cutting Area: | 1300*2500mm | Cutting Speed: | 0-40000mm/min (0-1575 inch/min) |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | laser cut 5.3 |
Graphic Format Supported: | AI, BMP, DST, DXF, PLT, Other, PLT, AI, DST, DXF, AI, BMP, DST, DXF, PLT, P, PLT, AI, DST, DXF | Place of Origin: | Shandong, China | Brand Name: | Jinqiang |
Model Number: | JQ1325 laser cutter | Certification: | CE, Other, CE, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard export plywood case.
Product Description
Chinese Laser Cutting machine for wooden crafts
1. Features of JQ1325 professional CO2 laser cutter
a. Large working area of 1300*2500mm for big materials.
b. The up to date software provides the output of original pictures, compatible with the graph formats such as CAD, CorelDraw, Photoshop,
3. Owns functions of restoring from power off, continuation on break point.
4. Adopt international linear rail, more precision.
5. With the drawer and the funnel design for collecting remnant material, it is convenient to use.
6. High quality water cooler, protect stable radiation and prolong the lift-span of laser
2.Technical Performance
Machine Model | JQ1325 CO2 laser machine |
Working Size | 1300mm*2500mm 51in*98in (L*W) |
Laser Power | 100W/150W/180W |
Laser Type | CO2 sealed high quality, water-cooling |
Driving System | Stepper motor |
Cutting Speed | 0-40000mm/min (0-1575 inch/min) |
Engraving Speed | 0-70000Mm/min (0-2756 inch/min) |
Resetting Position Accuracy | ≤±0.01 |
Power Supply | 220V/50Hz, 110V/60Hz, |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min. Shaping Character | English 1.0*1.0mm |
Operating System | PCI OR USB (DSP 6535) |
Graphic Format Supported | BMP, PLT, AI, DST, DXF |
Software Supported | Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension | 3350*2150*1250mm 131*84*49in |
Packing Dimension | 3450*2250*1350mm 134*87*52inch |
Net Weight | 1100kgs |

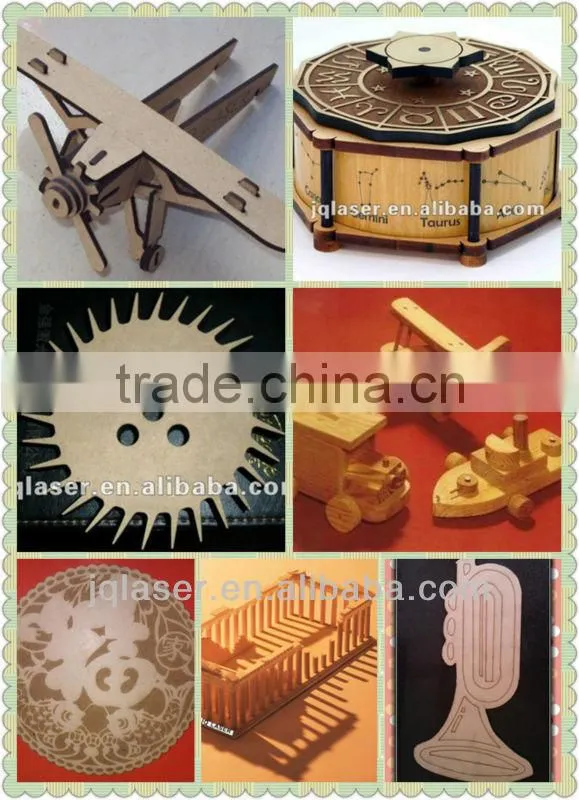

3.Applicabe material
acrylic, plastic, wood, MDF, die board, perspex , organic glass, rubber, leather, fabric, paper, cloth, fabric, dual-color boards. etc
The warranty after-sale service
1).CE and FDA certificate,the machines are produced according to standard.
2).Two years quality guarantee for whole machine except of laser tube and lens ;
3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;
4).The machines delivery is quickly,delivery time is short.
5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD
All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the future.

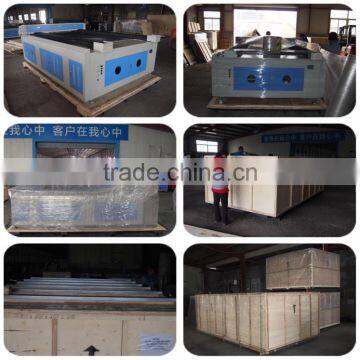

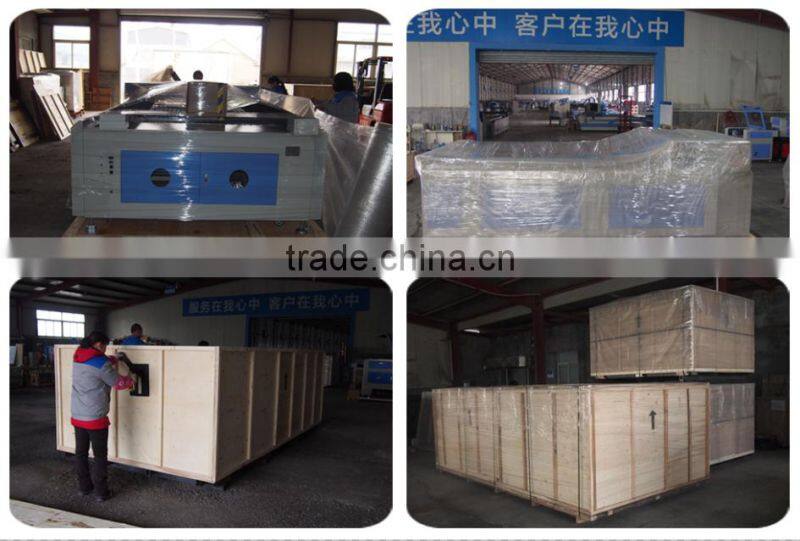

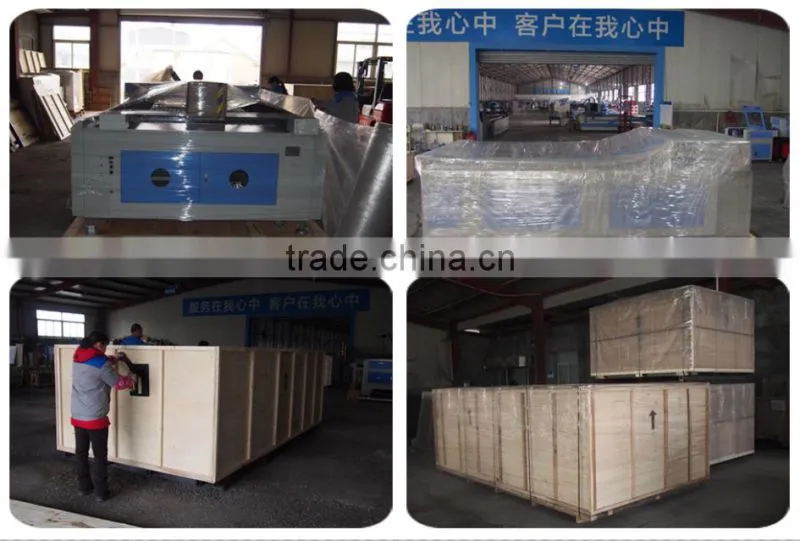

Package
Skype:jqlaser31,
Wechat/whatsapp: 0086 15550002101
Company Profile
Jinan JinQiang Laser CNC Equipment Co.,Ltd is located in Jinan High & New Technology Industrial Development Zone. We are committed ourselves to developing, producing and selling laser equipment. Our company supplies JQ series of laser engraving and laser cutting equipment, laser engravers and laser cutters. They are used in many fields. With high quality products and top after-sales service, we have won trust and support of customers from all over the world.
Our company is guided by the market-oriented concept as well as masterful technique, and regards "good service and customers' benefits" our rules. With technical development, and many years of research, our products are improved day by day.
Our philosophy is "Golden Quality, The Best Technique and Good Faith". We are trying to be a well-known company at home and abroad with the perfect and considerate after-sales service system.
We welcome customers from all over the world to cooperate with us. Please feel free to contact us for further information.
Selecting JQ laser the world will become yours !
