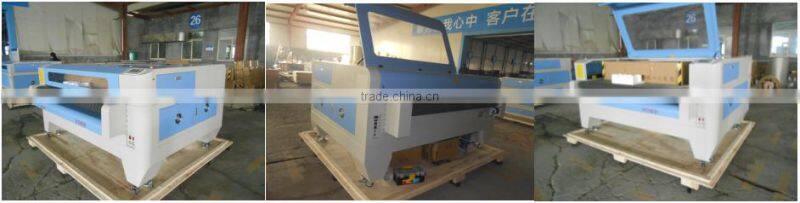

laser cutter for fabric
There is big improvement on this model machine,including moving system and machines features. The outlook is
more attractive, separated design is much easy for shipping and moving. Working efficient is much high mean
while reduce the labor and lower the cost. This machine proved to be warm welcome by the customers.
a. The rolls of the machine are able to roll up the large material automatically. Improved the working efficiency greatly.
b. Usually, the laser tube is installed above the machine body. This machine’s laser tube is installed in the machine body so it is more secure.
c. There are two control panels on the machine. The users could control the machine at both sides.
d. DSP control system and moderate using environment.
e. Some parts are imported and more durable like the mirrors and lens, rails, motors. etc.
f. Scientific ventilation equipments, high power exhaust fan and strong honeycomb worktable play a vacuum adsorption, which can make the soft material very flat.
Machine Model | JQ-1610 |
Working area: | 1600*1000mm |
Equipment Dimension | 2.3*1.6*1.16m |
Packing size | 2.45*2.23*1.4m |
Laser power | RECI 100W |
Laser type | CO2 sealed laser tube,water-cooled |
Engraving speed | 0-6000cm/min |
Cutting speed | 0-5000cm/min |
Power supply | 220V/50HZ , 110V/60HZ |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | 3 phases stepper motor |
Net Weight | 700kg |
Optional parts | Honey comb worktable, up&down worktable, red light pointer |
Applicable Industries: | kitchen, furniture, electronic components, cooling ventilation pipe, wood, cold-rolled signs, glass, plexglass, MDF, hardware, acrylic, compound materials, metal parts and nonmetal materials industry. |
Applicable Materials: | Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, oxe horns, resin animal grease,ABS boards, etc.
|
The warranty after-sale service
Guarantee for the whole machine: 2 years
Providing around-the-clock professional service to customers, any call for technical help will be handled in 24 hours
International after service department, and our engineers can speak English well, which make communication easy
Free training, free maintenance and free technical support within warranty period
We offer life-long free service in technical upgrading.
2014 Shanghai International Ad & Sign Expo on July, we showed JQ1610 on the expo
https://youtu.be/R30O2aZn_uc
About us - Jinan JinQiang Laser CNC Equipment CO., LTD
*Workshop & Showroom
Workshop is the product of intense laser manufacturing center gold, bear manufacturing various types of laser equipment. Factory workshop area of 5075 square meters, the plant’s existing staff of 46 people, including management staff4, the worshop has three steps, the 10 team composition, with annual production of non-metallic series 4030, 6040, 9060, 1290, 1390, 1490,; cutting 1325, 1525, 1530, 1610, 1630; metal series 1325-YAG, 1325-fiber, 1530-fiber and other conventional and non-standard laser annual output of 3,000 sets of CNC equipment manufacturing capacity.
*Exhibition in whole world
We participated in many international exhibitions, for example: Shanghai Exposition, Beijing Exhibition, Munich Exposition in Germany
