full automatic multi layer fabric cutting machine
Features of JQ cloth laser cutting machine:
a. The rolls of the machine are able to roll up the large material automatically. Improved the working efficiency greatly.
b. Usually, the laser tube is installed above the machine body. This machine’s laser tube is installed in the machine body so it is more secure.
c. DSP control system and moderate using environment.
d. Some parts are imported and more durable like the mirrors and lens, rails, motors. etc.
e. Scientific ventilation equipments, high power exhaust fan and strong honeycomb worktable play a vacuum adsorption, which can make the soft material very flat.
Technical Performance Of JQ
Machine Model | JQ-1830 |
Working Size | 1800*3000mm |
Laser Power | 80W/100W/150W |
Laser Type | CO2 sealed high quality, water-cooling |
Driving System | 3 phase Stepping motor |
Cutting Speed | 0-40000mm/min / 0-1575in/min |
Engraving Speed | 0-70000mm/min / 0-2756in/min |
Resetting Position Accuracy | ≤±0.01 |
Power Supply | 220V/50Hz, 110V/60Hz, |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min. Shaping Character | English 1.0*1.0mm |
Operating System | PCI OR USB (MPC 6535) |
Graphic Format Supported | BMP, PLT, AI, DST, DXF |
Software Supported | Coreldraw, Photoshop, AutoCAD, Tajima |
Machine Dimension | 350cm*230cm*150cm (L*W*H) 138in*90in*59in |
Packing Dimension | 370cm*250cm*170cm(L*W*H) 145in*98in*67in |
Net Weight | 1300 kg |
Applicable Material
Cuttingmaterial:Cloth,fabric,leather,woolen,paper,embroider,wood,acrylic,organic glass, rubber, plastic, compound material and other non-metal materials,etc
Engraving material: Cloth, fabric, leather, woolen, paper, embroider wood, acrylic, organic glass, rubber, plastic, compound material and other non-metal materials,etc
- The warranty after-sale service
² Guarantee for the whole machine: 2 years
² Providing around-the-clock professional service to customers, any call for technical help will be handled in 24 hours
² International after service department, and our engineers can speak English well, which make communication easy
² Free training, free maintenance and free technical support within warranty period
² We offer life-long free service in technical upgrading.

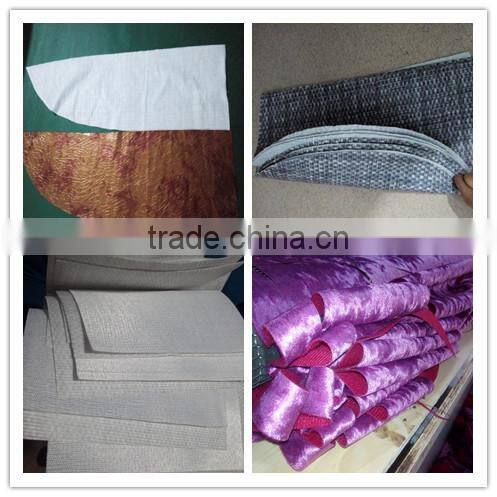

samples
All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the furture.
All these products are designed and developed by ourselves. We assure that we can provide goods with competitive price, high quality and best service. Looking forward to building a good relation in the future.
