Rubber Sheet Cutting Machine for Printing and Packing Industry

Rubber Sheet Cutting Machine for Printing and Packing Industry photo-1
Rubber Sheet Cutting Machine for Printing and Packing Industry photo-2
Rubber Sheet Cutting Machine for Printing and Packing Industry photo-3
Rubber Sheet Cutting Machine for Printing and Packing Industry photo-4
Rubber Sheet Cutting Machine for Printing and Packing Industry photo-5
Rubber Sheet Cutting Machine for Printing and Packing Industry photo-6
US$ 3,200 - 4,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type CO2
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Rubber, Stone, Wood
Cutting Thickness 0-30mm
Cutting Area 1300*900mm
Cutting Speed 0-40000mm/min (1575inch/min)
CNC or Not Yes
Cooling Mode Water Cooling
Control Software power cut
Graphic Format Supported AI, BMP, DST, DXF, PLT
Place of Origin Shandong, China
Brand Name Jinqiang
Model Number JQ-1390
Certification CE, SGS
After-sales Service Provided Engineers available to service machinery overseas

rubber sheet cutting machine for printing and packing industry

rubber sheet cutting machine for printing and packing industry

There is big improvement on this model machine,including moving system and machines features. The outlook is more attractive, separated design is much easy for shipping and moving. Working efficient is much high mean while reduce the labor and lower the cost. This machine proved to be warm welcome by the customers.



Model

JQ-1390

cutting area

1300x900mm

Laser power

80w/100w/150w/180w

Engraving speed



0-60000mm/min



Cutting speed

0-50000mm/min

Resetting positioning accuracy

0.01mm

Power supply

220V/50HZ  110V/60HZ

Operating temperature

0 - 45°C

Operating humidity

5-95%

Min. shaping character

English 1.0x 1.0mm

Graphic format supported

PLT,AI,DXF,BMP,DST

Software supported

CorelDraw, PhotoShop, AutoCAD, TiandaoTajima

Driving system

stepper motor

Cooling mode

Water-cooling and protection system

Gross Weight:

550KG

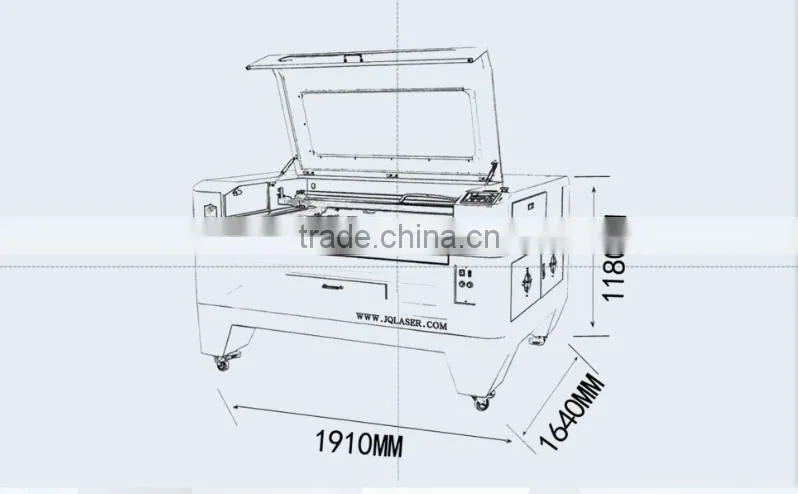

Machine Dimensions

1900*1400*1130mm

Packng Dimensions

2300*1850*1380mm

 Optonal parts

Up-down clumps, Rotary System

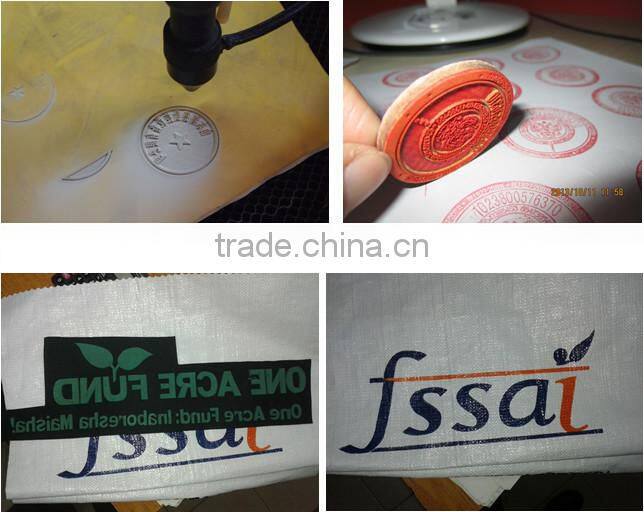

3.Applicable materials: wood ,synthetic material, acrylic, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass ,marble,granite and other nonmetal materials, etc.

rubber sheet cutting machine for printing and packing industry



4. Guarantee and after-sale service

Two years guarantee for whole machine except of laser tube and lens
24 hours technical support by e-mail, calling or door-to-door service
English software, user manual and detailed Videos CD



FAQ





FAQ

1.Q: Are you a factory or trading company?
A:We are a manufacturer with export license.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 1 hours from Beijing, 2 hours from Shanghai and 2.5 hours from Guangzhou .All our clients, from home or abroad, are warmly welcome to visit us!

3.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.

4.Q:How can I get some samples?
A:1,We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.

5.Q:How does your factory do regarding quality control?
A:"Quality is priority? JQ people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.



If you are interest in our products or our services, please contact us, you will get the best reliable products in reasonable prices.



JQ Factory

rubber sheet cutting machine for printing and packing industry

rubber sheet cutting machine for printing and packing industry

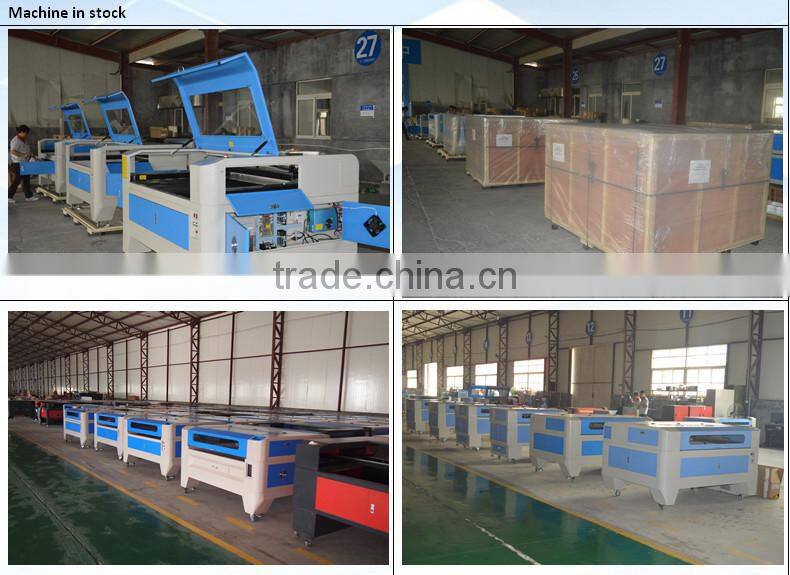

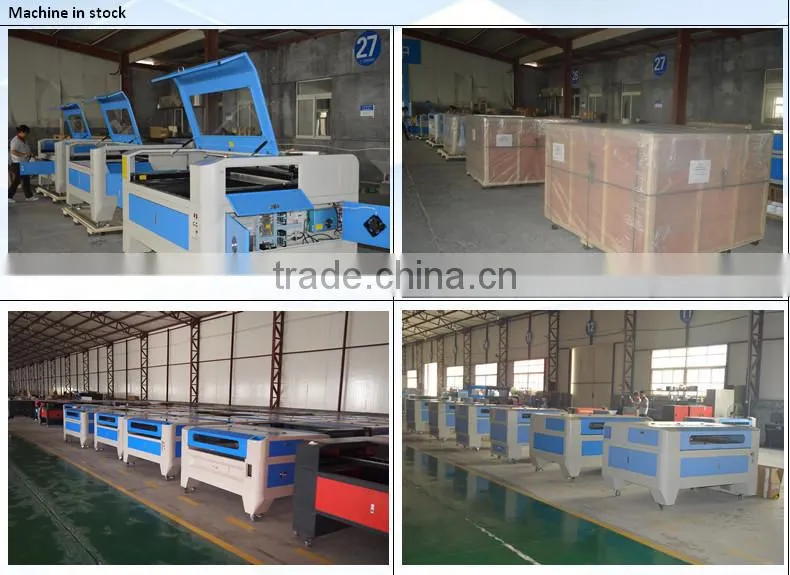

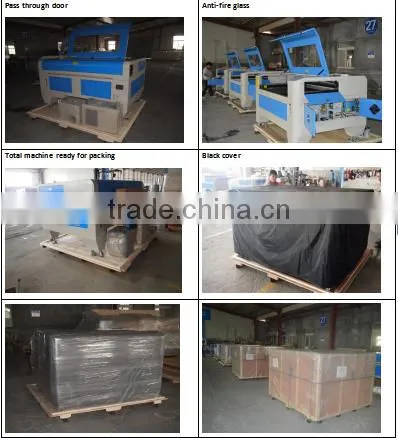

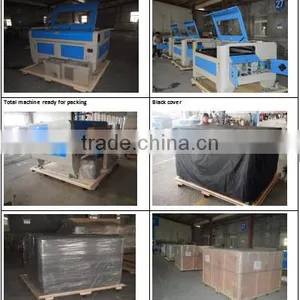

Machine in Factory delivery

rubber sheet cutting machine for printing and packing industry

rubber sheet cutting machine for printing and packing industry
