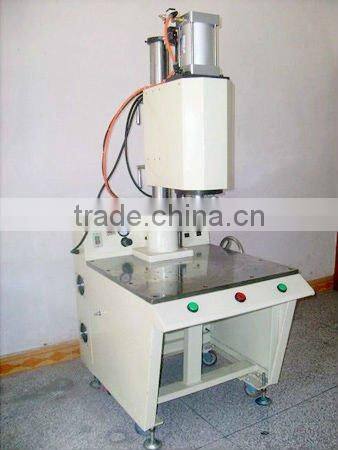

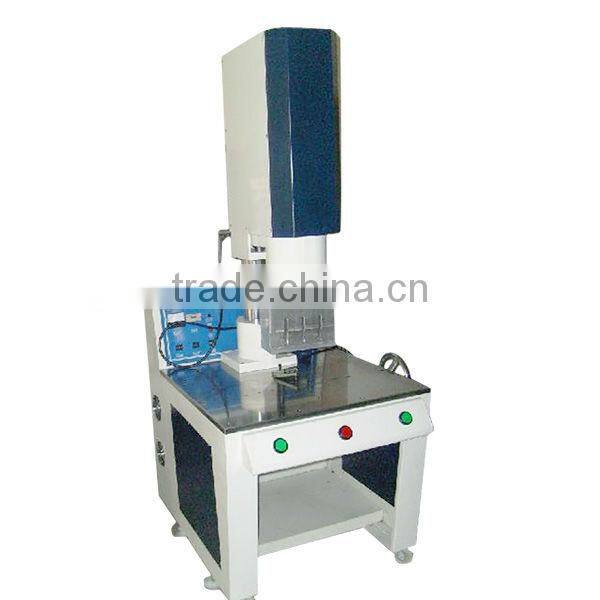

Help CenterFilter Bags Ultrasonic Plastic Welder
Related Products
-
Ultrasonic Welder for Plastic BagUS$ 8,000 - 18,000MOQ: 1 Set -
Ultrasonic Plastic Welding Machine for Plastic ToyUS$ 2,200 - 5,600MOQ: 1 Set
-
Wholesale Ultrasonic Welding of Plastics PP/ABS/PS/PENegotiableMOQ: 1 Set
-
China Ultrasonic Welding Machine CompanyNegotiableMOQ: 1 Set
-
Double Head Ultrasonic Welding Machine for All Kinds of Plastic PartsNegotiableMOQ: 1 Set
1. The large base with attractive appearance is stable and durable. Thick pillar is equipped on this
machine to avoid movement backward of the transducer system.
2. Precise screws are used to control movement of the Transducer System up and down. So it is
stable and saves effort.
3. Overcurrent protective device is installed to reduce fault and ensure the machine work normally.
4. High quality, efficiency and output power. Spare parts are made in Japan, West Germany, Taiwan, etc.
5. Horizontal position of the transducer system is adjusted by four Fine Adjustment Screws. So the
horn can be adjusted precisely and conveniently. And then it can weld products evenly. Product pass
rate will be improved.
6. Warranty for the whole machine is one year.
Specifications |
JD-3215D |
JD-4215D |
output power (W) |
3200 |
4200 |
frequency |
15KHz |
15KHz |
input voltage |
AC220V |
|
welding head stroke |
100mm |
|
oscillating system |
Self-excited oscillation circuit |
|
output time |
0.01-9.99S |
|
pressure |
pressure range of 1-7bar |
|
power output range |
1-6 stall continuously adjustable |
|
vibration head cooling system |
air-cooled type |
|
welding area (mm) |
300 |
500 |
Dimension (mm) |
800 × 1000 × 1800 |
|
N.W. |
216kg |
230kg |
How Ultrasonic Plastic Welders work:
Ultrasonic plastic welders operate by inducing ultrasonic frequencies in plastic components that is converted into heat between the welded plastic laminates. Frictional heat is produced so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time. The melting points of both working pieces is nearly equivalent which helps to form a uniform weld area. The welded area is usually as strong as the matrix material.
