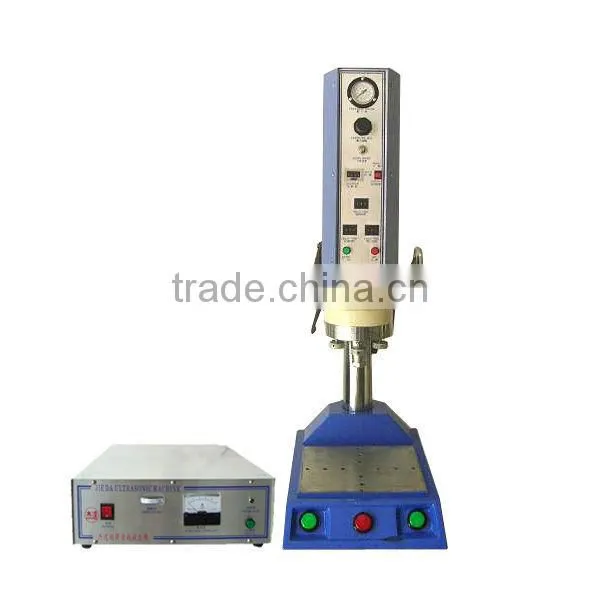

Ultrasonic Welding Equipment for Plastic Welding

Name: Ultrasonic Welding Equipment for Plastic Welding
Brand: JIEDA
SKU: 144393376
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

JIEDA

Model Number:

JD-1406

Dongguan Jieda Ultrasonic Equipment Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name JIEDA

Model Number JD-1406

Voltage AC220V

Power 2000W

Frequency 20KHz

Welding Area 190

Dimensions 400 * 660 * 900

Weight 120KG

Usage ultrasonic welding

After-sales Service Provided Engineers available to service machinery overseas

Ultrasonic Welding Equipment

1. Applications: product welding made from ABS,PP,OPP, ect.

2. Features:

a. Efficiency and Power of the original Japanese vibrator is very high.

b. Horizontal adjustment of the horn can be accomplished soon by adjusting four Fine

Adjustment Screws.

c. It can be used for Fusion Welding, Spot Welding, Heeling-in, Riveting, Forming and Cutting.

d. Precise DIP Switch can be adjusted conveniently and precisely.

e. Automatic compensation for feedback control circuit can be used for long time.

f. It can work once we switch it on. And there is no need to preheat.

g. It can be equipped on Plastic Bag Making Machine and other Automatic Equipments to

increase production capacity.

3. Parameters:

Specifications	JD-1020	JD-1520	JD-2020
output power	1000W	1500W	2000W
frequency	20KHz	20KHz	20KHz
input voltage	AC220V
welding head stroke	75mm
vibration head cooling system	air-cooled
oscillating system	Self-excited oscillation circuit
output time	0.01-9.99S
pressure	1-7bar
power output range	1-6 stall continuously adjustable
welding area (mm)	90	150	190
Dimension	400 × 660 × 900
net	110kg	110kg	120kg
