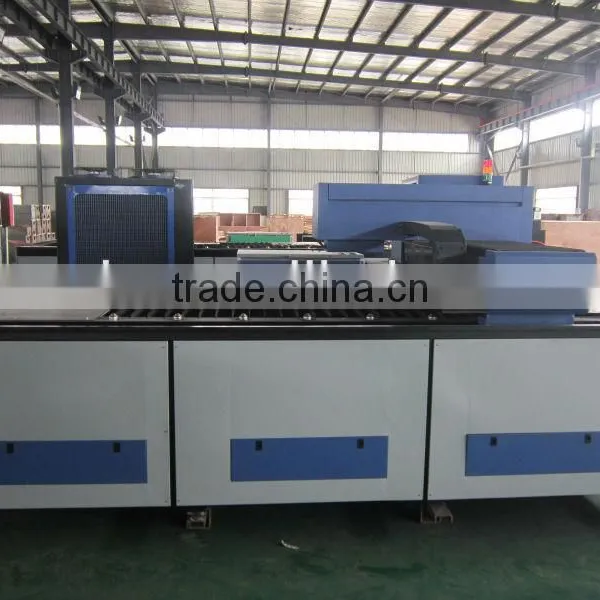

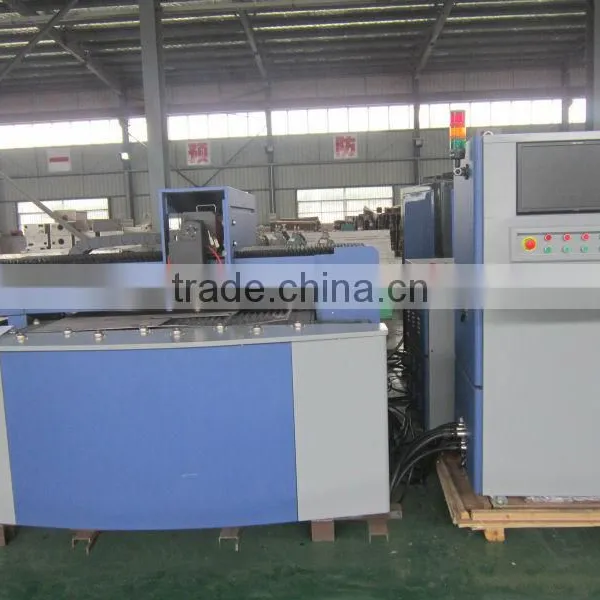

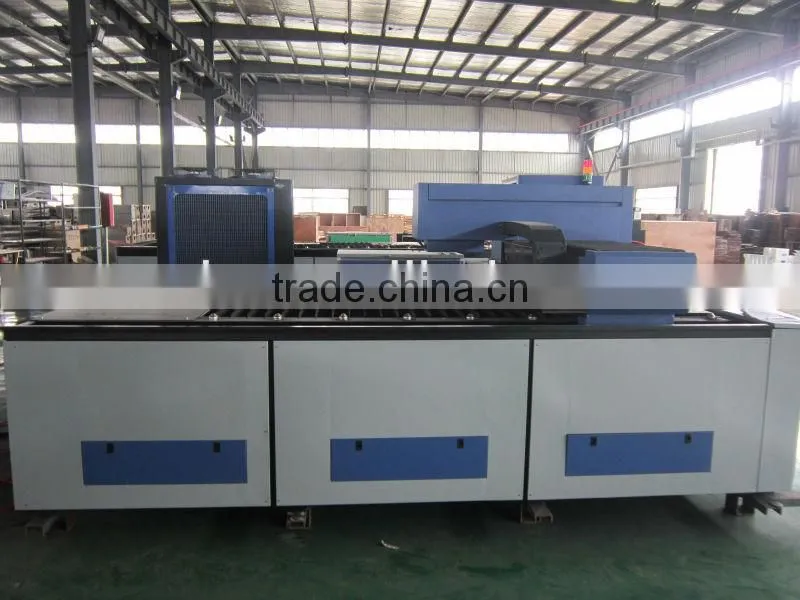

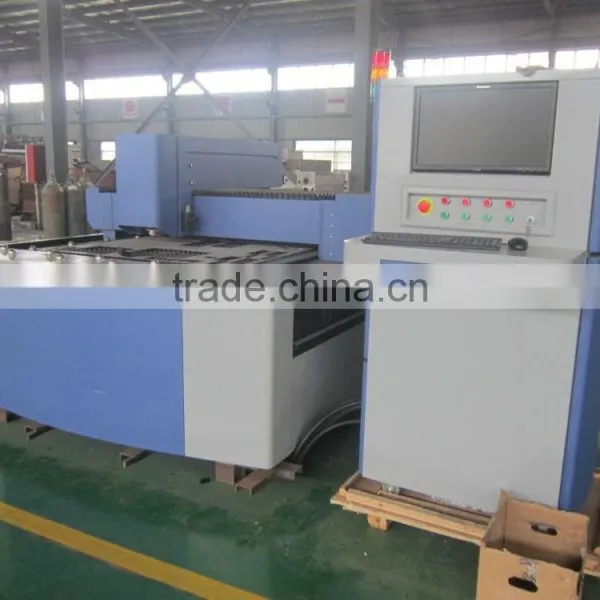

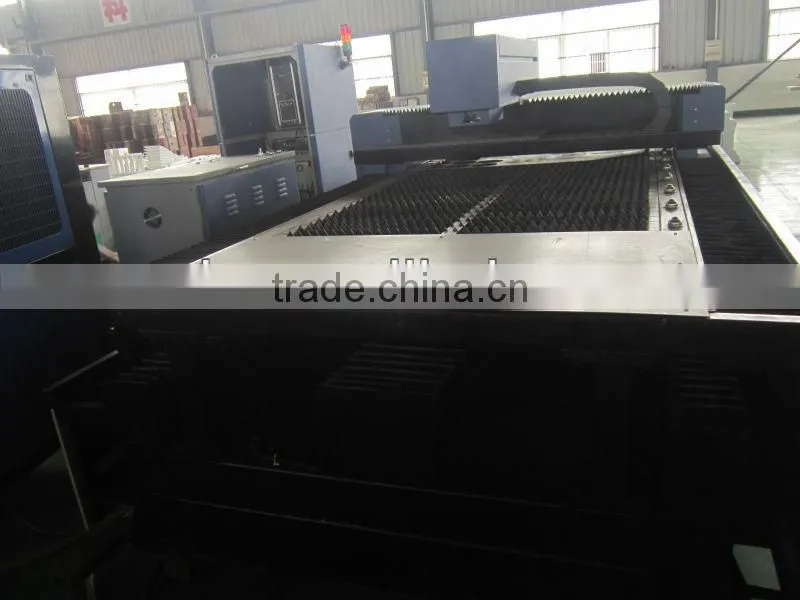

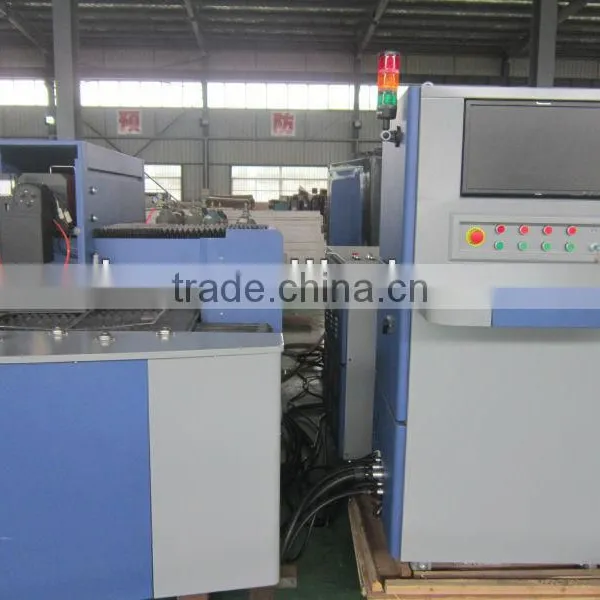

SUDA YAG LASER MACHINE INDUSTRIAL METAL CUTTING LASER
- 50 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Laser Type: | YAG | Applicable Material: | Metal |
Cutting Thickness: | <=10mm | Cutting Speed: | 15-20m/min | CNC or Not: | Yes |
Cooling Mode: | Water Cooling | Control Software: | YASKAWA | Brand Name: | suda |
Model Number: | TY1325 | Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
plywood
Product Description
Specifications
vibrating lensJapan YASKAWA servo motor
THK linear
asph
Model features
1.Machine structure is welded body, heat treatment of the whole machine body, the stability and precision guaranteed.
2.Adopt 750W high power , quartz material aspheric lens and double focusing lens, applied to both thick and thin material cutting
3.Height sensing cutting head adopt high accuracy imported servo system, with testing frequency as much as 20kHz/s
4.Adopt Japan YASKAWA servo motor, THK square linear rail &high precision griding rolling boll screw, long life time.
5.Configured with professional industrial chiller, owning function of both refrigeration and heating. Can realize the effect of automatic frequency conversation with different season and environment

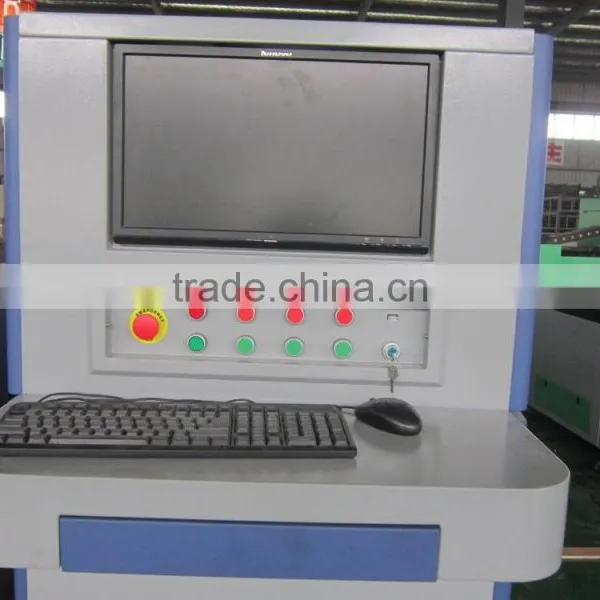

6.Adopt professional controlling system can design any kinds of graphic images and with oil lubricating system, easy to maintain.
Application

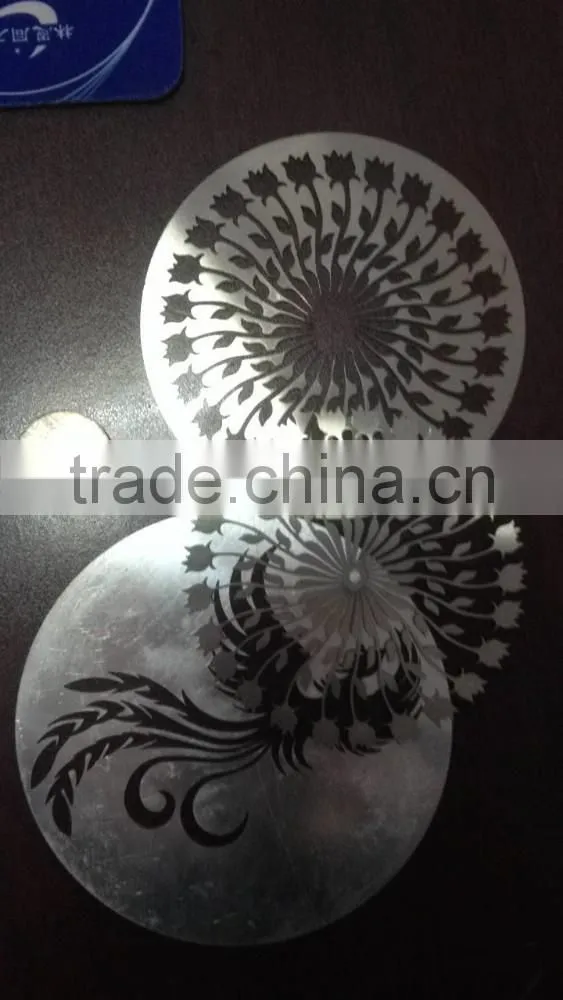

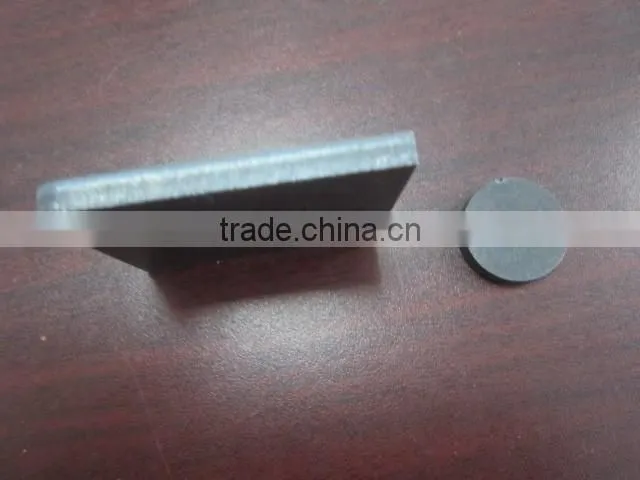

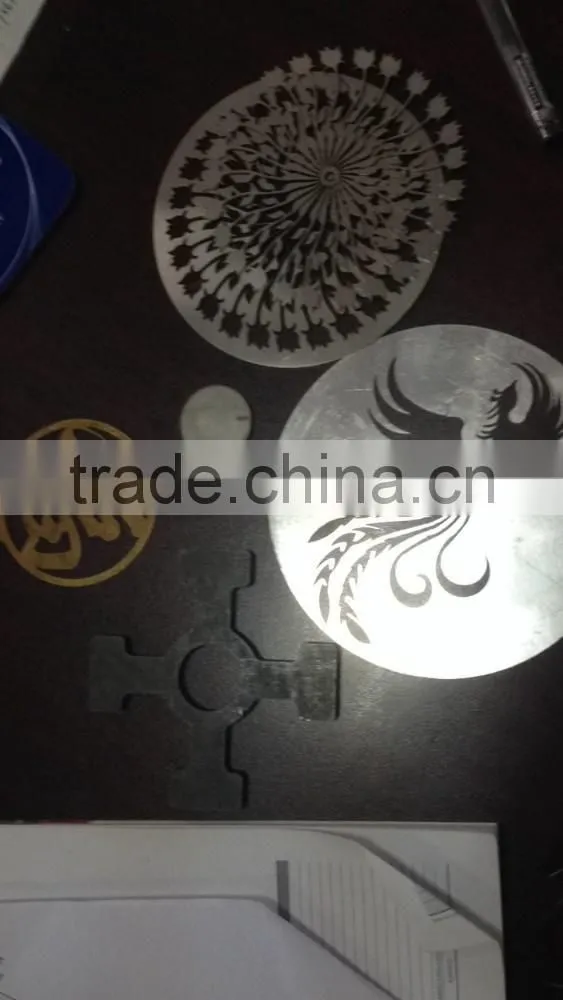

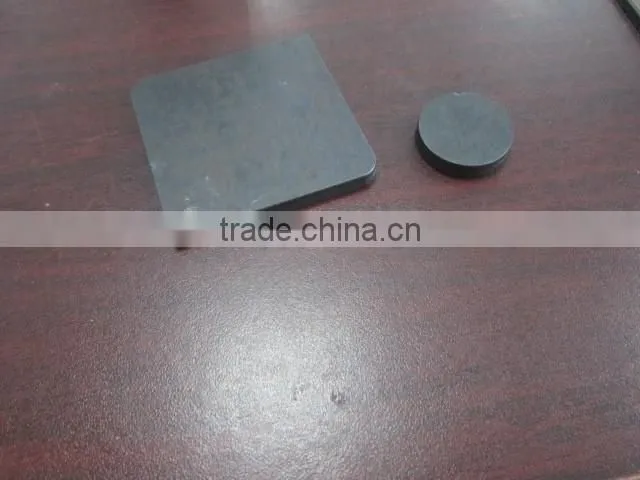

Mainly for metal material cutting, metal plate,metal tube like stainless steel, carbon steel, alloy steel, spring steel, aluminium alloy, copper plate, rare metals, wide applied for kitchenware, any hardware, metal plate structure,electrical cabinet,meter instrument,metal work presents,advertising signs,lamp decoration hardware,saws,spring piece,
aerospace,weapons,automobile parts,glasses,mechanical parts industry etc.
Technical data
Model type | TY1325 | TY1530 | TY1640 |
Laser media | Nd:YAG | Nd:YAG | Nd:YAG |
Max. Power | 600-750W | 600-750W | 600-750W |
Wave length | 1064NM | 1064NM | 1064NM |
Max.speed | 15-20m/min | 15-20m/min | 15-20m/min |
Min.route width | 0.15mm | 0.15mm | 0.15mm |
Reposition accuracy | 0.05mm | 0.05mm | 0.05mm |
Pulse frequency | 1-500Hz | 1-500Hz | 1-500Hz |
Pulse width | 0.1-20ms | 0.1-20ms | 0.1-20ms |
Cutting width | 1300*2500 | 1500*3000 | 1600*4000 |
Cutting thickness | less than 10mm | less than 10mm | less than10mm |
Controller | Professional software control | Professional software control | Professional software control |
Aiming positioning | Red dot | Red dot | Red dot |
Consume power | less than 20KW | less than 20KW | less than 20KW |
Voltage requirement | 380V/50Hz/60Hz /60A | 380V/50Hz/60Hz /60A | 380V/50Hz/60Hz /60A |
Cooling way | Water cooling | Water cooling | Water cooling |
Our Services
online:
one to one communication platform: Alibaba, skype, emails, MSN
if you have any problems, please contact with us
offline:
the machine has instruction in English , video
professional technician to train
we can arrange technician to your company to train
the parts of the machine if broken in the warranty, you can send to our company , but the fright should for your account.
IF YOU HAVE ANY NEEDS OR PROBLEMS, PLS CONTACT WITH ME:
SKYPE: yoyo.yuan6
QQ:2362965390
We Chat : YHH19921025
Company Profile
Tongxing Technology Development Co., Ltd. is located in one of the Chinese Science & Technology Cities, Hefei City. Since foundation in 1992, we have been researching and developing digital products in advertising and mould processing, and have been a very manufacturer in advertising equipment.
Our main products range is as follows: Suda vanguard series CNC engraver, Suda powerful CNC engraver, Suda luck series CNC engraver, Suda laser engraver, Suda cutting plotter, Suda afflatus cylinder CNC engraver, Suda plasma cutting machine.
We have superior staff adhering to the motto of Sincere Operation. The style of designing delicate products has been accepted by customers both at home and abroad. Our products have been exported to many countries and regions such as South-east Area, the Middle East, Europe and America.
Tongxing is willing to cooperating with you based on mutual benefits based on brilliant future.
