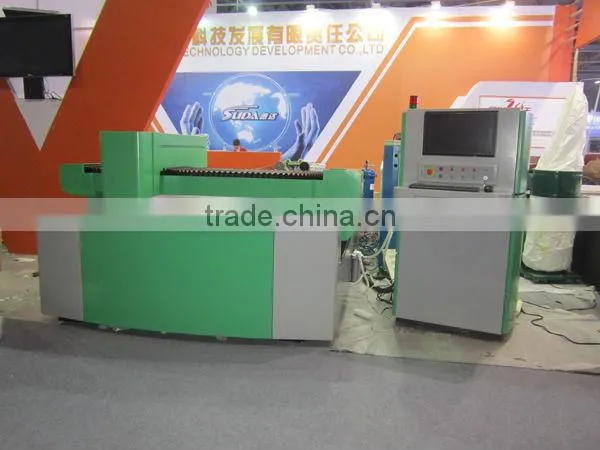

Anhui YAG laser machine for cutting metal --THK square linear rail

Name: Anhui YAG laser machine for cutting metal --THK square linear rail
Brand: SUDA
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 150 Set / Sets per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Laser Type:	YAG	Applicable Material:	Metal
Cutting Thickness:	MAX.10MM	Cutting Area:	1300*2500MM	Cutting Speed:	max. 15m/min
CNC or Not:	Yes	Cooling Mode:	Water Cooling	Graphic Format Supported:	AI
Place of Origin:	Anhui, China	Brand Name:	SUDA	Model Number:	SDY1325
Certification:	CE, ISO	After-sales Service Provided:	Overseas service center available

Packaging Details

plywood packing

Product Description

Specifications

rolling ball screw
THK square linear rail
imported controlling syste
imported laser head

APPLICATION:
Mainly for metal material cutting, metal plate, metal tube like stainless steel, carbon steel,

alloy steel, spring steel, aluminium alloy, copper plate, rare metals. Wide applied for kitchenware,

any hardware, metal plate structure, electrical cabinet, meter instrument, metal work presents,

advertising signs, lamp decoration hardware, saws, spring piece, aerospace, weapons, automobile

parts, glasses, mechanical parts industry etc.

Techinical data:

Model type	SDY1325	SDY1530	SDY1630	SDY1640
Laser media	Nd:YAG	Nd:YAG	Nd:YAG	Nd:YAG
Max. Power	600-750w	600-750w	600-750w	600-750w
Wave length	1064NM	1064NM	1064NM	1064NM
Max. Speed	15m/min	15m/min	15m/min	15m/min
Mini route width	0.15mm	0.15mm	0.15mm	0.15mm
Reposition accuracy	0.05mm	0.05mm	0.05mm	0.05mm
Pulse frequency	1-500HZ	1-500HZ	1-500HZ	1-500HZ
Pulse width	0.1-20ms	0.1-20ms	0.1-20ms	0.1-20ms
Cutting thickness	≤10mm	≤10mm	≤10mm	≤10mm
Controller	NC Studio	NC Studio	NC Studio	NC Studio
Aiming positioning	Red dot	Red dot	Red dot	Red dot
Consume power	≤ 20kw	≤ 20kw	≤ 20kw	≤ 20kw
Voltage requirements	380V/50HZ/60HZ/60A	380V/50HZ/60HZ/60A	380V/50HZ/60HZ/60A	380V/50HZ/60HZ/60A
Cooling way	Water cooling	Water cooling	Water cooling	Water cooling
Moving way	Rolling ball screw	Rolling ball screw	Rolling ball screw	Rolling ball screw
Rail	THK square linear rail	THK square linear rail	THK square linear rail	THK square linear rail
Cutting width(mm)	1300*2500	1500*3000	1600*3000	1600*4000
