Help CenterSUDA AUTO TOOL CHANGE CNC ROUTER -MG1325A
Related Products
Specifications
SUDA MG1325A ATC MACHINE1.TAIWAN SYNTECH SYSTEM
2.THK Linear track FROM JAPAN
3.ELTE 9KW SPINDLE MOTOR
4. ALL INDUSTRIAL
HEFEI SUDA NEW CNC ROUTER FOR WOODWORKING --MG1325A
Performance features
1.Integral welding body,high inflexibility structure design,material stress analysis and forming by heat treatment,avoid deformation.
2.Transmission part adopts high precision helical rack,THK linear rail from Japan,supplement with Japan Yaskawa servo system
and Taiwan professional deceleration device,ensure machine running smoothly in high speed,high precision,low noise.
3.Equipped with professional vacuum system,adopt integral adsorption base with the high strength engineering plastics surface,onetime forming,adopt high power professional vacuum pump,strong adsorption capacity.

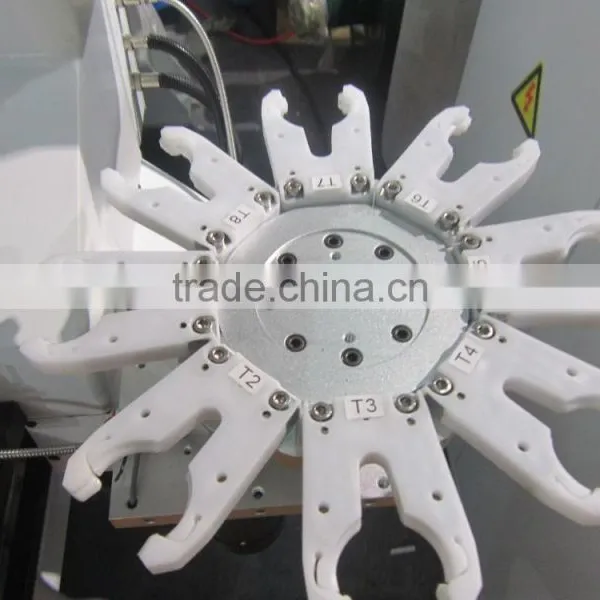

4.Imported high power spindle from Italy ,low sway in axial ,strong cutting force,long lifetime,low noise,with imported Geneva type library of 8pcs tool,high efficiency.

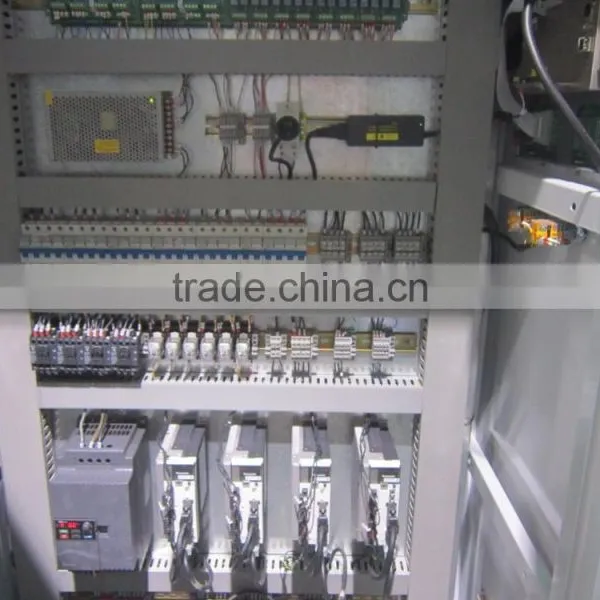

5.Industrial control system ,professional electronic parts,perfect function,stable performance,strong compatibility of software .
Application:
Applicable to process kinds of boards,such as solid wood,acrylic,PVC board,shaving board,fireproof wood etc.Widely used in complex processing on door,cupboard,audio wood shell etc.
Technical data
item |
MG1325A |
MG1630A |
MG2030A |
Working size |
1300*2500*210mm |
1600*3000*210mm |
2000*3000*210mm |
Table size |
1220*2440mm |
1530*2940mm |
1930*2940mm |
Max.travel speed |
X axis-30m/min,Y axis-30m/min,Z axis-20m/min |
||
transmitting |
X,Y-high accuracy helical gear,Z-rolling ball screw |
||
Servo type |
Japan Panasonic(YASKAWA is optional) |
||
Spindle type |
Italy 10kw ATC spindle motor |
||
Spindle rev. |
18000-24000rpm |
||
Vacuum table |
Matrix vacuum table |
||
pump type |
Moporo(Germany becker is optional) |
||
Tool type |
Bamboo Hat ATC |
||
Tool magazine |
8pcs(10pcs,12pcs is optional) |
||
Controlling system |
SYNTEC(OSAL is optional) |
||
voltage |
AC380V/3PH/50HZ |
||
Machine size |
2200*3100*2000mm |
2500*3600*2000mm |
2900*3600*2000mm |
weight |
2100KG |
2900KG |
3400KG |
Note:Any changes of technical parameters without notice,price changed with different configuration and size.
Normally for all SUDA machines with Plywood packages . Smaller machines with a seperately packages
if customer buy more set machines and want to loading into the container, We can make the package as metal holder ....
TONGXING TECHNOLOGY DEVELOPMENT CO.,LTD
SUDA
Alibaba international business department
WWW TXGM COM
Contact person : Miss Snail
Mobile : 886-18655160766
