Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Based Panel Machine > SUDA SD5040 Small CNC Router-500*400*80MM

SUDA SD5040 Small CNC Router-50040080MM

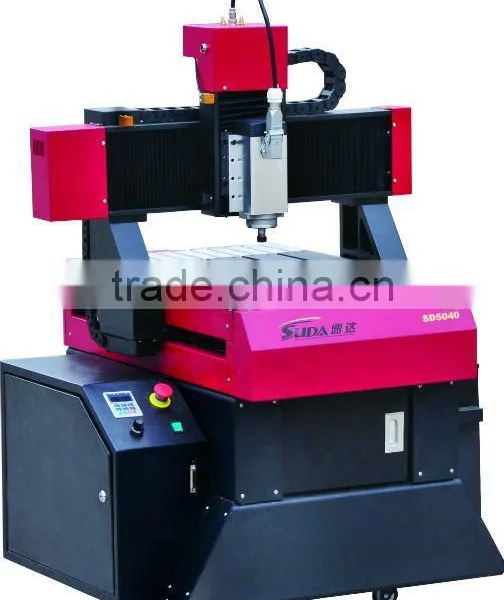

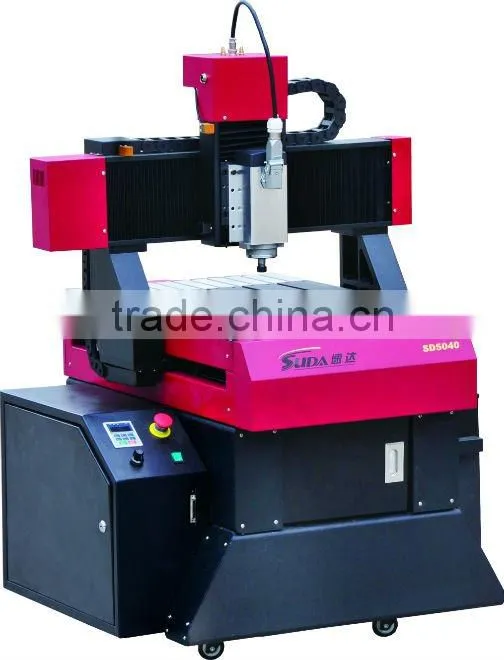

Name: SUDA SD5040 Small CNC Router-500*400*80MM
Brand: SUDA
SKU: 144391834

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

CNC Router

Place of Origin:

Anhui, China

Brand Name:

SUDA

Tongxing Technology Development Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Type CNC Router

Place of Origin Anhui, China

Brand Name SUDA

Model Number 2012 SUDA SD5040

Specifications

SUDA 2012 SD5040 CNC ROUTER
UPGRADE AS BFORE:
1.SYSTEM:USE SUDA FPGA COLORED LCM CONTROL ,2GB inner memory
2.Spind: Air cool

Model	SD5040 CNC Router
XY Guide	Rolling ball screw from Germany
Table size (cm)	*5040**
Z Guide	Rolling ball screw from Germany
XYZ movement (mm)	500 x 400 x 80
Spindle power	1500W
Spindle speed (min/max)	6000 - 18000 U/Min.
Machine dimension (cm)	*7058100cm*
Packing dimension (cm)	*10396138*
Machine sturcture	All steel machine frame,special design
Weight (kg)	320KGS
Power consumption without spindle	More than 1000W
Speed max.	0-100mm/s
Working speed max.	100mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	PVC Table and Aluninum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english shipping with the machine
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	BOL High speed air cooling spindle motor ,Italian technical ,fast seed and high quality ,18000RPM
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Control System	Adopt the most advanced FPGA Colored LCM controlling system ,it has 4GB inner memory,configure with a large USB flash disk can save many files
Interface	Transimt the file from USB flask disk directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	7 working days when we received all the payment by T/T
