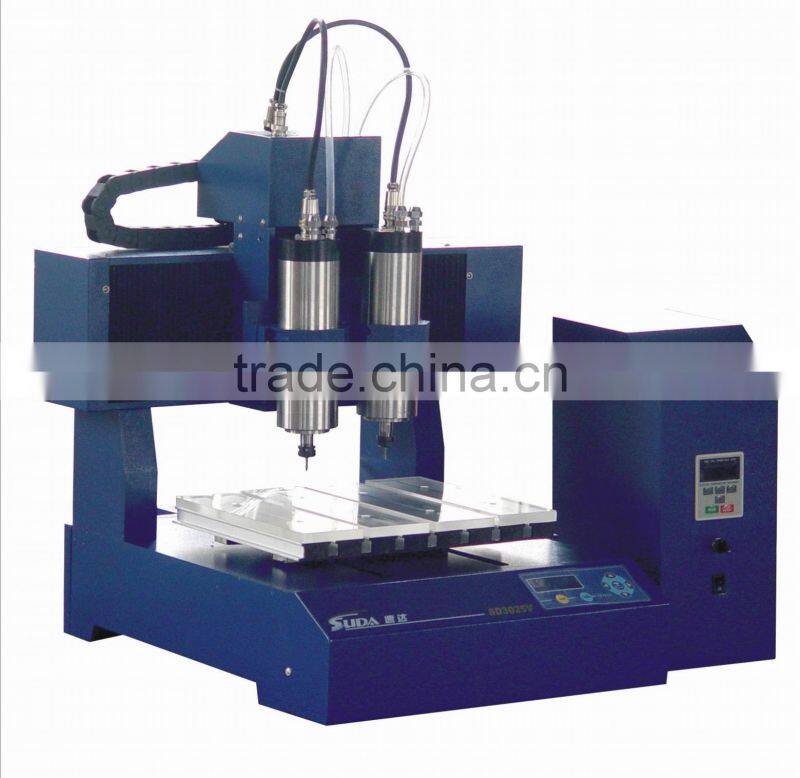

HEFEI Sell SUDA PCB Making CNC Router Pcb Milling Machine ---- SD3025SV

Name: HEFEI Sell SUDA PCB Making CNC Router Pcb Milling Machine ---- SD3025SV
Brand: SUDA
SKU: 144391480
Availability: InStock

Tongxing Technology Development Co., Ltd.

5Yrs

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Anhui, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Anhui, China

Brand Name SUDA

Model Number 2012 SD3025SV,SD3025MV

Specifications

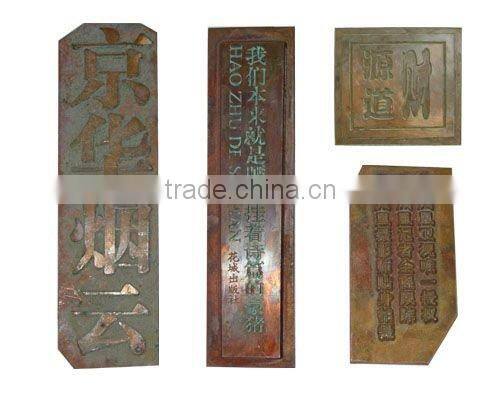

The engraver is an artful products

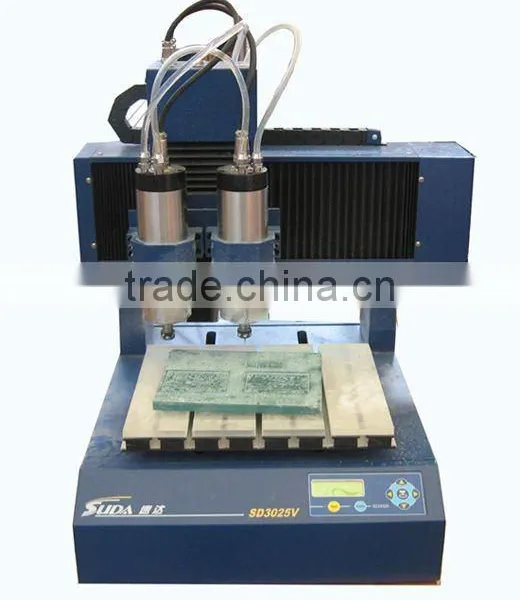

can be used wodely and PCB Engraving
800W spindle motor cooled by water
SUDA NC SYSTEM
CE

Detailed Product Description:

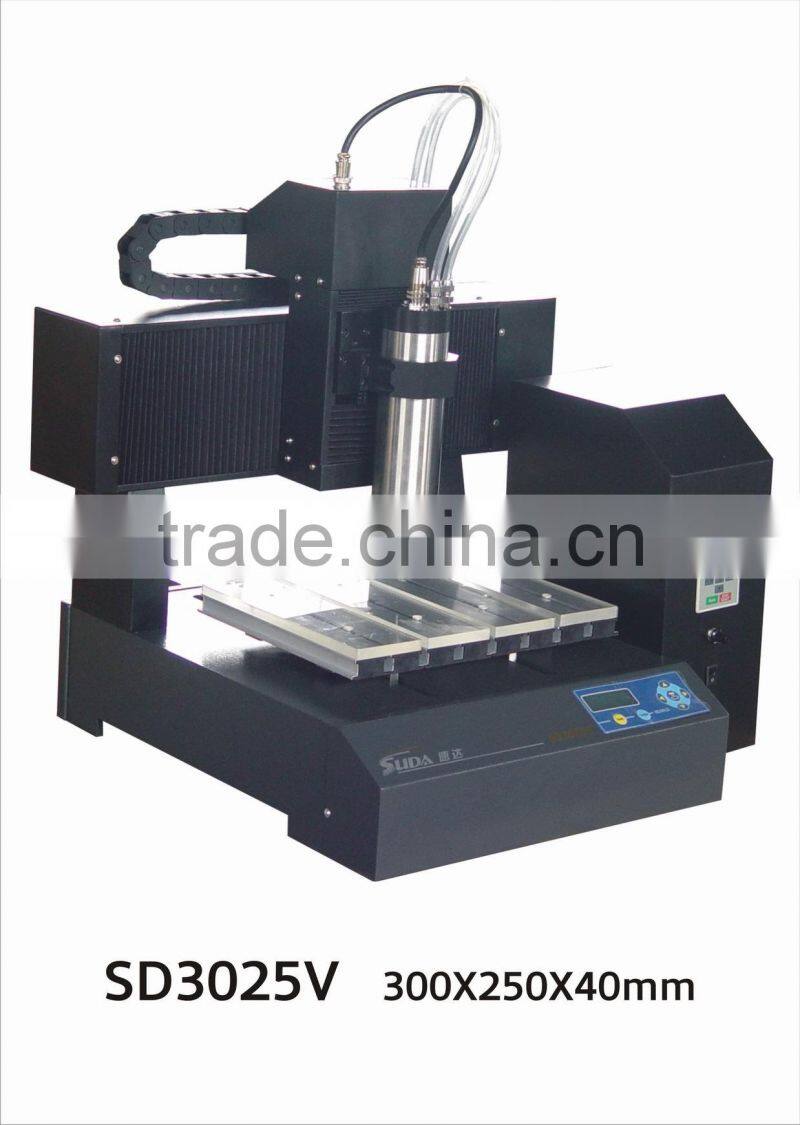

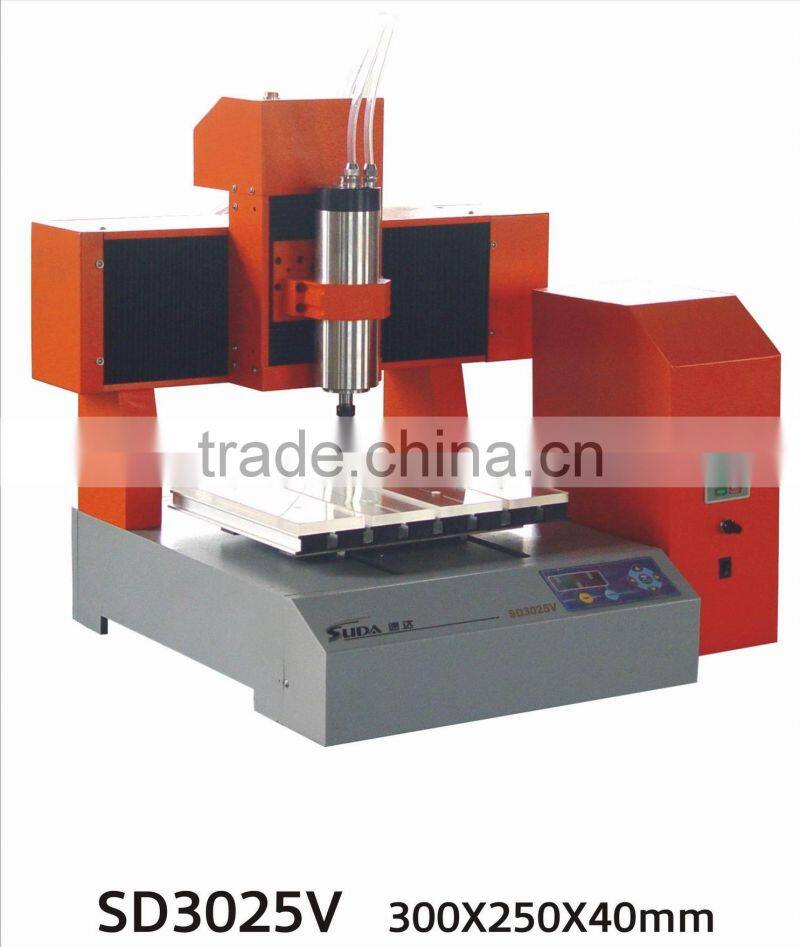

Model	SD3025SV
XY Guide	Rolling ball screw from Germany,X,Y with liner rail
Table size (cm)	30*25
Z Guide	Rolling ball screw from Germany,Z axis with linear rail
XYZ movement (mm)	300 x 250 x 40
Spindle power	800W
Spindle speed (min/max)	6000 - 24000 U/Min.
Machine dimension (cm)	565459
Packing dimension (cm)	666469
Weight (kg)	90KG
Power consumption without spindle
Speed max.	0-70mm/s
Working speed max.	70mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	Aluminum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	water cooled
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Interface	Transimt the file from the computer directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	10 working days when we received all the payment by T/T
