HEFEI SUDA 2014 HOT SALE CNC ROUTER-SV1325

Name: HEFEI SUDA 2014 HOT SALE CNC ROUTER-SV1325
Brand: Suda
SKU: 144391490

US$ 11,200 - 12,200 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Anhui, China

Tongxing Technology Development Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Anhui, China

Brand Name Suda

Model Number SV1325

Voltage 380v

Power(W) 5.6kw spindle

Weight 1400kg

Certification CE,ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

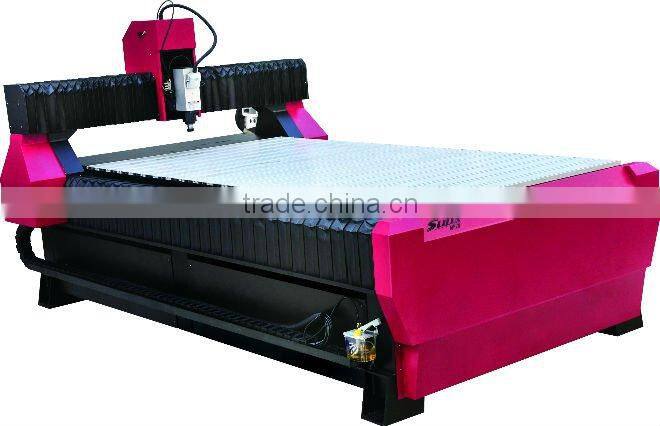

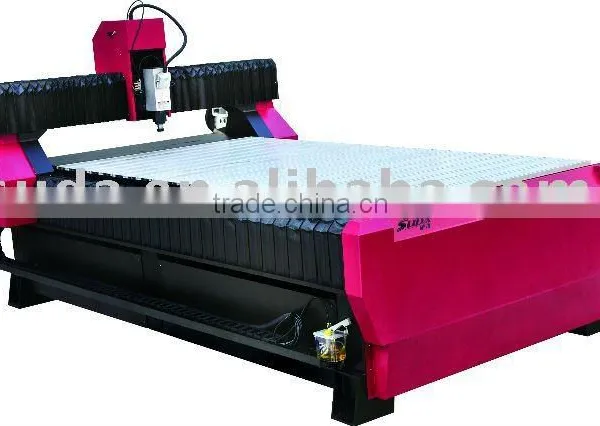

SUDA SV1325 CNC ROUTER
4G memory capacity
Japanese THK linear rail
Italian ELTE 5.6KW spindle motor

Model	SV1318	SV1325	SV1630	SV2030	SV2040
Working Are(mm)	13001800200	13002500200	15503000200	20003000200	20004000200

MODEL		SV1325 CNC ROUTER
1	XY Guide	By gear rack transmitting ,THK linear rail from Japan WITH CLOSED DUST COVER
2	Table size (mm)	2200*4100
3	Z Guide	Rolling ball screw from Germany, THK linear rail from Japan WITH CLOSED DUST COVER
4	XYZ movement (mm)	13002500200
5	Spindle power	5.6KW ELTE Italy imported SPINDLE MOTOR COOLED BY AIR
6	Spindle speed (min/max)	0 - 18000 U/Min
7	Machine dimension (cm)	220041001500
8	Weight (kg)	1680KGS
9	Power consumption without spindle	Power consumption without spindle
10	Speed max.	0-3500mm/s
11	Working speed max.	100mm/s
12	Stepper or servo motor?	Stepping motor,can optional panasonic servo motor from japan
13	XYZ accuracy	0,04mm
14	Reposition accuracy	0.11mm
15	XY resolution	0,025mm
16	Z resolution	0,025mm
17	Table surface	Aluninum T-Slot table ,can optional vacuum system
18	XY drive configuration	Gear and rack transmitting
19	Z drive configuration	roll screws
20	Included Software	Type3 V4.3 english from France shipping with the machine
20	Software Compatible with	Win98/Win2000/XP
21	Spindle collet	ER25
22	Software transmission language	G-Code, HPGL
23	Control System	ADVANCED FPGA COLORED LCM CONTROLLING SYSTEM, INDEPENDENT POWER SUPPLY,RAPID CALCULATION
24	Interface	Transimt the file from USB flask disk directly
25	Voltage	380VAC/50-60Hz
26	Running environment	0-35°C, humidity: 10-70%
27	Production time	15 working days when we received all the payment by T/T
27	Optional	Dust collector with dust catcher ;Servo system ;Vacuum system
