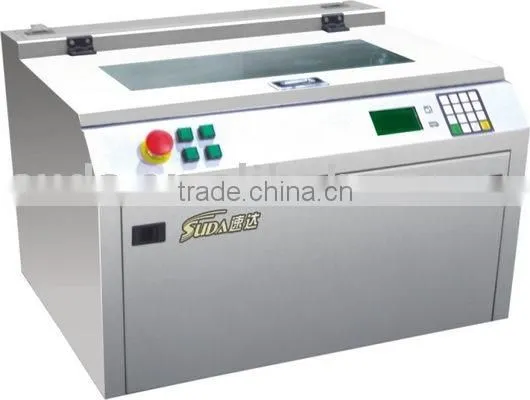

Suda Desk Laser Machine SL4030

Name: Suda Desk Laser Machine SL4030
Brand: Suda
SKU: 144391104
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Laser Type:

CO2

Place of Origin:

Anhui, China

Brand Name:

Suda

Tongxing Technology Development Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Laser Type CO2

Place of Origin Anhui, China

Brand Name Suda

Model Number SL4030

Specifications

Suda desk laser machine SL4030
DSP controlling system,
Equipped with lifting platform
CE
chilling machine

Suda small laser machine SL4030

1 working size:300*280mm

2 upgrading structure, high precision and higher speed

3 with advanced DSP controlling system, strong function, can effectively engrave on plane/ gradient(optional0, cutting and drilling holes, etc.

4 transmitting files directly from CorelDraw, Auto CAD etc.

5 equipped with lifting platform which can perform processing at any height

6 the delicate machine body, adopting DSP controlling system to ensure work without computer and support USB flash disk direct output.

Laser engraving/cutting machine SL4030

Laser power :	25W
Laser type:	SL4030
Power supply:	AC220V±10%,50HZ
Working area:	380*280mm
Max cutting speed:	200mm/sec
Max engraving speed:	2000mm/sec
Worktable:	Lifting platform
Locating precision:	0.1mm
Min shaping character:	Engrving 0.8mm, cutting 2mm
Operating temperature:	0°c-45°c
Work degree of humidity	5-95%(have no Ning water)
Resolution ratio:	0.025mm
Control configuration:	Advanced DSP controlling system
Data transfer interface:	USB flash disk / directly from computer
System environment:	Above Window 2000, window XP
Cooling way:	Water cooling
Graphic format supported:	BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF, etc.
Compatible software	Transmit files directly form Coreldraw, AutoCAD, etc.
Cutting thickness	6mm
Color separation	200
Sloping engraving	90°--180°
Cuts off the water supply the protection	yes
Machine dimention	1000840710mm
Red point as standard	not
Air pump as standard	Yes
Net weight	85kg
packing	Standard non-woody
