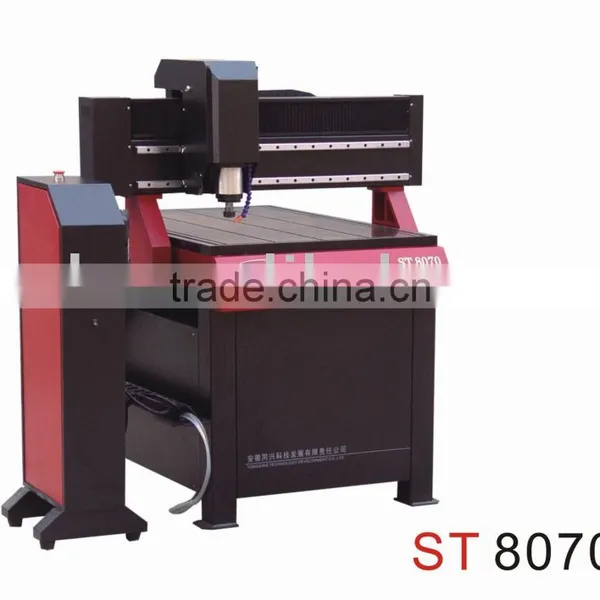

Help CenterSUDA Router Cnc Woodworking Cnc Router Kit Cnc Spindle Machine --ST8070
Related Products
-
Hefei Suda Cnc High Accuracy Cutter CNC Engraver Cnc Router - ST1218US$ 4,500 - 5,000MOQ: 1 Set -
Suda HEFEI NEGRAVER VG 1313 Cnc Router MachineryNegotiableMOQ: 1 Set
-
SUDA MINI ALUMINUM ENGRAVING MACHINE-SD5040US$ 2,800 - 3,200MOQ: 1 Set
-
HEFEI Sell SUDA Mini Metal Engraving Machine,CNC Router for Aluminum --SD3025SV With Two Spindle Motor Cooled by WaterNegotiableMOQ: 1 Set
-
SUDA LINEAR RAIL CNC Engraver ---SD5040NegotiableMOQ: 1 Set
Specifications
1.Type 3 software2. USB port
3.128M control card
4.Suitable for woodworking or metal engraving ,HIgh accurancy
5.Easy use
NO. Description |
Parameter |
|
1 |
Table size |
850*750MM |
2 |
X,Y working area |
800*700*90mm |
3 |
Z working area |
90mm (standard),can up to 150mm which is optionalUSD200 . |
4 |
Max. speeding |
12m/min |
5 |
Work-holding |
Vacuum table (Optional) |
6 |
Processor |
DSP/100MHz |
7 |
Spindle motor power |
3KW inverter-driven spindle motor cooled by water |
9 |
Interface |
USB |
10 |
Command |
G code*.u00*.mmg* plt |
11 |
Surroundings for software |
windows98/2000/xp |
12 |
Power(spindle is not included) |
More than 5000W |
13 |
Working voltage |
AC 220V/50Hz-60Hz |
14 |
Main axle roating speed |
0-24000rpm/min |
15 |
Work Mode |
Stepper( standard) ;Servo system (Optional) |
16 |
Control Handle |
128 M controlling DSP system |
17 |
Engraving tools |
3.175mm;6mm;12.7mm;(Optional ),send you 10 pcs tools with the machine |
18 |
Software |
Original Type3 software from France |
19 |
Package ,Non-wooden packages no need fumigation certificate. |
1400*1220*1750mm 2.99CBM |
20 |
Optional device |
Water cooling system: Dust collector Vacuum system |
This machine are very special ,Because it configure with THK linear track from Japan,Transimitting the files from USB, Transmitting ways is from rolling ball screw not from rack.
