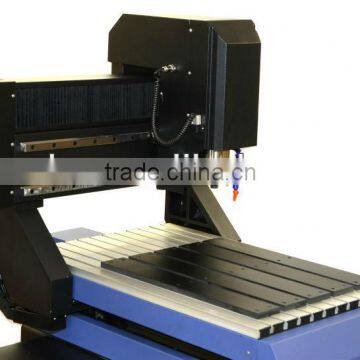

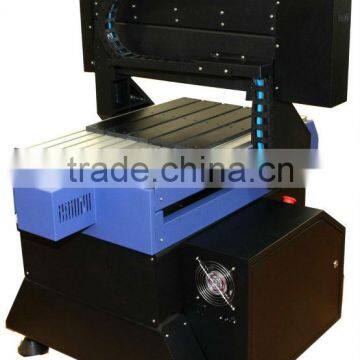

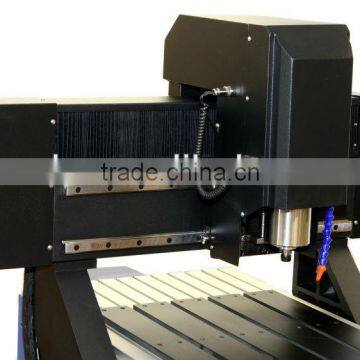

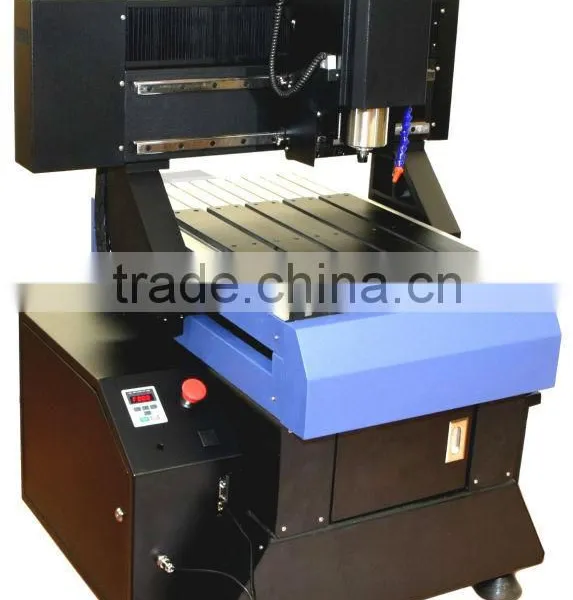

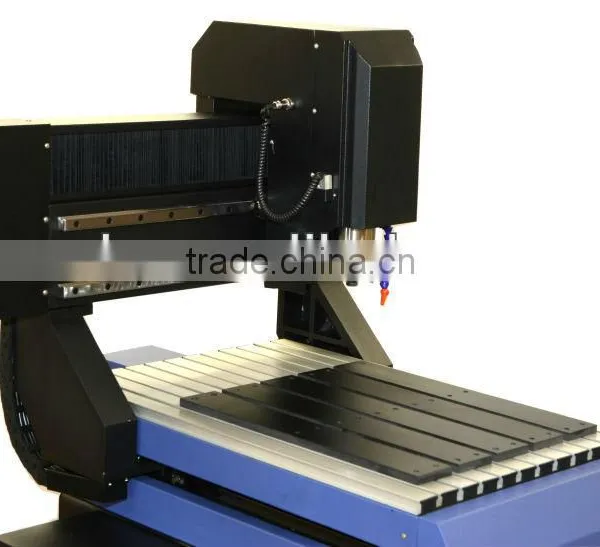

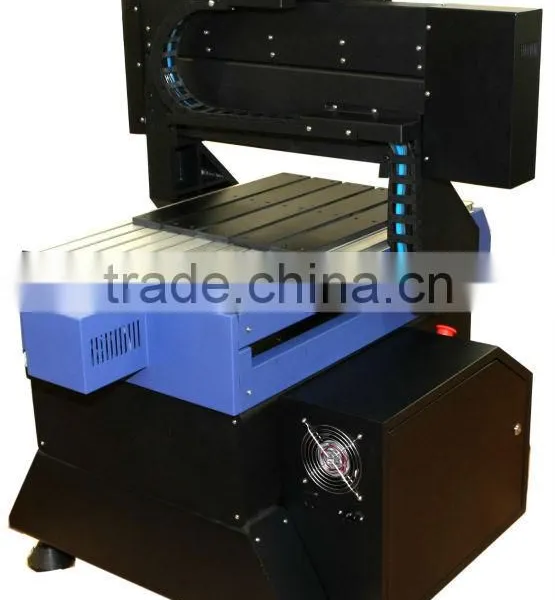

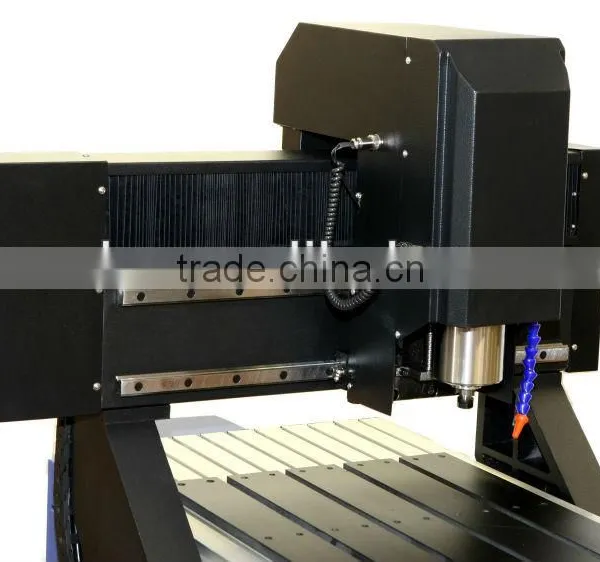

SUDA LINEAR RAIL CNC Engraver ---SD5040

Name: SUDA LINEAR RAIL CNC Engraver ---SD5040
Brand: SUDA, SUDA
SKU: 144390908
Availability: InStock

Tongxing Technology Development Co., Ltd.

5Yrs

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

SUDA, SUDA

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name SUDA, SUDA

Model Number SD5040, SD5040

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.5KW spindle motor cooled by water
:Two-nut rolling ball screw from Germany
One set type3 software orginal from France
CE

Model	SD5040 CNC Router
XY Guide	Rolling ball screw from Germany
Table size (cm)	*5040**
Z Guide	Rolling ball screw from Germany
XYZ movement (mm)	500 x 400 x 80
Spindle power	1500W BOL air cooled spindle motor,italy’s technical,Made in China
Spindle speed (min/max)	6000 - 18000 U/Min.
Machine dimension (cm)	*7058100cm*
Packing dimension (cm)	*10396138*
Machine sturcture	All steel machine frame,special design
Weight (kg)	320KGS
Power consumption without spindle	More than 1000W
Speed max.	0-100mm/s
Working speed max.	100mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,4mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	PVC Table and Aluninum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english shipping with the machine
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	water cooled
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Control System	SUDA FPGA COLORED LCM CONTROLLING SYSTEM which inner memory has 4 GB, also transmitting files from USB flash disk
Interface	Transimt the file from USB flask disk directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	7 working days when we received all the payment by T/T
