Specifications
10kw imported spindle motorauot-tools changer device
imported servo driving system
advanced imported SYNTEC controller

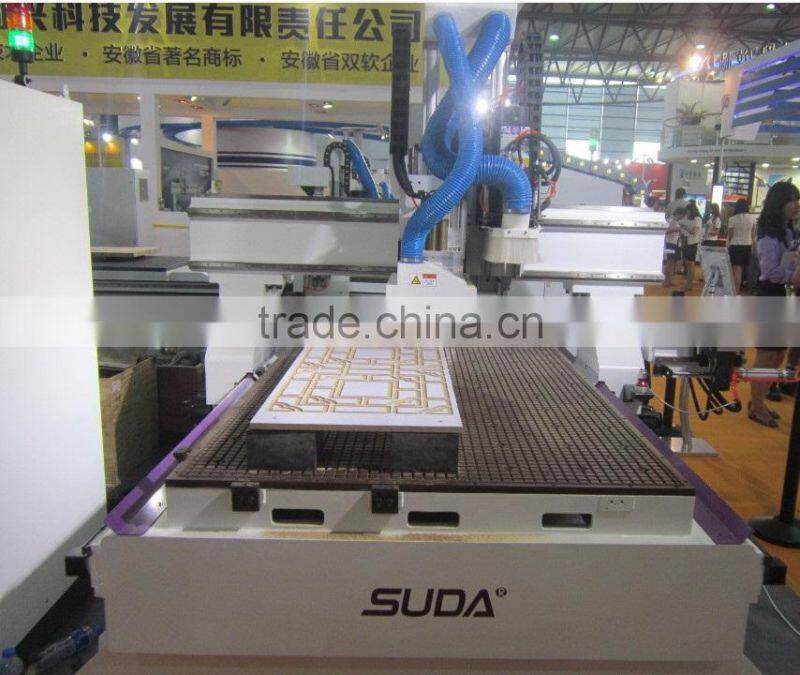

Heavy duty moving column cnc router center
main data
Item | HG1325 | HG1630 | HG2030/40 |
Working size | 1650*2750*280MM | 1950*3300*280MM | 2350*4300*280MM |
Table size | 1220*2440mm | 1530*2940mm | 1830*3800/3700mm |
Max.travel speed | X axis-30m/min, Y axis-30m/min Z axis -20m/min | ||
Transmitting | X,Y- high accuracy helical gear ,Z-rolling ball screw | ||
Servo type | Japan Panasonic | ||
Spindle | Italy 10KW ATC spindle motor | ||
Spindle Rev. | 18000-24000rpm | ||
Vacuum table | Matrix vacuum table | ||
Pump type |
| ||
Tool type | Geneva type | ||
Tool magazine | 8pcs(10pcs,12pcs is optional) | ||
Controlling system | SYNTEC(OSAI is optional) | ||
Power supply | 380V/3PH/50HZ | ||
Machine size | 3500*2600*2000mm | 4000*2900*2000 | 5000*3300*200mm |
Weight | 2200kg | 2950kg | 3600kg |
woodworking router application
Applicable to process kinds of plate material, such as MDF, shaving board, blockboard, acrylic, PVC, hibiscus board,
engineering plastic, epoxy resin, wood, artificial stone and other materials, widely used in furniture, bathroom cabinet,
cabinets and other industries, especially in paint-free door and wood industry, can finish procedure of engraving, drilling and cutting in one step.
woodworking router samples
