Specifications
xy-high accuracy helical gear z-rolling ballitaly 10kw ATC spindle motor
Japan YASKAWA
Moporo /Becker
SYNTEC optional OSA

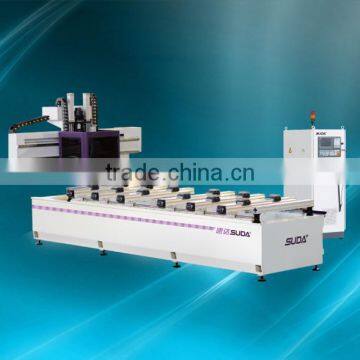

professional cnc router woodworking machine for kinds of plate materials
performational fueatures:
1:Side Feeding Material of new design ,more convenient. one-armed gantry of high strength ,more efficiency
.2:Integral welding frame of Industrial, tempering vector efficiency of processing, without deformation, improve stability and precision of machine
.3:Transmission part adopts high precision helical rack, THK linear rail from Japan, supplement with Japan Yaskawa servo system and Taiwan professional deceleration device, ensure machine running smoothly in high speed, high precision, low noise
.4: Equipped with professional vacuum system, adopt adsorption base of integral steel structure , specialized material matrix surface with high strength and toughness ,adopt professional "Becker" vacuum pump from German, strong adsorption capacity, high efficiency
.5:Industrial control system, professional and perfect function, stable performance, strong software compatibility
Application:
Applicable to process kinds of plate material, such as MDF, shaving board, PVC, fire-proof board, blockboard, engineering plastics and other materials, widely used in solid wood doors, cabinets, bathroom cabinet, game cabinets, wave board, screen fields etc.
working distance | X axis | Y axis | Z axis | |||
2500mm | 1300mm | 210mm | ||||
Max. travel speed | 60m/min | 40m/min | 20m/min | |||
servo type | Panasonic 3kw | Panasonic 750W | Panasonic 750W(self-locking) | |||
working table | 2440mm*1220mm | |||||
spindle type | quantity | spindle power | spindle rev. | tool shank | tool magazine | tool diameter |
1pc | 9.0kw | 18000rmp/min | ISO30 | 8 | maxΦ20 minΦ2mm | |
vacuum pump | brand | power | air suction volume | |||
Moporo | 5.5kw | 140M³/H | ||||
power supply | 3phase/380V 50HZ | 18KW | ||||
controlling system | Syntech | |||||
machine size | floor area | machine height | machine weight | |||
3200mm*2100mm | 2000mm | 3500kg | ||||
