Specifications
1.HEAVY DUTY CANTILEVER CNC MACHINING CENTRE2. ITALY 10KW ATC SPINDLE MOTOR
3.INDUSTRIAL CONTROL CABINET
4.TAIWAN SYNTEC

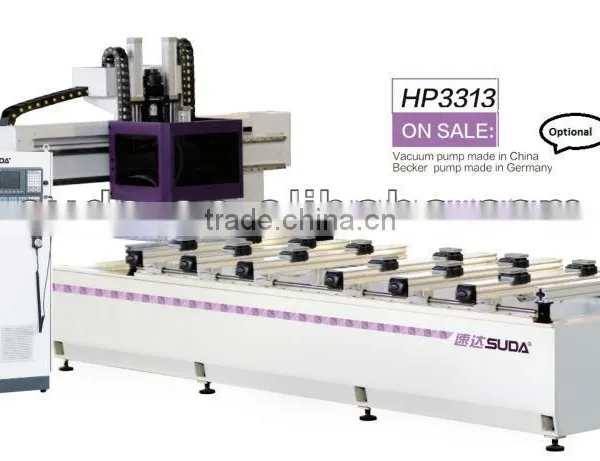

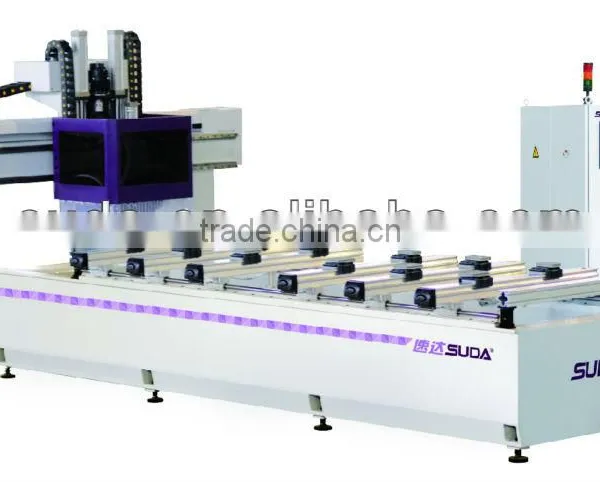

3D CNC Router Wood Engraving Machine with CE
Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
Designed to meet diverse and complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions.
Features world top class mechanical and electronic components, e.g. Japanese servo driver and gear reducer, Italian high power automatic tool changing spindle, French low-voltage electrical components, which guarantee stable performance and high finishing quality.
8-slots carousel tool changer, accurate and rapid tool positioning.
Vacuum worktable fitted with aluminum alloy bars and suction cups is rigid yet flexible for various configurations.
Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.
TECHNICAL DATA:
Item |
HP3313 |
HP4313 |
Working Size |
3500*2500*250mm |
4500*1500*250mm |
Table size |
3300*1300mm |
4300*1300mm |
Max. Travel speed |
X axis-60m/min, Y axis -40m/min, Z axis -20m/min |
|
Transmitting |
X,Y –high accuracy helical gear, Z-rolling ball screw |
|
Servo type |
Japan YASKAWA |
|
Spindle |
Japan 10KW ATC Spindle motor |
|
Spindle Rev. |
18000-24000rpm |
|
Vacuum table |
Mobile adsorption/ 6 set |
|
Pump type |
MOPORO Made in China (Becker pump made in Germany can optional |
|
Tool type |
GENEVA Type |
|
Tool Magazine |
8pcs(10pcs,12pcs is optional ) |
|
Controlling system |
SYNTEC (OSAI is optional ) |
|
Voltage |
AC380V/3PH/50HZ |
|
Machine Size |
4600*2500*2300mm |
5600*2500*2300mm |
Weight |
4500kgs |
5500kgs |
