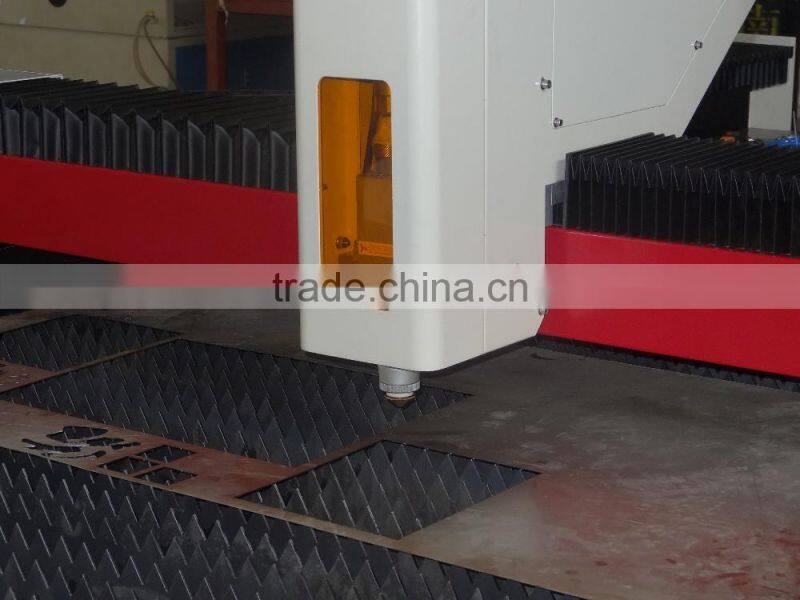

Stainless Steel Fiber Laser Cutting Machine, Carbon Steel Cutting Machine, 500w/700w/1000w Fiber Laser Cutting Machine

Stainless Steel Fiber Laser Cutting Machine, Carbon Steel Cutting Machine, 500w/700w/1000w Fiber Laser Cutting Machine photo-1
Stainless Steel Fiber Laser Cutting Machine, Carbon Steel Cutting Machine, 500w/700w/1000w Fiber Laser Cutting Machine photo-2
Stainless Steel Fiber Laser Cutting Machine, Carbon Steel Cutting Machine, 500w/700w/1000w Fiber Laser Cutting Machine photo-3
Stainless Steel Fiber Laser Cutting Machine, Carbon Steel Cutting Machine, 500w/700w/1000w Fiber Laser Cutting Machine photo-4
Stainless Steel Fiber Laser Cutting Machine, Carbon Steel Cutting Machine, 500w/700w/1000w Fiber Laser Cutting Machine photo-5
Stainless Steel Fiber Laser Cutting Machine, Carbon Steel Cutting Machine, 500w/700w/1000w Fiber Laser Cutting Machine photo-6
US$ 29,880 - 29,880 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plywood, Rubber, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao/shanghai/shenzhen/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Laser Type Fiber Laser
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plywood, Rubber, Wood
Cutting Thickness Materials
Cutting Area 1300*2500mm
Cutting Speed 0-40000mm/min
CNC or Not Yes
Cooling Mode Water Cooling
Control Software DSP
Graphic Format Supported AI, BMP, DST, DWG, DXF, PLT, Other
Place of Origin Shandong, China
Brand Name Rabbit
Model Number FC-1325
Certification CCC, CE, ISO, Other, CCC, CE, ISO, FDA
After-sales Service Provided Engineers available to service machinery overseas
Product Description

1000w cnc fiber laser cutting machine for sale

Product Application

The fiber laser cutting machine could perfectlly cut steel metal, expecial the stainless steel and carton steel. The world's top fiber laser keep stable performance. the focused spot smaller cut lines more sophisticated, higher productivity, betterquality and processing.

It is widely used in sheet metal processing, aeronautical and space, electronics, metro parts, vehicle, grain machinery, textile machinery, elevator, appliances, gifts and crafts, toys manufacturing, decorations, advertising, metal processing and kitchenware manufacturing and other manufacturing and processing industry.

Main Features

1. Stability and reliability for light path system and control system.
2. Fiber laser has high and stable function and lifespan which is over 100000 hours.
3. Higher cutting quality and efficiency with cutting speed being with perfect cutting edge.
4. High performance reducer, gear and rack;Japanese Imported Panasonic Servo Motor & Driving System
5.auto feeding wheel design for materials feeding

Laser machine cutting area
1300x2500mm
Cutting thickness
0.2-3mm stainless steel/0.2-4mm steel
Laser power
300W / 500W / 750W / 1000W/1500W
 laser device
Raycus / IPG
Laser wave length
1080nm
Laser Cooling type
Water cooling
Position type
Red dot pointing
Auxiliary Gas
Oxygen, Nitrogen, air
Transmission system
Imported ball-screw / Gear rack(optional)
X.Y axis location accuracy
±0.01mm
X.Y axis repeat location accuracy
±0.01mm
X.Y axis max moving speed
30m/min
Max cutting speed
1--16m/min
Min cutting line with
0.02mm
Working Voltage
220V/50Hz 380V 50/60HZ
Parameters
Material
Thickness (mm)
Max Cutting Speed (m/min)
Auxiliary Gas
Carbon Steel
0.5
18m
Oxygen
1
10m
2
6m
3
3m
4
2.5m
Stainless steel
0.5
18m
Nitrogen
1
12m
2
5m
3
3m
Detailed Images

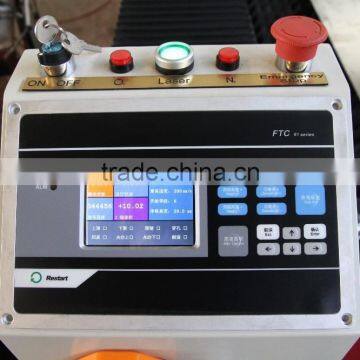

CNC controller

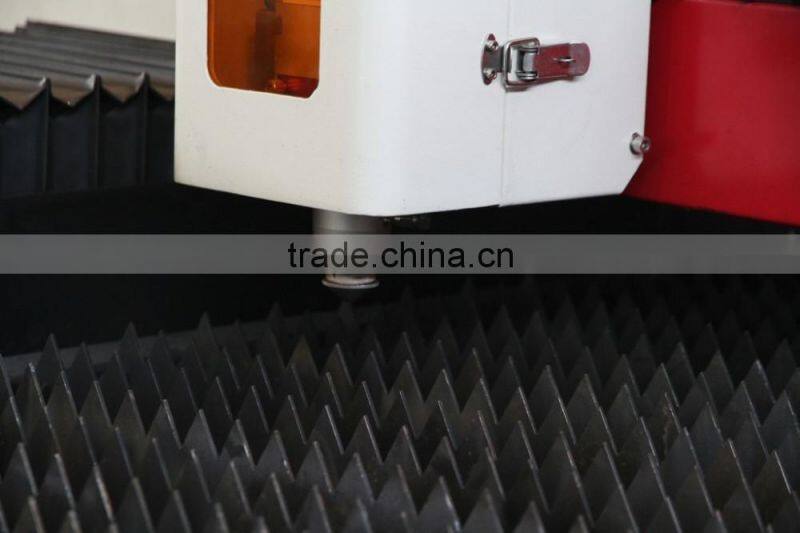

auto-following laser head

automatically adjust the focul distance according to the bump degree of plate

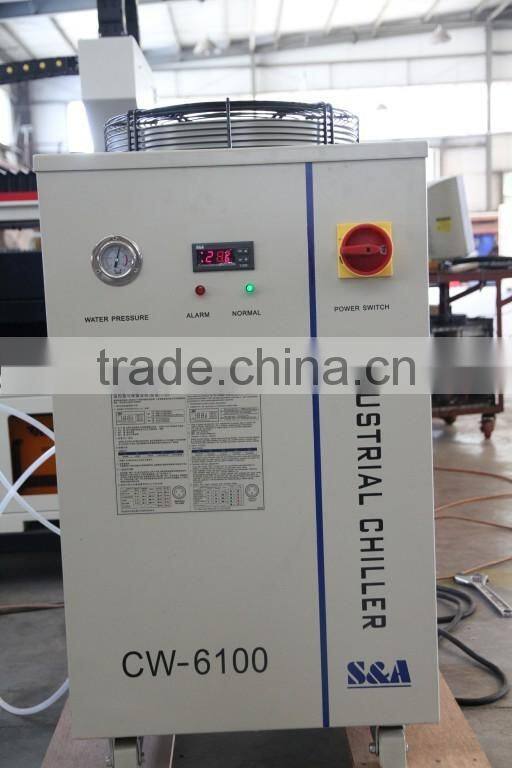

water chiller

CW-6100 water chiller
dual cooling function
Our Service

- We provide 12 months warranty for the machine.
-All extra parts for the machine can be purchased with agent price.
- Email/ Skype/ MSN/ Trade manager online to support.
-Life-long technical support and free after-sale service.
-Professional technical team and salesperson help you with troubleshooting
procedures via Internet and Phone any time when needed.
-Free and professional training at our factory.
-Door-to-door service if necessary.

Packing & Delivery
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
