Dot pin graphic dot peen marker device

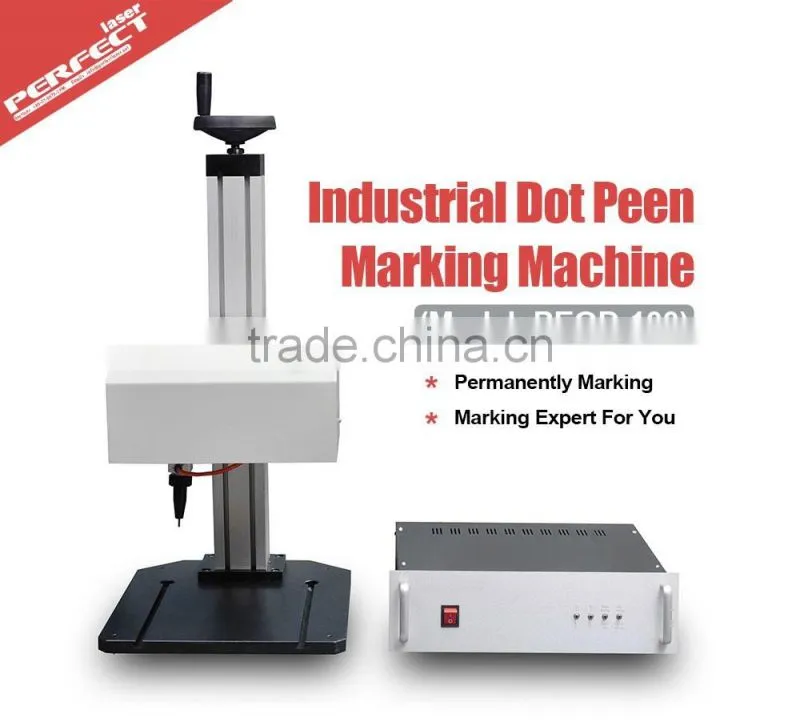

Perfect Laser’s Industrial Dot Peen Marking Machine (Model: PEQD-100) is suitable for Flat Marking and nameplate marking.
It is a industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal or no-metal materials) permanently.
>>>Applicable Industry
Automobile, Motorcycle, Mechanism, Petroleum, Aeronautical and Space, Electric apparatus.
>>>Applicable Material
It is adequate for marking characters, letters, serials numbers and VIN codes on bodywork of motorcycles, connecting rods, engines, steel pipe, cylinder and cylinder various stepper motors and mechanical parts, machine tools, metal pipes, pump bodies, valves, fastening pieces and various hard plastic products.

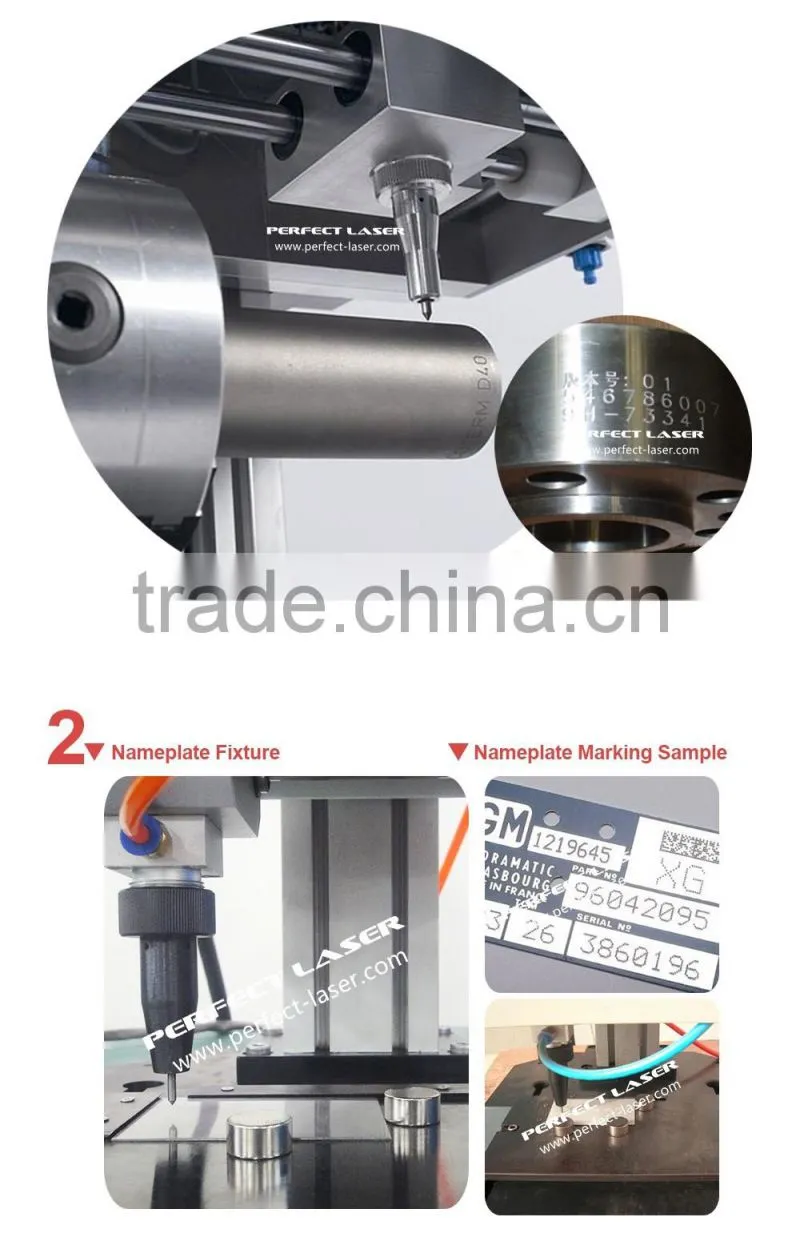

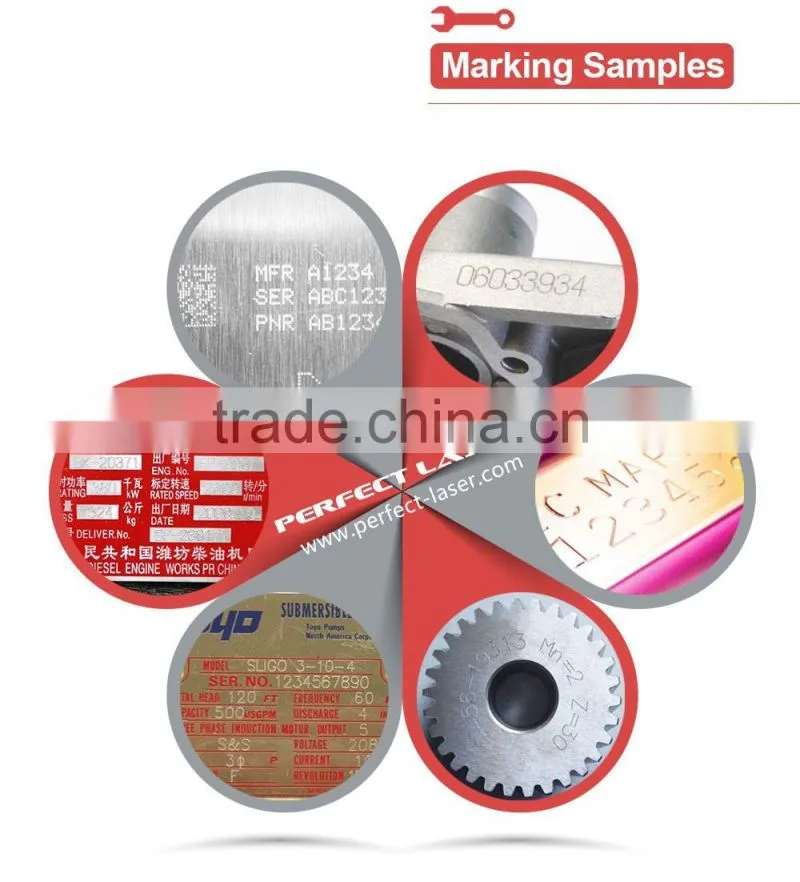

>>>Marking Sample
1. It enables flat surface marking of the work piece.
2. Applying the most widely used up-down lifting structure to realize multi-functions.
3. Controlled by computer, with the easy-to–operate WINDOWS system, Perfec Laser’s professional marking software has a wide application and can operate under WINDOWS XP.
4. Powerful edit function. It can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically.
5. It can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.
6. It can support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, and TTF in Windows.
7. Marking contents could be saved automatically and not be destroyed during power-off of the machine.
8. Both planar and three-dimensional rotating is available.
>>>Technical Data
Machine Description |
Dot Peen Marking Machine |
||
Model |
PEQD-100 |
PEQD-025 |
PEQD-100E |
Machine Type |
Flat Marking |
Flat + Rotary Marking |
LCD Control + Flat Marking |
Rotary Function |
No |
Yes |
No |
Standard Marking Area: |
150mm×100mm |
||
Optional Marking Area: |
300mm×200mm / 400mm×300mm / 200mm×100mm |
||
Marking Depth: |
0.01~2mm |
||
Marking Speed: |
≤50mm/s (for characters height of 3mm / 3-4 numbers /second) |
||
Lifting Range: |
0-300 mm |
||
Marking Accuracy: |
0.01 mm |
||
Pin Hardness: |
HRC 73 |
||
Power Supply: |
220V±10%, 50HZ |
||
Air Pressure: |
0.2-0.6 Mpa |
||
Machine Power: |
≤400 W |
||
Working Environment: |
-5~40 ℃ |
||
Whole Machine Weight: |
50 Kgs |
60 kgs |
|

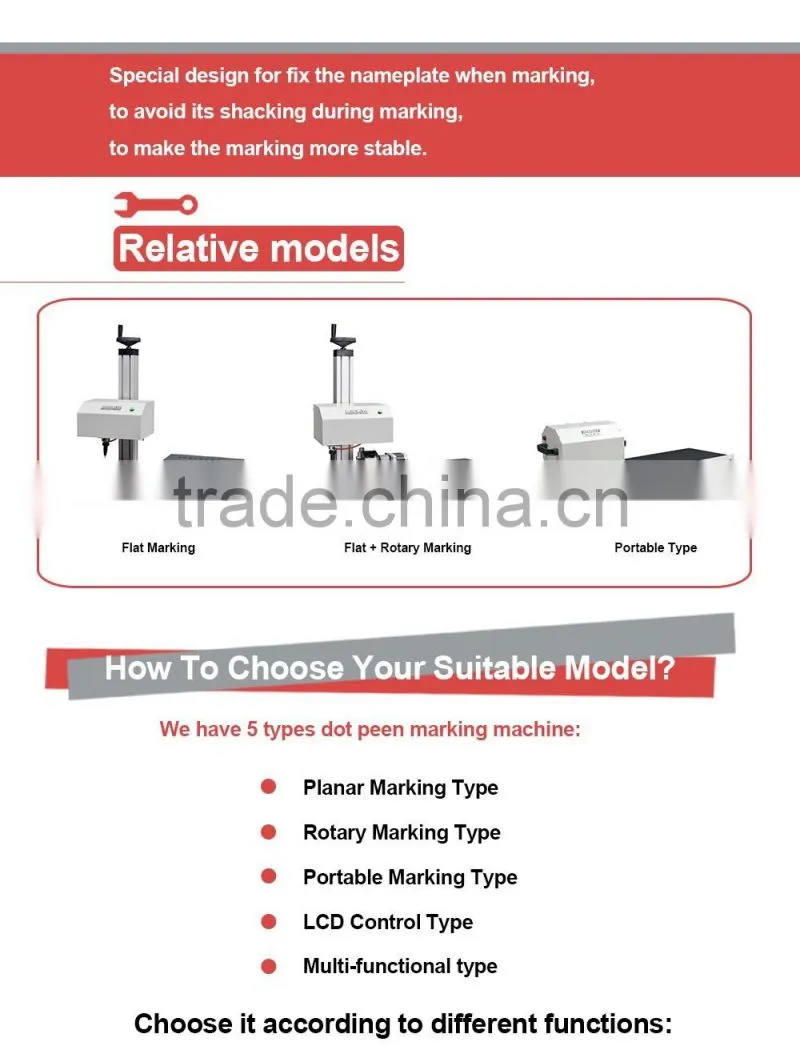

>>>Optional Items of dot peen marking machine for metal parts
Models |
PEQD-100 |
PEQD-025 |
PEQD-030 |
PEQD-100E |
PEQD-025E |
PEQD-030E |
|
Types |
Planar Marking |
Rotary Marking |
Portable Marking |
Applications |
Suitable for flat surface marking.
Widely used in the fields of automobile, motorcycle, mechanism, petroleum, aeronautical and space, electric apparatus and suitable for markings on steel, metal, nonmetal and hard plastic materials. |
Adequate for both flat surface marking and rotary marking.
Widely used on bodywork of motorcycles, connecting rods, engines, steel pipe, cylinder and cylinder various stepper motors and mechanical parts, etc. |
Especially for marking on large-sized and unmovable metal items.
Widely used on car body,car frames, car chassis, connecting rods, petrol pipe, crossbeam, mechanical parts, machine tools, metal pipes, pump bodies, fastening pieces, etc. |

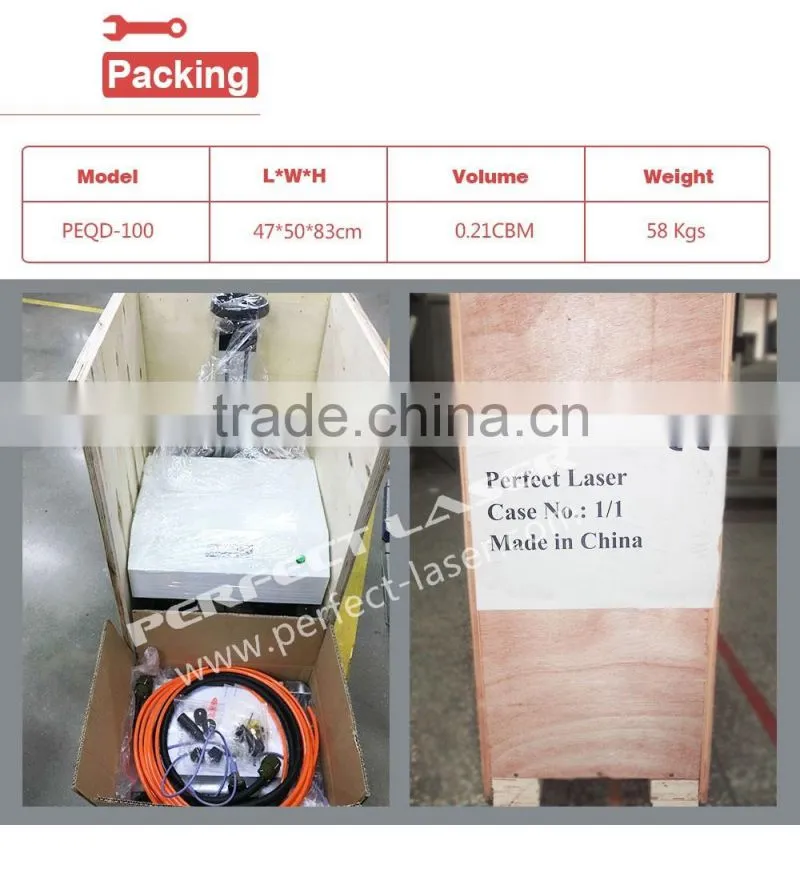

Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
