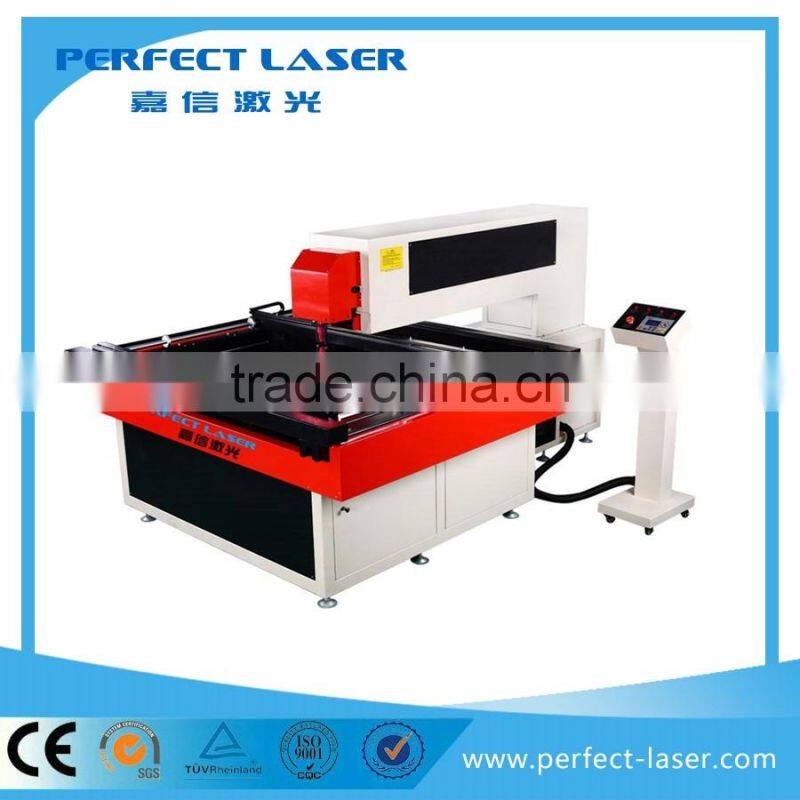

2016 easy operation laser cutting machine Acrylic/Crytal/Glass rotary die
Hot Sale Die Board Laser Cutting Machine Product Introduction:
1. The Unique design can detach laser tube room from operation table can avoid machine shaking while
operating to affect laser light stability,and this design is of easy shipping and can effectively prevent
machine'stransformation , machine is easy install and adjust working table's Horizontal or Vertical .
2. The machine applies the sealed movement protection and the sealed exhaust to keep the machine
from thecorrosion of the smoke , thus the machine keeps in a good working state.
3. The operating system is Perfect Laser Laser company owns' latest system, simple operation, AutoCAD,
CorelDraw mapping software, one-time direct output without conversion format. System also comes with
memory,can save the file on the mainboard. The operating system also continued carving with power function.
4. Low gravity reduce inertia which can help keep stable moving and high accuracy cutting,Classical stable
laser light design which need only simple adjust by Horizontal or Vertical
Hot Sale Die Board Laser Cutting Machine Features:
1. High technology: Our machines are base on our original patent technique which was the first level
among this industry in China.
2. High stability: The import guide rail and 2D high precise working table insure the high stability of the
cutting performance.
3. Low power consumption: We use RECI Co2 laser tube to cause you a low power consumption, and
the lasertube can use more than 10000 hoursof larger power cutting machine.
4. No consumption of inactive gas: Our machine can work without any inactive gas, this also save your cost.
5 .Two laser head coaxial cutting: We use two laser head to cut both sides of the die board in the same axle,
this technology is also very mature and can raise the efficiency.
6. The auto focus function: With this function, you can deal with some irregular working pieces but not only
the smooth and flat ones.
Hot Sale Die Board Laser Cutting MachineTechnical Parameters
Working Mode |
Up and down cutting , two 150W laser tube fix in both upside and downside of the laser head for pneumatic auto-focus mode, in the case of plate deformation can maintain consistent up and down the seam cutter.
|
Processing Area | 1200*1200mm 1200*800mm |
cutting material and thickness | Wood PVC acrylic and nonmetal 1-28mm |
Cutting speed | 0-5000mm/min software setting (18mm wood,30m/hour) |
Resolution Power | 0.0064mm |
Minimum shaping character | Chinese Character :2x2mm,letter :1x1mm |
Positioning accuracy | 0.1mm |
Repositioning accuracy | ≤0.1mm |
Power supply | AC220±5% 50/60 HZ 10A |
Digital control panel | LCD ,Chinese and English operating menu , touching button |
Transfer port |
128 Mmemory,USBconnection offline operation ,devices can be individually placed in
|
Set of instructions | International standard ;compatible with Auto CAD ,CorelDraw software ,etc. |
Control software | Precision Die cutting system of Perfect Laser Laser |
Weight | 650Kg -850KG |
Hot Sale Die Board Laser Cutting Machine Components:
The form of optical path
| Fixed optical (laser head fixed ,plate movement) |
Computer adoption
| LCD Screen ,DSP Intelligent Control System ; available for direct output of original pictures from USB port ,can work without computer |
Laser Tube power and Type
| 300W CO2 sealed glass ,the laser tube warranty 9 month ,and can work more than 10000 hours |
Lens
| Original South Korea imported Six-balanced outer sliding guide rail and integrated frame-structure |
Cooling System
| Original Singapore imported laser lens |
Guide Rail
| Industrial cycle water cooler with water protection system. |

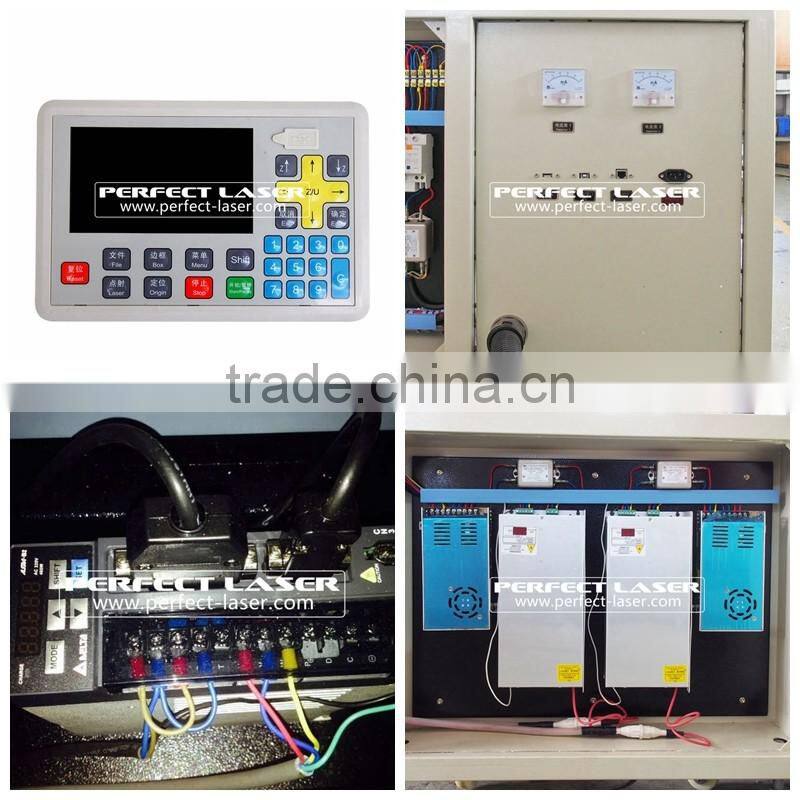

Machine Detail :

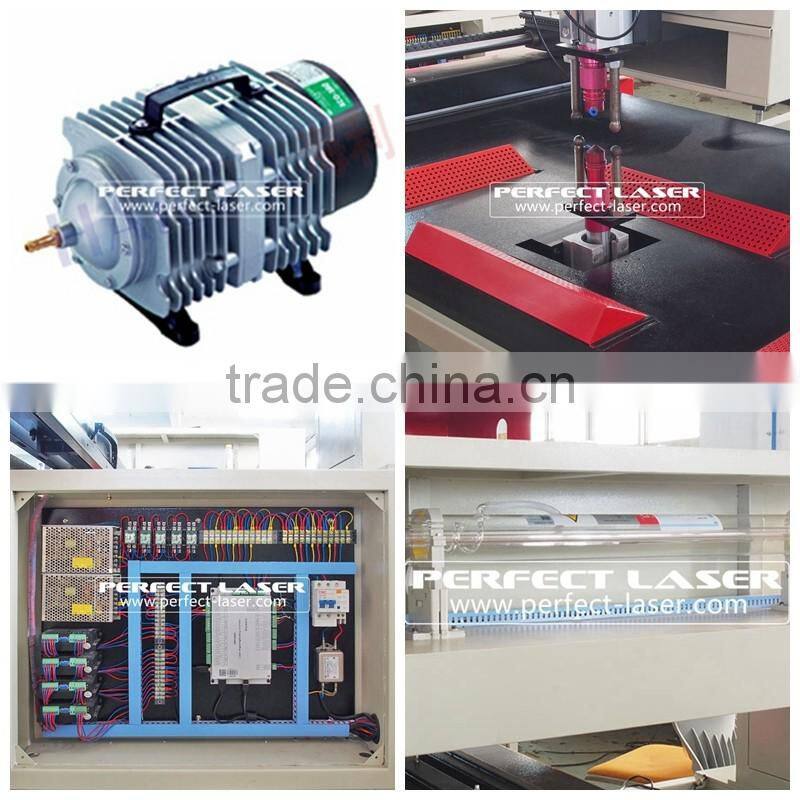

Accompany machine parts:
Die board cutting & sample
Terms & Conditions:
Delivery Term: | FOB Shanghai Port. |
Payment Term: | By T/T Payment (30% advance payment, 70% before delivery) |
Delivery time: | Within 20-30 working days after receive your payment. |
Shipment: | By Sea |
Packing: | Wooden Box Comply with International Export Standard. |
Quality Guarantee Terms: | Quality guarantee term is for 12 months. Malfunctions which are caused by machine and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
Validity Time: | The period of validity for this quotation is 4 weeks. |
Technical Support:
1.Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.
(If you use our computer and provide samples to us.)
2.VCD & User Manual will be sent to clients to help them better use the machines.
3.Any problems occur while using, professional advice will be given by us.
4.Lifelong maintenance service;
5.Lifetime software free upgrades;
6.Engineer door to door training or maintenance if needed.
