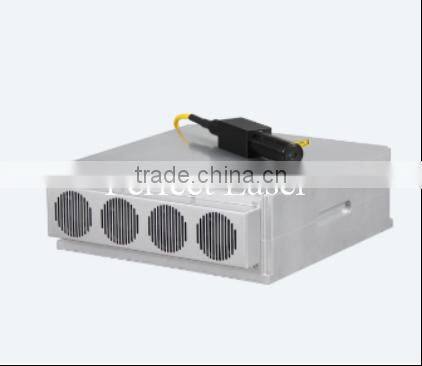

Pulsed Fiber Laser
Product Introduction
Pulsed fiber laser source is designed for high-speed and efficient laser marking system. Compared to traditional laser machines, pulse laser can increase transforming efficiency per watt of pump light. It’s at least ten times faster than traditional one. Automated pattern of low consumption fits the operation in laboratories or outside. The delicate machine can be placed independently. It can be used at any time and can be connected to the user’s device directly.
Application Fields
It’s widely applied for fiber laser markers.
Technical Parameters
.
Technical parameter |
10W |
20W |
30W |
50W |
|
Central wavelength(nm) |
1060~1085 |
1060~1085 |
1060~1085 |
1060~1085 |
Polarization |
random |
random |
random |
random |
|
Nominal average output power (W)
|
≥10 |
≥20 |
≥30 |
≥50 |
Single pulse energy |
0.5 |
1 |
1 |
1 |
Typical beam quality(M2) |
<1.5 |
<1.5 |
<1.8 |
<1.8 |
Beam diameter(mm) |
6~8 |
6~8 |
6~8 |
6~8 |
Pulse width(ns) |
<100 |
<130 |
<130 |
<130 |
Pulse repetition rate(kHz) |
20 - 80 |
20 - 80 |
30 - 80 |
50 - 100 |
Power tunable range(%) |
10-100 |
10-100 |
10-100 |
10-100 |
Output fiber length(m) |
2.0 |
2.0 |
2.0 |
2.0 |
Operating voltage(VDC) |
24±1 |
24±1 |
24±1 |
24±1 |
Typical power consumption(20℃)(W) |
120 |
200 |
300 |
400 |
Cooling |
Forced air |
Forced air |
Forced air |
Forced air |
|
Dimension W×D×H(mm)
|
260×391×120 |
260×391×120 |
260×391×120 |
360×396×123 |
Working temperature(℃) |
0-40 |
|||
Operation Humidity |
30~85 |
|||
Storing temperature(℃) |
-10~60 |
|||
Remark
1. Payment Terms: 100% T/T in advance before delivery.
2.Delivery Method: By sea or by Express DHL/ Fedex.
3. Packing: Compound wooden cases comply with international exporting standard.
4. Warranty: 1year
