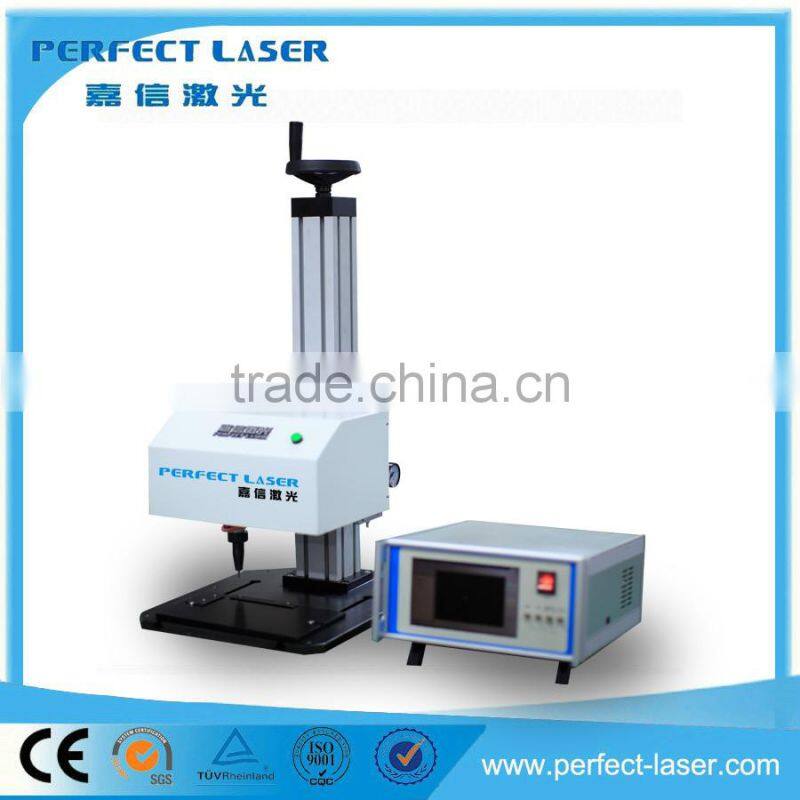

PEQD 100E industrial LCD flat dot pin marking machine on metal
(Model: PEQD-100E)
Perfect Laser’s Industrial Dot Peen Marking Machine (Model: PEQD-100E) is suitable for Flat Marking and nameplate marking.
It is a industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal or no-metal materials) permanently.
Applicable Industry:
Automobile, Motorcycle, Mechanism, Petroleum, Aeronautical and Space, Electric apparatus.
Applicable Material:
It is adequate for marking characters, letters, serials numbers and VIN codes on bodywork of motorcycles, connecting rods, engines, steel pipe, cylinder and cylinder various stepper motors and mechanical parts, machine tools, metal pipes, pump bodies, valves, fastening pieces and various hard plastic products.

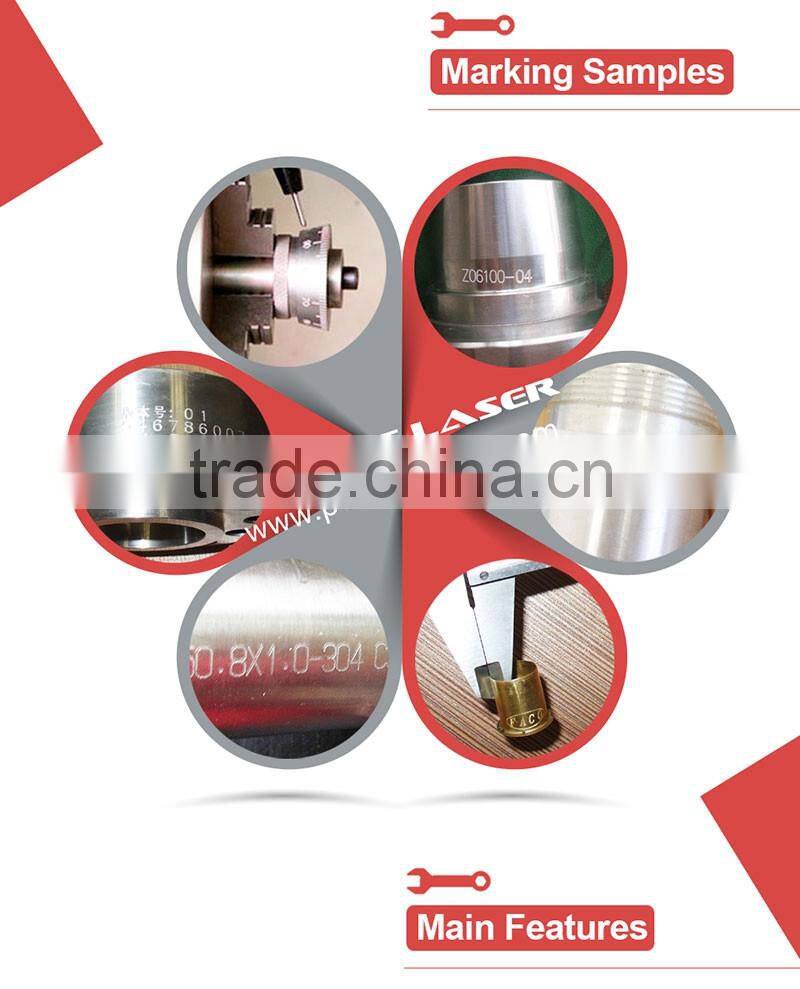

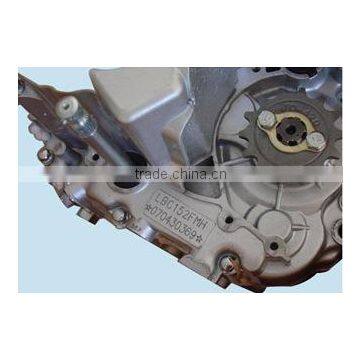

Marking Sample
Main Features
1. It enables flat surface marking of the work piece.
2. Applying the most widely used up-down lifting structure to realize multi-functions.
3. Controlled by computer, with the easy-to–operate WINDOWS system, Perfec Laser’s professional marking software has a wide application and can operate under WINDOWS XP /7.
4. Powerful edit function. It can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically.
5. It can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.
6. It can support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, and TTF in Windows.
7. Marking contents could be saved automatically and not be destroyed during power-off of the machine.
8. Both planar and three-dimensional rotating is available.
Technical Data
Machine Description |
Dot Peen Marking Machine |
||
Model |
PEQD-100 |
PEQD-025 |
PEQD-100E |
Machine Type |
Flat Marking |
Flat + Rotary Marking |
LCD Control + Flat Marking |
Rotary Function |
No |
Yes |
No |
Standard Marking Area: |
150mm×100mm |
||
Optional Marking Area: |
300mm×200mm / 400mm×300mm / 200mm×100mm |
||
Marking Depth: |
0.01~2mm |
||
Marking Speed: |
≤50mm/s (for characters height of 3mm / 3-4 numbers /second) |
||
Lifting Range: |
0-300 mm |
||
Marking Accuracy: |
0.01 mm |
||
Pin Hardness: |
HRC 73 |
||
Power Supply: |
220V±10%, 50HZ |
||
Air Pressure: |
0.2-0.6 Mpa |
||
Machine Power: |
≤400 W |
||
Working Environment: |
-5~40 ℃ |
||
Whole Machine Weight: |
50 Kgs |
60 kgs |
|
Machine Details:

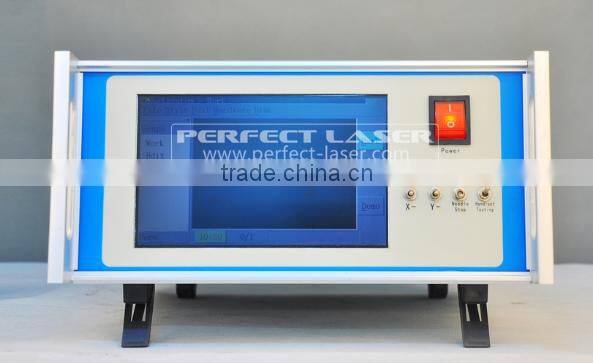

Control Box
Integration design, Small size, Simplify structure
LCD MONITOR: No Need PC, Easy Operate

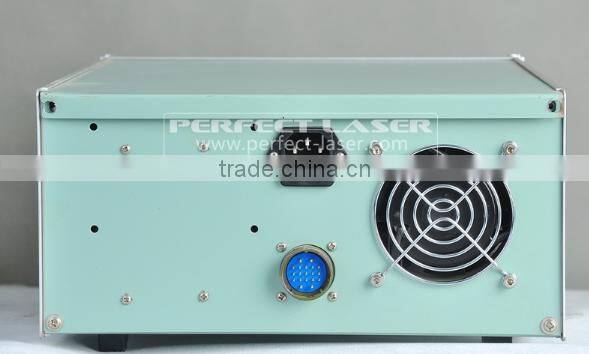

Exhaust Fan
Special design to exhaust the heat inside of machine
Ensure machine long term working

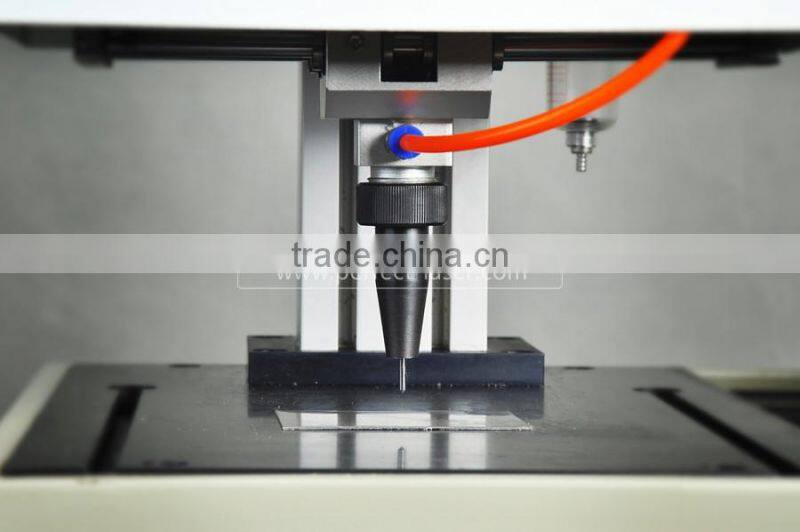

Marking Pinhead
Made by Imported Hard Alloy
Rigidity can reach 92 HRA.

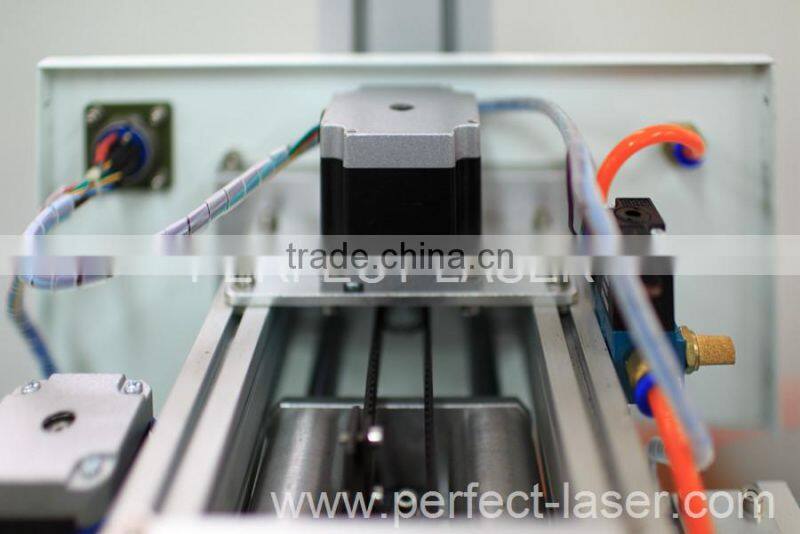

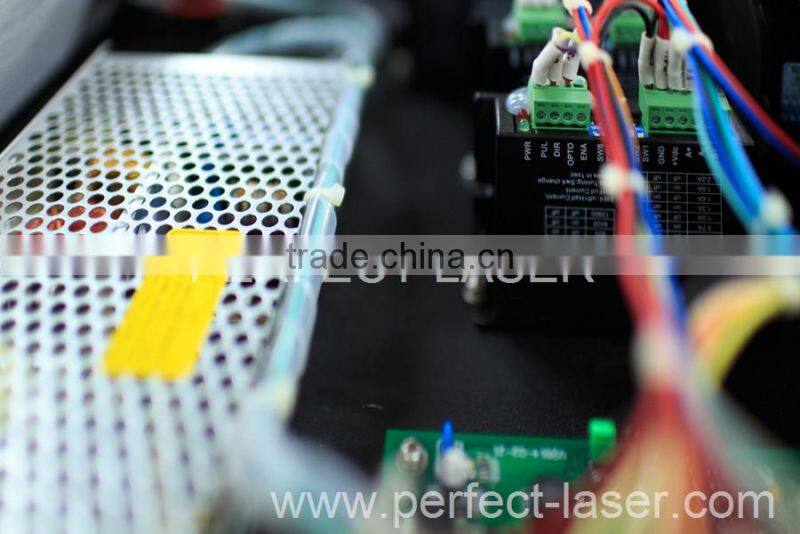

Stepper Driver
Low noise, High frequency
Little vibration, Low temperature rise
Liner Guide Rail
Automatic Lubrication,Low running noise, Running smoothly,Easy maintenance

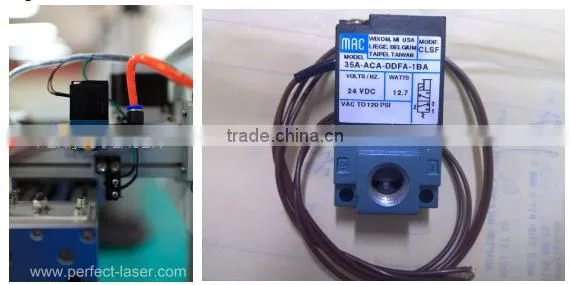

High-frequency Valve
Adopt USA imported MAC brand.
Using time can reach 0.1-0.2 billion times.

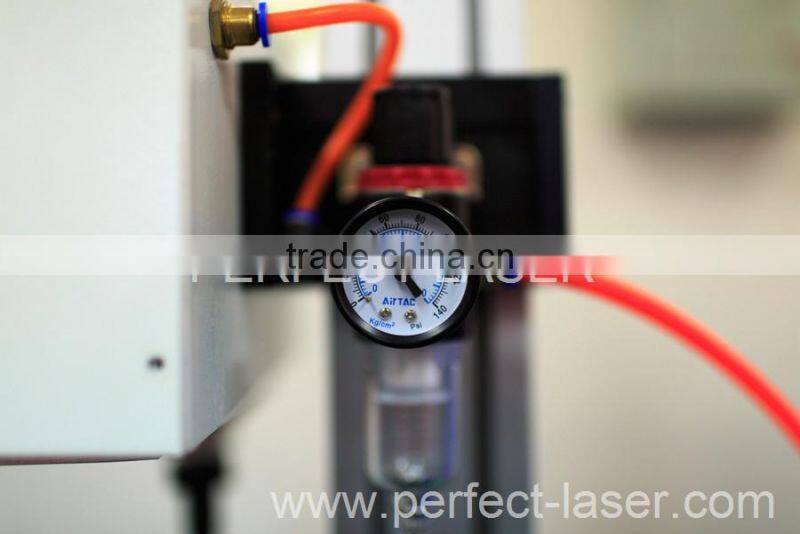

Gas-pressure Meter
Control the pressure, ensure higher precision.
Marking Head Cover
Compact structure, Beautiful Design
Dust-proof, Water-proof
Optional Items:
1)Rotary Fixture for Marking on Cylinder Parts

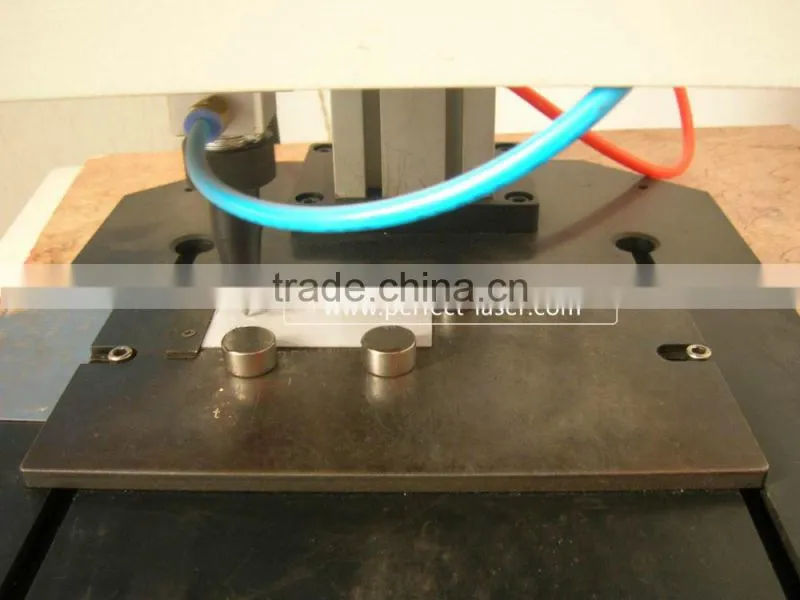

2 ) Nameplate Fixture:
Special design for fix the nameplate when marking, to avoid its shacking during marking, to make the marking more stable.
FAQ:
Q: Does this machine have consumable?
Answer:

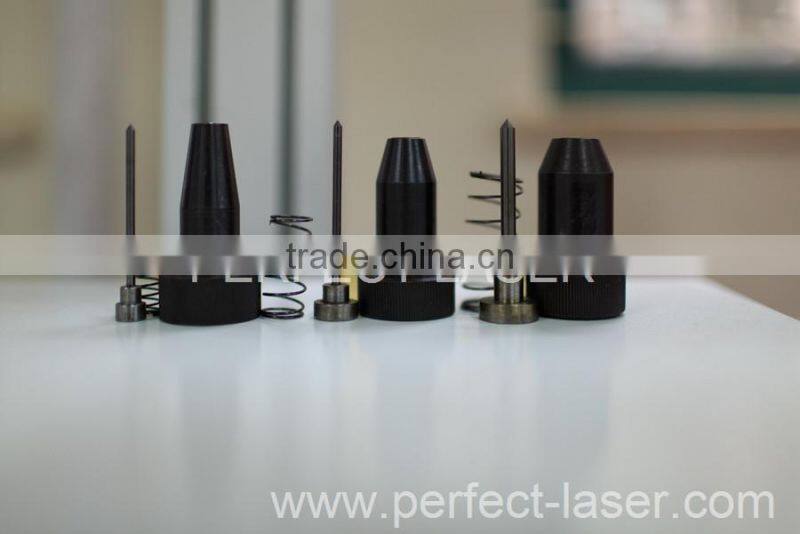

Dear, we will send 2 sets of fitting-parts (including: marking pin, pin head spring, positioning switch, rubber washer) free of charge to you together with the machine.
The value of the fittig parts is USD 65.00.
It can be used for at least 3-5 year. And the pinhead can be re-sharped by sanding machine.
So we recommend to backup 1-2 sets for future usage. Then, no more consumables.
