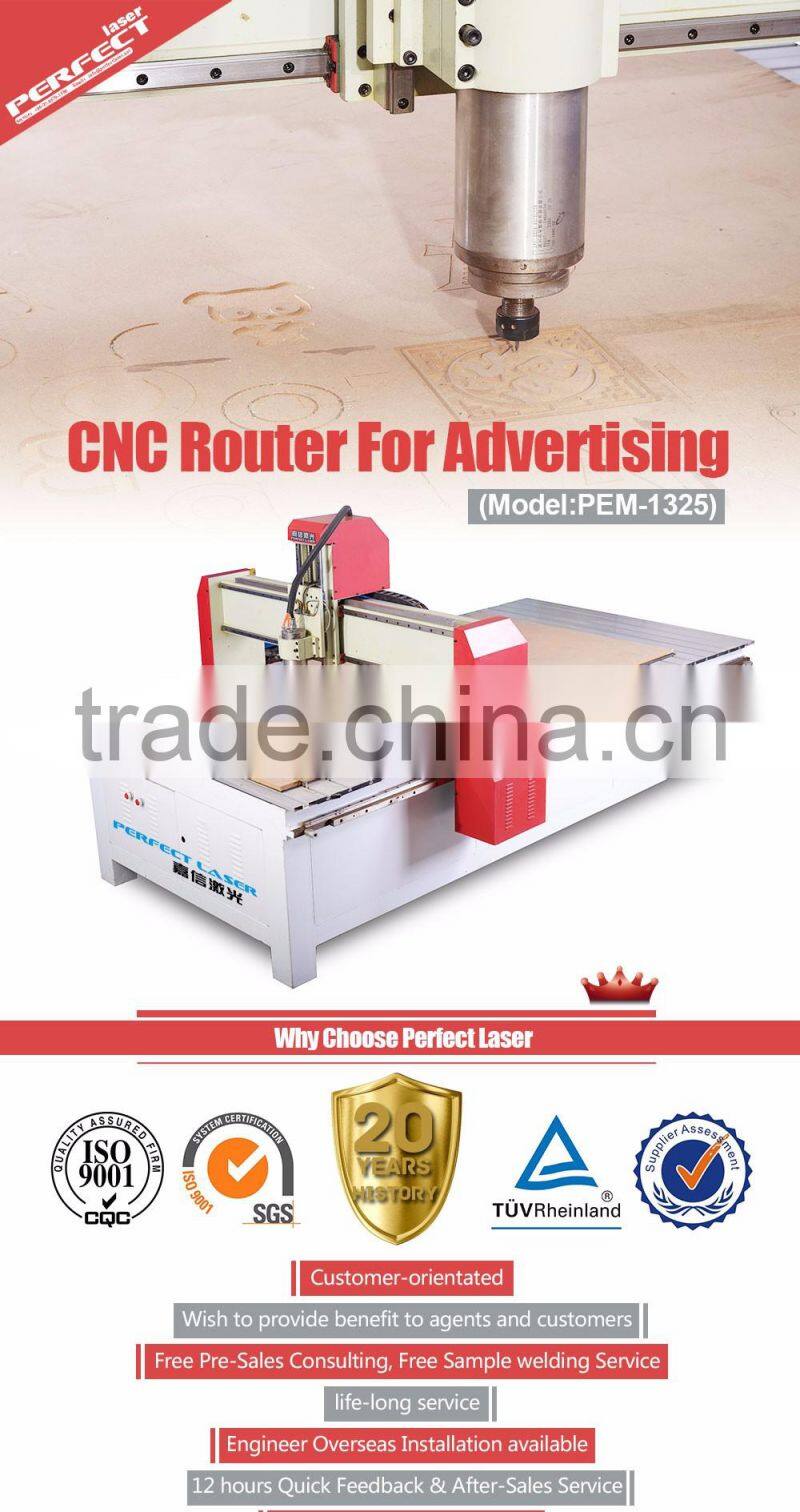

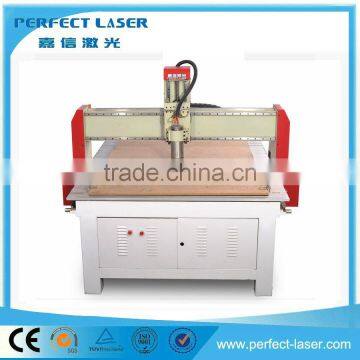

Perfect Laser PEM-1325 2.2kw 3kw 4.5kw advertising cnc router engraver with best price
(Keywords: advertising cnc router)
advertising cnc routerworking videos:
advertising cnc router for plexiglass: /watch?v=XY68ZNu5NQc
advertising cnc router for woodworking: /watch?v=Q54lQmFIInE
Applicable Fields of Advertising Cnc Router:
1>It applies to hard material such as marble, granite, glass and stone, etc.
If the stone is man-made, then the nornal advertising engraving machine is also suitable since the rigidity of the man-made stone is not as high as the native stone.
2>The maximum of the processing depth is 10mm-15mm, but it changes according to different rigidity of the materials.
Product Features of Advertising Cnc Router:

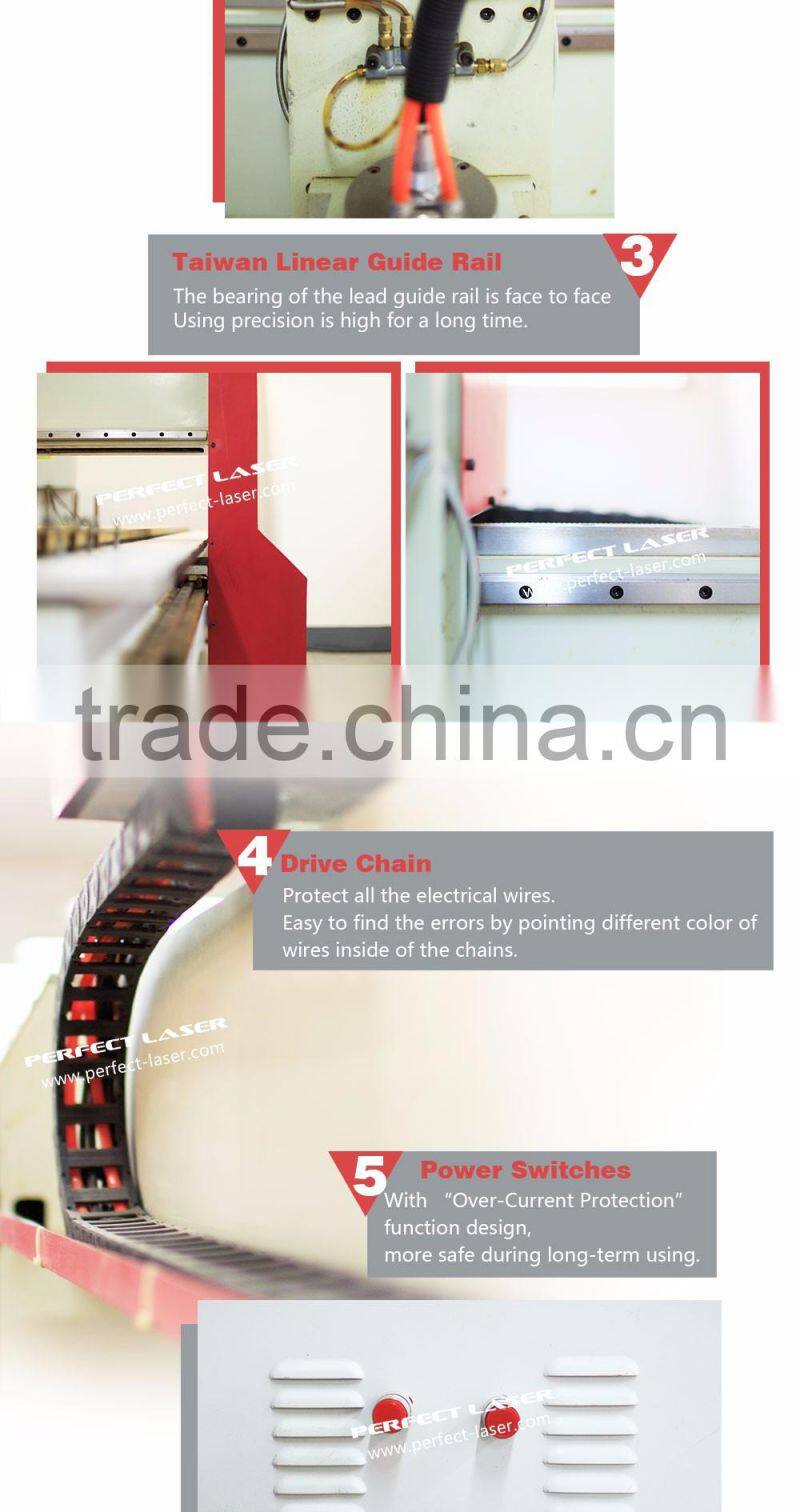

1>Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
2>Germany double nuts automatic ball screw , Excellent two-bolt pole made in Germany and sideways made in Japan or Korea.
3>Advanced DSP digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine.

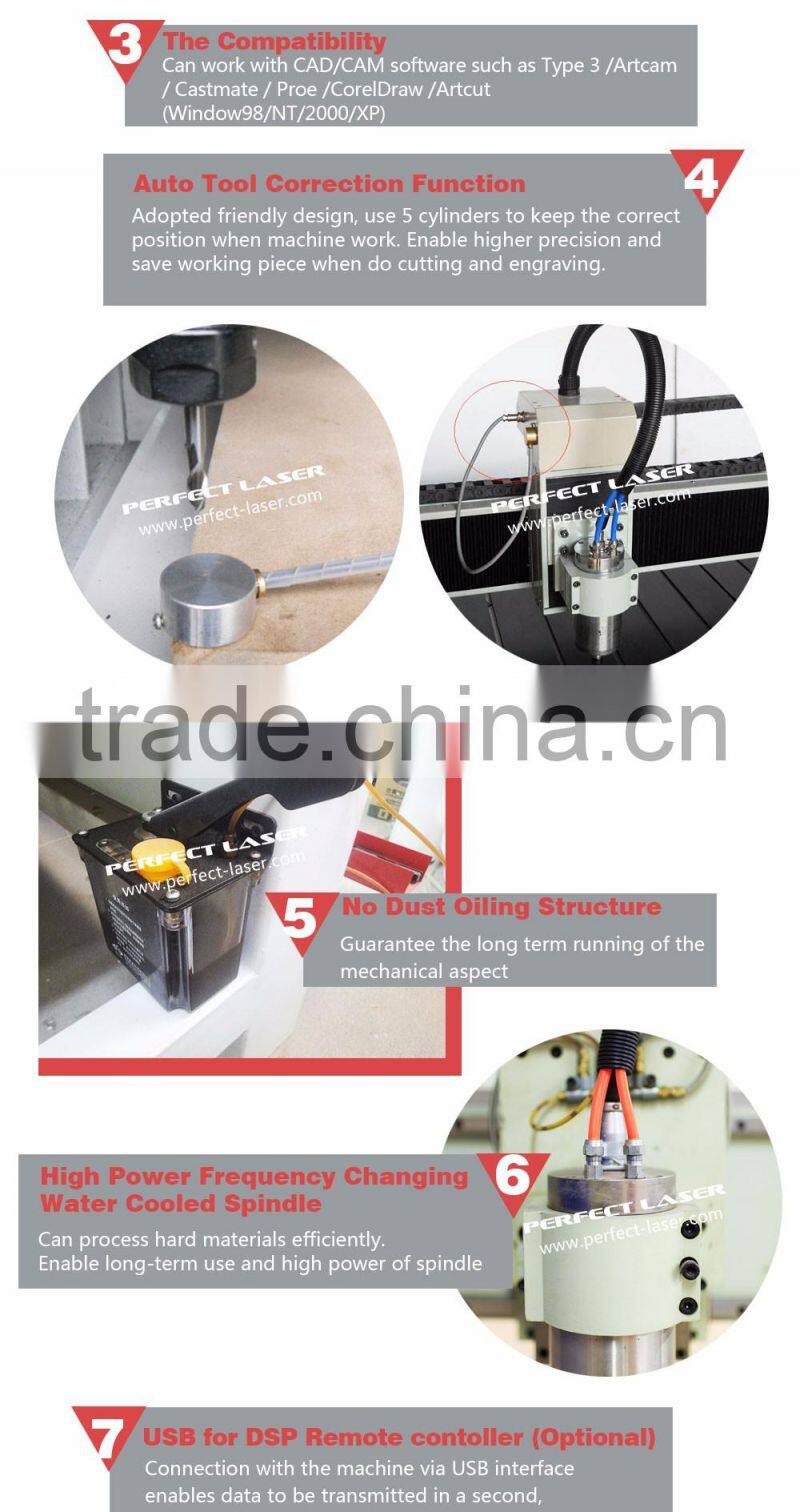

4>No dust oiling structure, guarantee the long term running of the mechanical aspect.

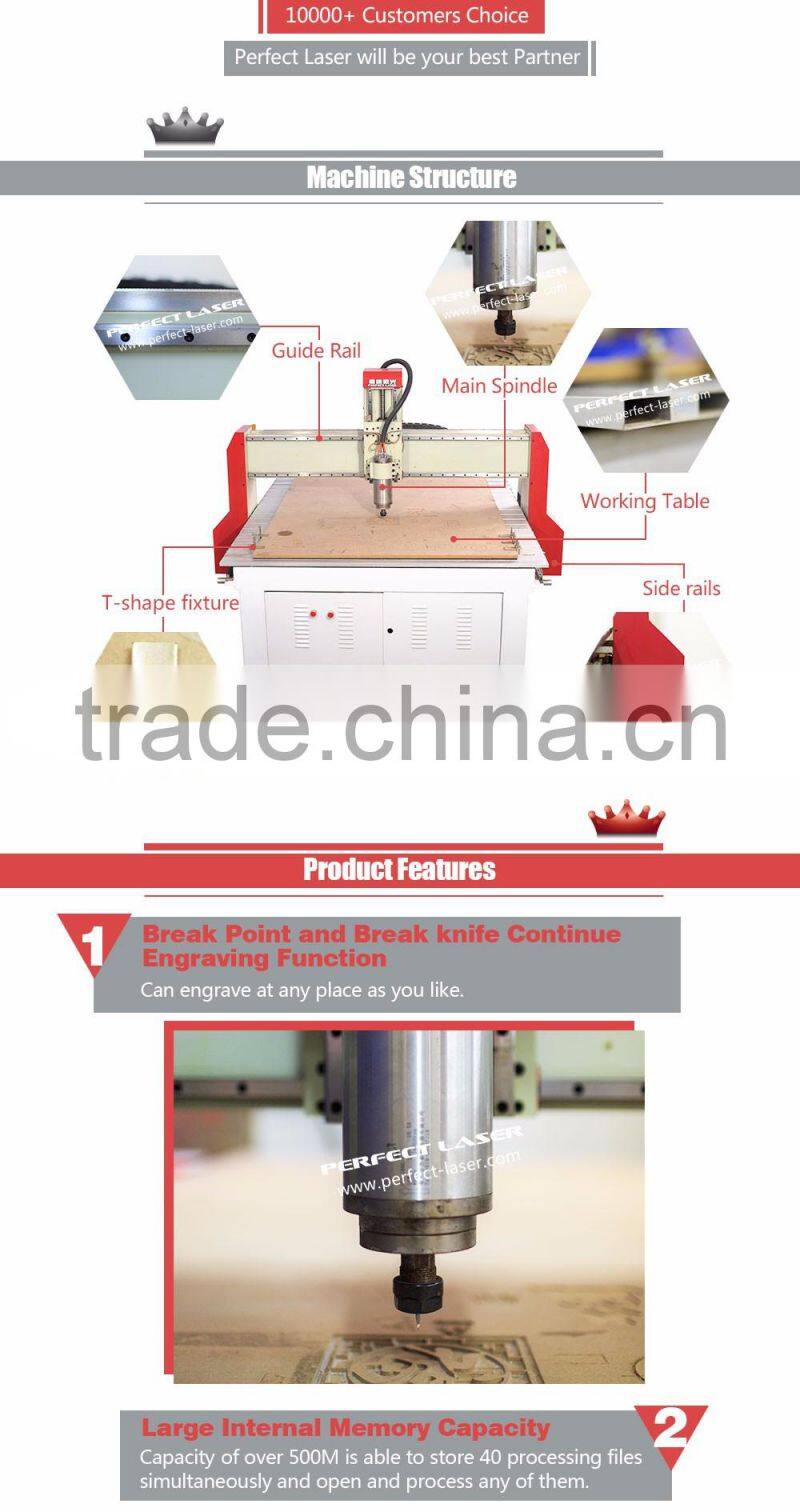

5>Break point and break knife continue engraving function, can engrave at any place as you like

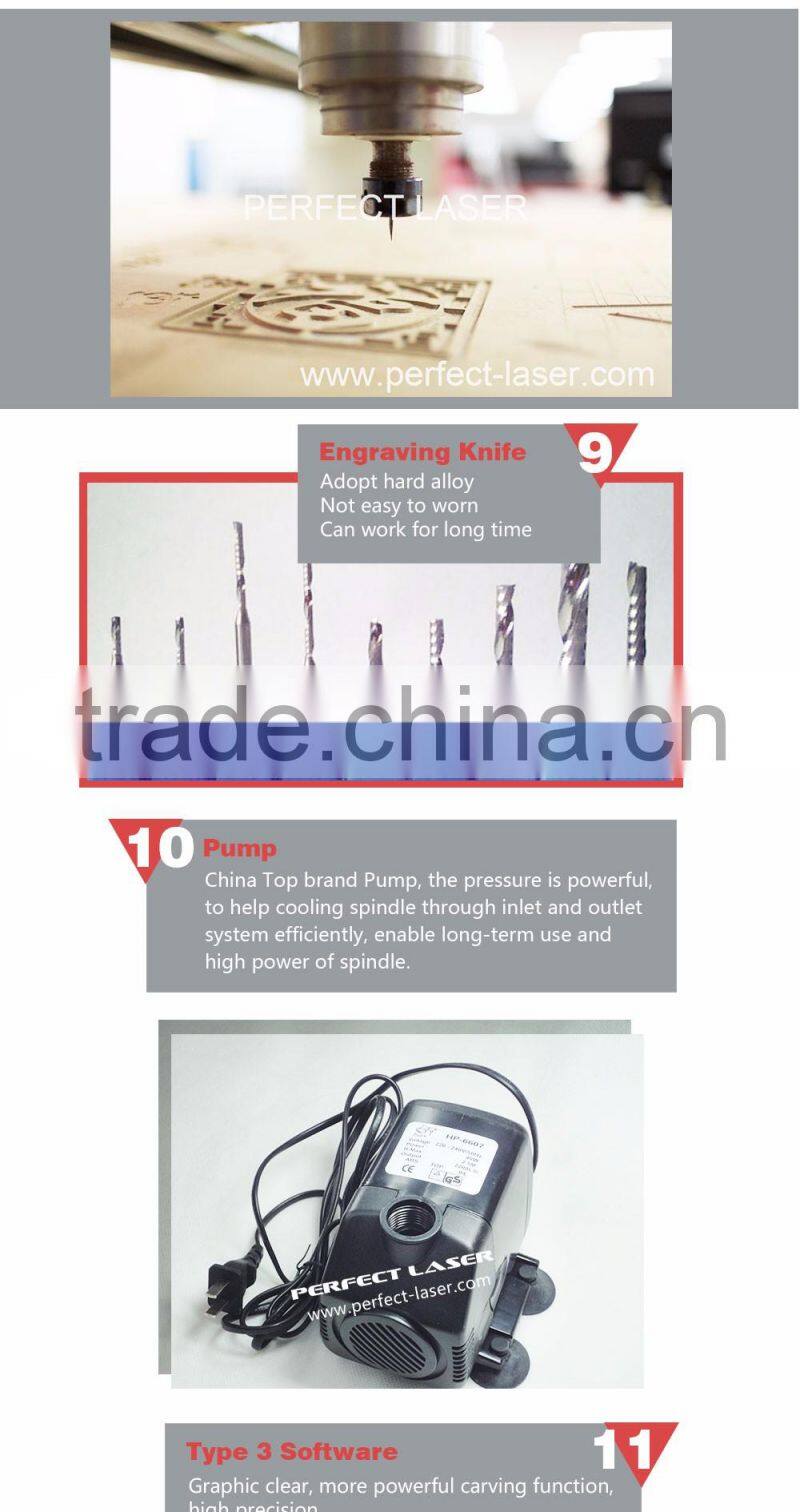

6>The compatibility is high, CAD/CAM software such as Type 3 /Art Arm / Castmate / Proe /CorelDraw /Art cut.
7>High power frequency changing water cooled spindle, can process hard materials efficiently.
8>Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them

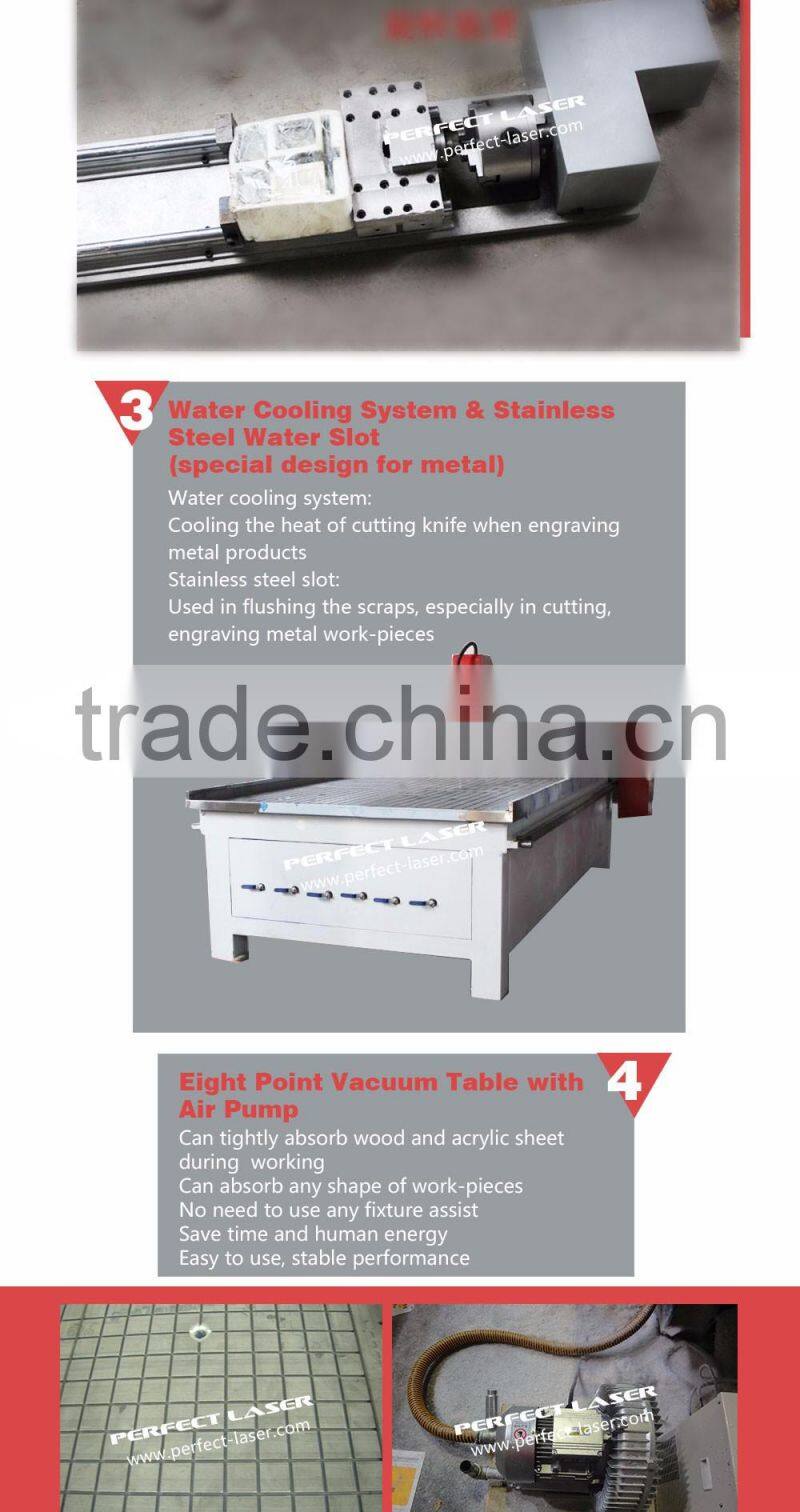

9>Reinforced load-bearing bed,Precision round rail,Spindle motor 1.5KW/2.2KW/3KW/4.5KW, Screw drive,stainless steel sink platform,Auto water cycle, Enlarge driver, 10pcs stone use knives for free.

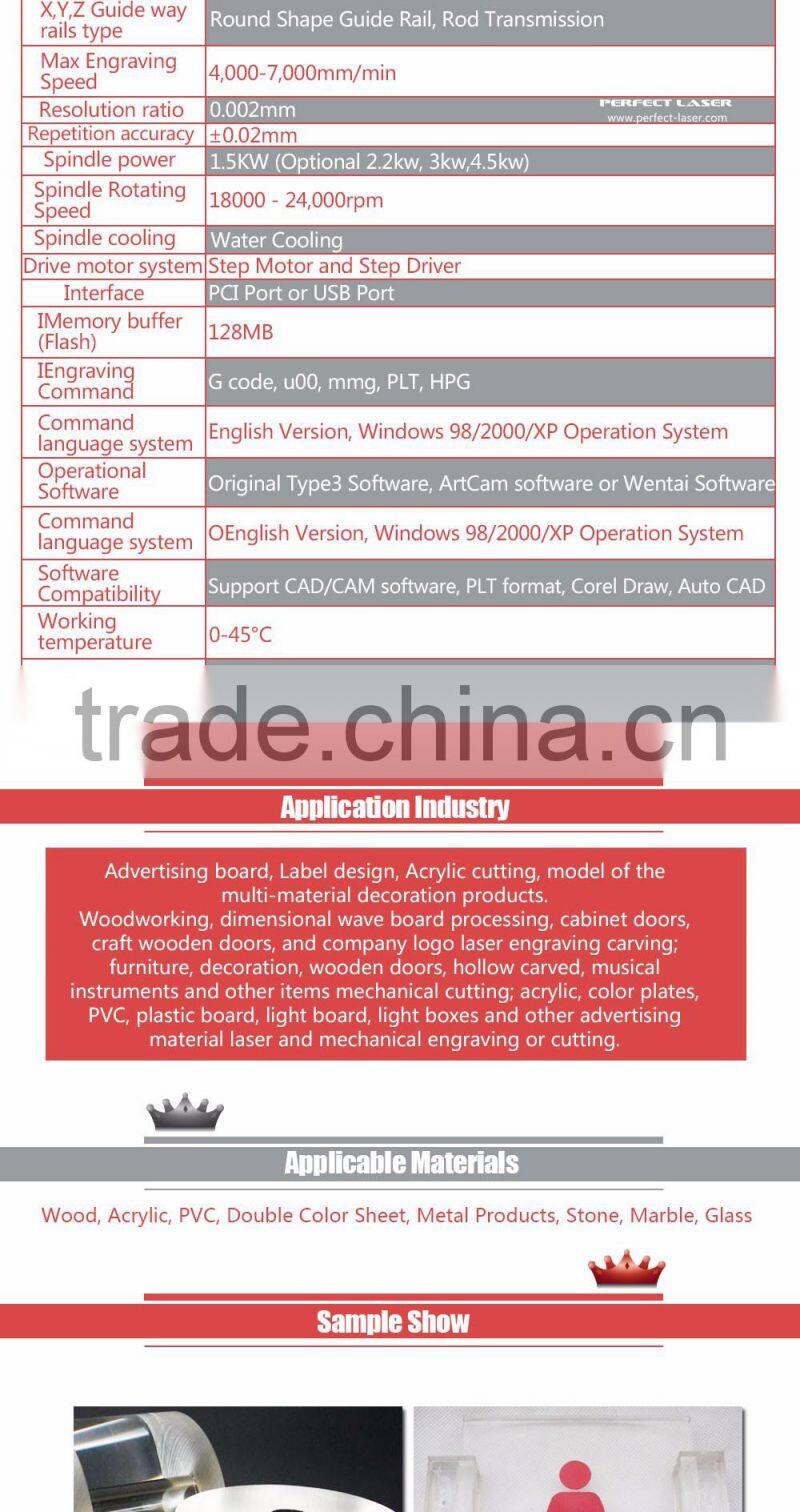

Technical Parameter of Advertising Cnc Router:
Product Name |
CNC Router for advertising |
|||||
Model |
PEM-1325(1300*2500mm) |
|||||
Power |
2.2kw |
3kw | 4.5kw | |||
Price(USD/unit) |
$3100 |
$3200 | $3600 | |||
Table material |
Aluminium Alloy |
|||||
Maximum feed height |
80mm |
|||||
X,Y,Z Guideway rails type |
Round Shape Guide Rail, Rod Transmission |
|||||
Max Engraving Speed |
4,000-7,000mm/min |
|||||
Resolution ratio |
0.002mm |
|||||
Repetition accuracy |
±0.02mm |
|||||
Spindle power |
1.5KW (Optional 2.2kw, 3kw,4.5kw) |
|||||
Spindle Rotating Speed |
6000 - 24,000rpm |
|||||
Spindle cooling |
Water Cooling |
|||||
Drive motor system |
Step Motor and Step Driver |
|||||
Interface |
PCI Port or USB Port |
|||||
Memory buffer (Flash) |
128MB |
|||||
Engraving Command |
G code, u00, mmg, PLT, HPG |
|||||
Command language system |
English Version, Windows 98/2000/XP Operation System |
|||||
Operational Software |
Original Type3 Software, ArtCam software or Wentai Software |
|||||
Command language system |
English Version, Windows 98/2000/XP Operation System |
|||||
Software Compatibility |
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD |
|||||
Working temperature |
0-45°C |
|||||
Relative humidity |
30% - 75% |
|||||
Except for 1200*1800mm, we also manfuacture other working area cnc routers, such as 300*300mm, 600*900mm, 1200*1200mm, 1200*1500mm, 1300*2500mm. Any interest, feel free let me know.
Before making best quotes for you, could you answer following questions:
* What's your material?(wood, acrylic, plastic, stone, metal etc)
* What's your material working area?
* Your material thickness?
* Your country port for checking shipping.
* If the price confirmed, when will you place order?
* If possible, could you add my skype or whatsapp?
Videos, pictures, samples, PDF are all available!
Perfect Laser Co., Ltd. (China)
Mandy / Sales Department
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
Tel: 0086-27-86791986 MP: 0086-13659885078 Fax: 0086-27-86775865
E-mail: sales04 at perfectlaser dot net QQ: 544850552
Skype: perfectlaser004 WeChat: +8615802784738
WhatsAPP:+8615802784738 VIBER: +8615802784738
