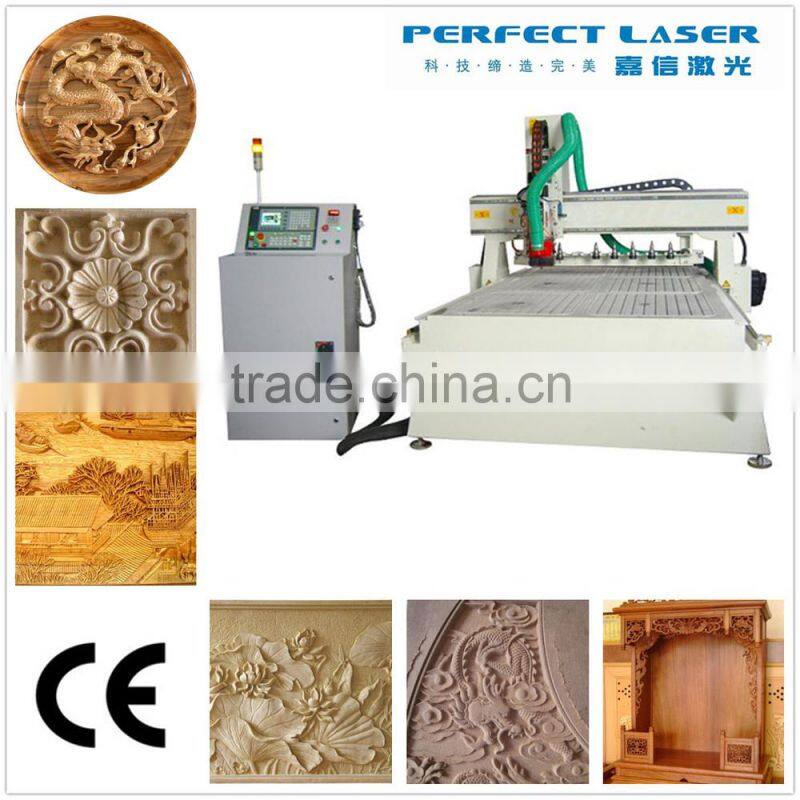

Perfect Laser PEM-6090 1.5 kw 2.2kw 3kw China Wood CNC Router
(Keywords: wood cnc router)
wood cnc router working videos:
Wood cnc router for plexiglass: /watch?v=XY68ZNu5NQc
Wood cnc router for woodworking: /watch?v=Q54lQmFIInE
Applicable Fields of Wood CNC Router:
1>It applies to hard material such as marble, granite, glass and stone, etc.
If the stone is man-made, then the nornal advertising engraving machine is also suitable since the rigidity of the man-made stone is not as high as the native stone.
2>The maximum of the processing depth is 10mm-15mm, but it changes according to different rigidity of the materials.
Product Features of Wood CNC Router:
1>Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
2>Germany double nuts automatic ball screw , Excellent two-bolt pole made in Germany and sideways made in Japan or Korea.
3>Advanced DSP digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine.
4>No dust oiling structure, guarantee the long term running of the mechanical aspect.
5>Break point and break knife continue engraving function, can engrave at any place as you like
6>The compatibility is high, CAD/CAM software such as Type 3 /Art Arm / Castmate / Proe /CorelDraw /Art cut.
7>High power frequency changing water cooled spindle, can process hard materials efficiently.
8>Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them

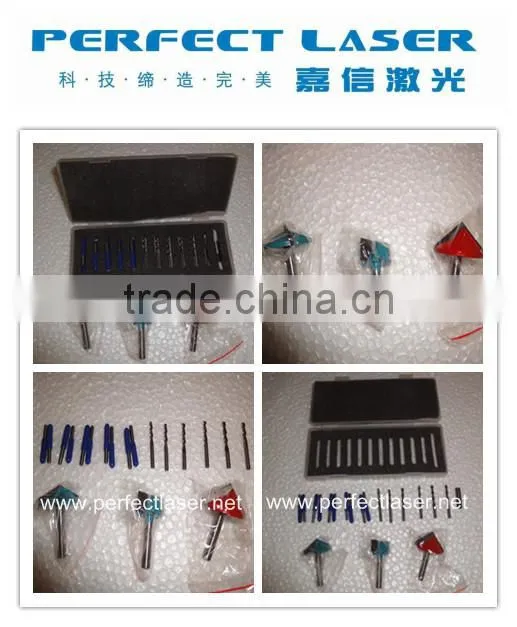

9>Reinforced load-bearing bed,Precision round rail,Spindle motor 1.5KW/2.2KW/3KW/4.5KW, Screw drive,stainless steel sink platform,Auto water cycle, Enlarge driver, 10pcs stone use knives for free.

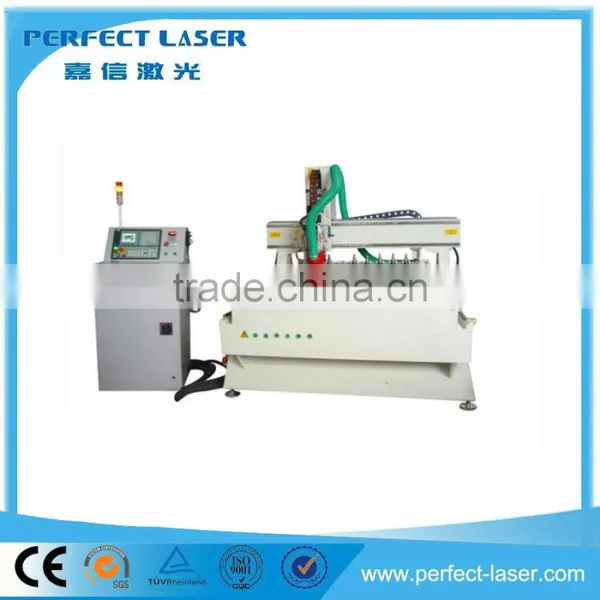

Wood CNC Router:
Technical Parameter of Wood CNC Router:
Product Name | CNC Router for wood | |||||||
Model | PEM-6090(600*900mm) | |||||||
Power | 2.2kw | 3kw | ||||||
Table material | Aluminium Alloy | |||||||
Maximum feed height | 80mm | |||||||
X,Y,Z Guideway rails type | Square guide rail/Gear transmission | |||||||
Max Engraving Speed | 4,000-7,000mm/min | |||||||
Resolution ratio | 0.002mm | |||||||
Repetition accuracy | ±0.02mm | |||||||
Spindle power | 1.5KW (Optional 2.2kw, 3kw,4.5kw) | |||||||
Spindle Rotating Speed | 6000 - 24,000rpm | |||||||
Spindle cooling | Water Cooling | |||||||
Drive motor system | Step Motor and Step Driver | |||||||
Interface | PCI Port or USB Port | |||||||
Memory buffer (Flash) | 128MB | |||||||
Engraving Command | G code, u00, mmg, PLT, HPG | |||||||
Command language system | English Version, Windows 98/2000/XP Operation System | |||||||
Operational Software | Original Type3 Software, ArtCam software or Wentai Software | |||||||
Command language system | English Version, Windows 98/2000/XP Operation System | |||||||
Software Compatibility | Support CAD/CAM software, PLT format, Corel Draw, Auto CAD | |||||||
Working temperature | 0-45°C | |||||||
Relative humidity | 30% - 75% | |||||||
Optional Items of CNC Router:
* Dust collecting system
* Vacuum absorbing table
* DSP remote controller
* rotary system
Advertising CNC Router Engraving and Cutting Samples:

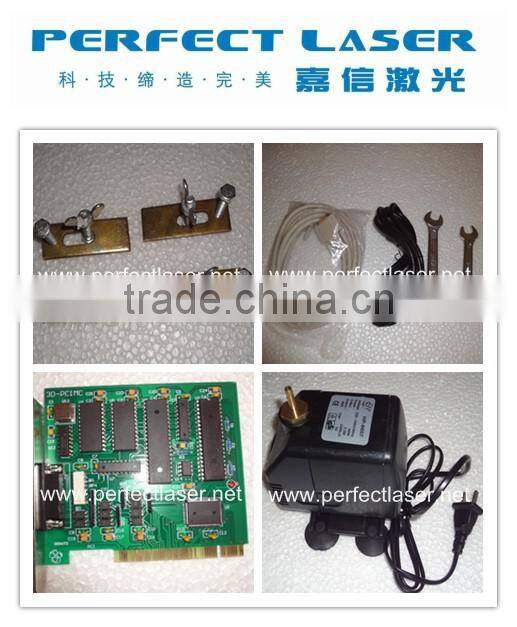

Components of Wood CNC Router:

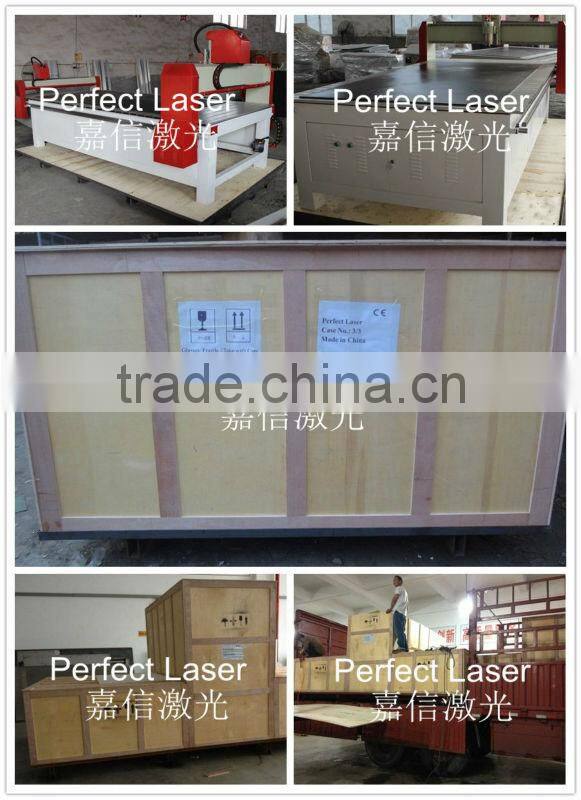

Packing Pictures of Wood CNC Router:
Except for 1200*1200mm, we also manfuacture other working area cnc routers, such as 300*300mm, 600*900mm, 1200*1800mm, 1200*1500mm, 1300*2500mm. Any interest, feel free let me know.
Before making best quotes for you, could you answer following questions:
* What's your material?(wood, acrylic, plastic, stone, metal etc)
* What's your material working area?
* Your material thickness?
* Your country port for checking shipping.
* If the price confirmed, when will you place order?
* If possible, could you add my skype or whatsapp?
Videos, pictures, samples, PDF are all available!
